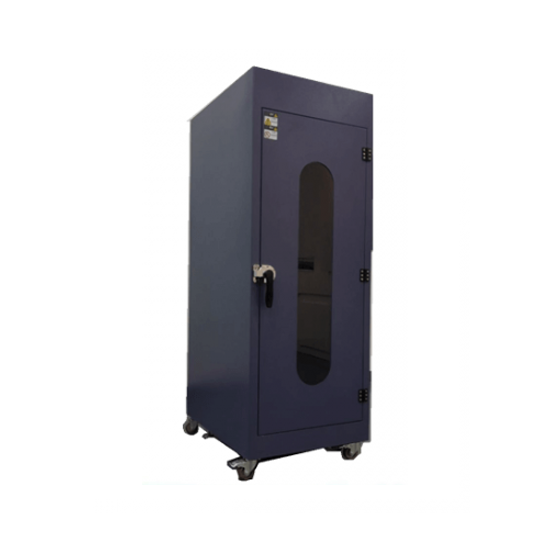

Laboratory battery drop tester with PLC touch screen

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-6001C
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Laboratory battery droping tester with PLC touch screen



Introduction

This machine is suitable for mobile phones (cell phones), cell phone lithium batteries, walkie-talkies, electronic dictionaries, building intercom phones, CD/MD/MP3, and other small consumer electronic products and parts for free fall tests.

Features

This machine adopts a pneumatic structure, the test sample is placed in a special fixture (adjustable stroke) and clamped firmly, press the drop button, the cylinder is released, the test sample will be tested in a free fall, the drop height can be adjusted up and down, and the height is attached The ruler can know the drop height of the test sample, and a variety of drop floors are available for selection, which can meet different test standards.


SPECIFICATIONS

Model

6001C

Drop height

300-1500 mm, adjustable

Test method

Face, edge, corner drop in all directions

Test load

03kg

Acceptable max. sample size

W200*D200*H200 mm

Falling floor medium

A3 steel plate (acrylic plate, marble plate, wood board for choice)

Drop panel size

W600*D700*H10 mm (solid steel plate)

Machine weight

About 250kg

Machine size

W700*D900*H1800 mm

Motor power

0.75KW

Drop method

Pneumatic drop

Lifting method

Electric lifting

Power supply

220V 50Hz

Safety device

Fully enclosed explosion-proof device

Air pressure

1mpa

Control display mode

PLC touch screen
