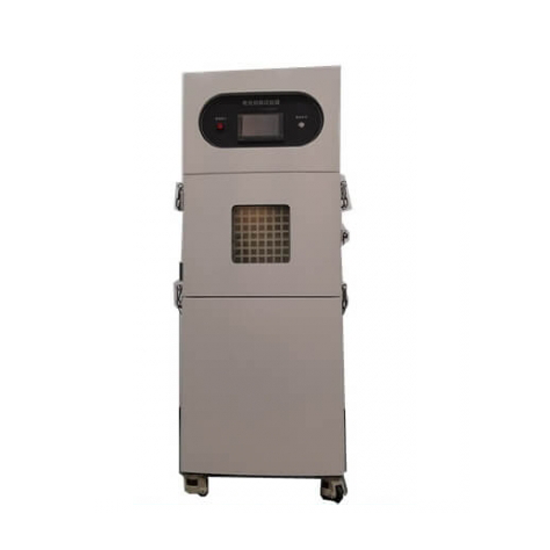

Laboratory temperature controlled battery short circuit tester



Introduction

The temperature-controlled battery short-circuit testing machine is designed according to the requirements of various battery short-circuit test standards. According to the standard, the short-circuit device must meet the internal resistance range of ≤5mΩ, so as to obtain the maximum short-circuit current required by the test; in addition, in the circuit design of the short-circuit device It must also be able to withstand the impact of large currents, so we chose industrial-grade DC electromagnetic contactors, all-copper terminals and internal copper plates for diversion. The wide and thick copper plates can effectively improve the heat dissipation effect, make the high-current short-circuit device safer, and effectively reduce the test equipment The loss to ensure the accuracy of the test data.
The short circuit tester adopts PLC automatic control to simulate the external short circuit of the battery, and meets UL1642, UN38.3, IEC62133, GB/T18287, GB/T 31241-2014 and other standards. Record battery voltage, current and surface temperature changes. The short-circuit test machine must have a resistance of 80±20mΩ across the circuit (including circuit breakers, wires and connecting devices), and each circuit can withstand a short-circuit current with a peak value of 1000A. You can choose the short-circuit stop mode: 1. Short-circuit time; 2. Battery surface temperature.

Test standard requirements

After the battery is fully charged in accordance with the specified test method, place it in an environment of 55°C ± 5°C, and place it for another 30 minutes after the battery temperature reaches 55°C ± 5°C. Then connect the positive and negative terminals of the battery with wires, and ensure that all external resistances are 80mΩ±20mΩ. Monitor the battery temperature change during the test. When one of the following two situations occurs, the test is terminated.
a) The battery temperature drops to 20% lower than the peak value; b) The short-circuit time reaches 24h.
Test result: the battery should not fire or explode, and the maximum temperature should not exceed 150℃



SPECIFICATIONS

Control method

PLC touch screen control system (with remote control)

Voltage

0-100V

Short-circuit current

0-1000A

Temperature control box

Normal temperature150℃



Battery surface temperature collection

Temperature sensor: -20℃~130℃ thermocouple

Temperature control accuracy

0.1℃

Temperature uniformity

±1℃

Temperature control explosion-proof box test space

500*500*500 mm, can be customized

Working voltage

AC 220V, 50/60Hz

Impulse voltage

AC 1kv/1.2-50μs (peak value) 1min

DC response time

≤5μs

Device internal resistance

80±20mΩ (load current 400A)

Action time

Pull-in time/release time ≯30ms

Action characteristics

Cold pull-in voltage ≯66% Us

Cold release voltage

≯30% Us, ≮5% Us

Exhaust fan

Dia 100mm exhaust pipe extends at the rear

Air supply port

There are two dia 50mm air supply ports on the left side of the box (also used to measure voltage, etc.)

Window size

300*300mm, tempered explosion-proof glass with a thickness of 20mm. A movable stainless explosion-proof steel wire screen is installed in front of the glass to increase safety performance and facilitate extraction and cleaning.

Weight

About 100Kg

Power supply

AC220V, 50/60Hz
