Battery Hydraulic Nail Penetration&Crushing Safety Tester

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-AT
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

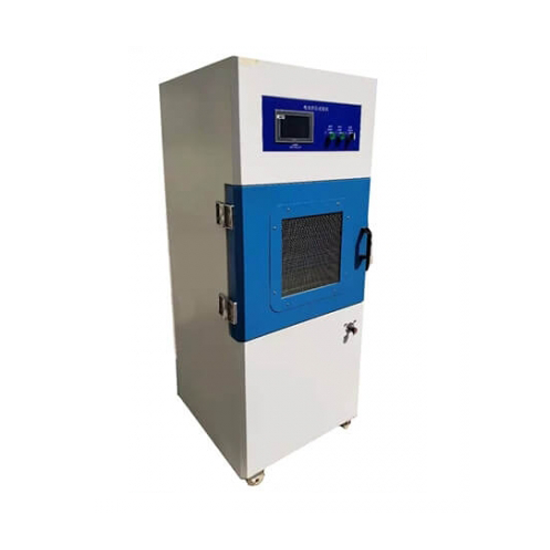

Battery Hydraulic Nail Penetration&Crushing Safety Tester



Battery explosion-proof box is mainly used for personal safety protection in battery safety performance test. In over-charge and over-discharge, charge and discharge test and other tests, the battery is placed in explosion-proof box and external charge and discharge tester. Protect operators and instruments.The battery crushing and acupuncture test machine is suitable for simulating the extrusion of batteries when they are used, transported, stored or disposed of household waste. The battery shall be qualified without explosion or fire. 10.The door is connected with the box body by a strong hinge, explosion-proof cold handle door lock


SPECIFICATIONS

Extrusion Part

 Transmission mode

hydraulic drive

Battery extrusion head (plate)

standard round extrusion plate, easy to handle and replace (size is 150 mm in diameter)

Extrusion degree

the extrusion continues until the actual pressure reaches 13kn ± 0.2kn, holding pressure for 1min. Once the pressure is reached, the equipment will automatically release pressure and complete the extrusion

Pressure range

1 kn ~ 20KN (usually 13 KN)

Pressure display accuracy

 0.1N, sensor resolution: 1 / 10000

Unit conversion

kg, N, LB

Data sampling frequency

80 times / S

Compression space

520 * 500 * 445mm (w * h * d)

Extrusion stroke

320mm

Acupuncture Part

Needle

φ2mm-φ8mm high temperature resistant steel , with a length of 100mm.

Distance between the needle tip and the lower part

200mm from the battery discharge plane

Clamping distance

10 mm

Acupuncture speed

At the speed of 10-40mm / s, it penetrates from the direction perpendicular to the battery plate (the steel needle stays in the battery)

Penetration force

500 ~ 150kg

Force display

pressure sensing LCD display

Effective stroke of oil cylinder

320mm

Driving mode

hydraulic driving

Box type

explosion-proof, fire-proof, corrosion-resistant and easy to clean.



Material of explosion-proof inner chamber

stainless steel, 1 / 3 of the box is pasted with iron fluorine soluble tape, which is resistant to high temperature, corrosion, insulation and easy to clean



Delay function

 0-99 (H / M / S can set and adjust the test time)

Power supply

AC220V, 50Hz, 13A
