Lithium Battery Assembly Machine

/

Battery Safety Analyser

/High current external short circuit tester for storage batteries up to 2000A

High current external short circuit tester for storage batteries up to 2000A

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-BE-1500A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

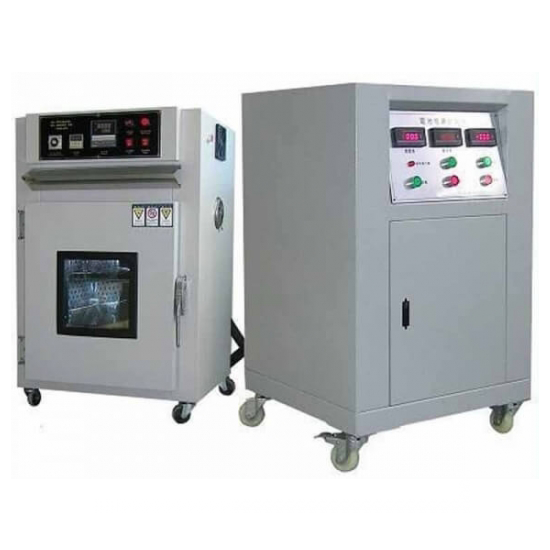

High current external short circuit tester for storage batteries up to 2000A



Short Circuit Test system designed for testing rechargeable batteries & packs under short circuit conditions with high current.




SPECIFICATIONS



Type



TMAX-BE-1500A



TMAX-BE-2000A





TMAX-BE-5000A





Short circuit current



1500A



1000A、2000A





2000A、5000A



Temperature  explosion - proof box

0~100°C can be choose

DC Response Time

≤5us

Device resistance

≤5mOhm

Remote distance

7m No solid obstacle

Short circuit time

1~9999S or 1M~99H59M can be set

Dimension

W650*D750*H950mm

Explosion-proof box size

W800*D1000*H1000mm,thickness:8mm

Power supply

AC220V 50HZ

Power

1.0KW

Weight

About330Kg
