Low temperature test chamber for lithium ion battery

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-DWCS
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

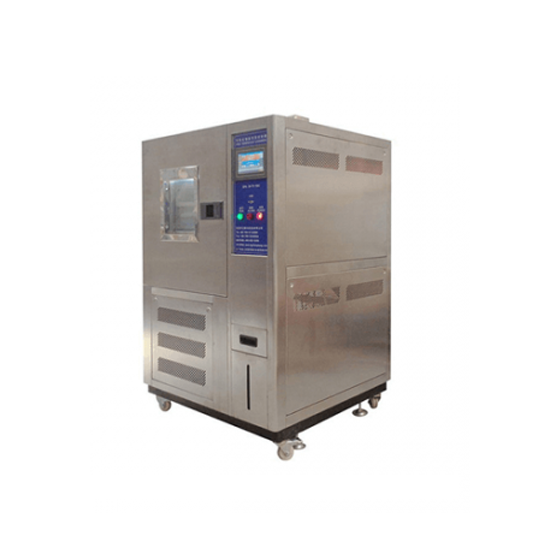

Low temperature test chamber for lithium ion battery



Introduction

This constant temperature and humidity environment test chamber can simulate various temperature and humidity environments, and is suitable for testing electronics, electrical appliances, food, automobiles, rubber, plastics, metals and other products, and meets the reliability of GB/T2423, GJB150A1/4 in various harsh environments The parameters such as the stability of the sex machine will provide you with a basis for predicting and improving product quality and reliability..


SPECIFICATIONS

Working dimensions

600*500*750(D*W*H)

Dimensions

1100*1070*1800(D*W*H)

Temperature range

-40°C to +150°C

Temperature fluctuation

≤±0.5℃

Temperature uniformity

≤±2℃

Temperature deviation

≤±2℃

Temperature rise and fall rate

Heating rate: 4℃-7℃/min (from normal temperature to the highest temperature, non-linear no-load)

Cooling rate: 0.7℃-1.5℃/min (from normal temperature to the lowest temperature, non-linear no-load)

Humidity range

20%―98%R.H (AT+25℃+85℃)

Humidity error

+2/-3%R.H (above 75%R.H), ±5% R.H (below 75%R.H)

Wind speed

1.72.5m/s

Power

About 5Kw

Power supply

110V±10%V; 50Hz
