Laboratory simulation battery high altitude and low voltage test box machine for lithium battery

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-GKDYSY
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

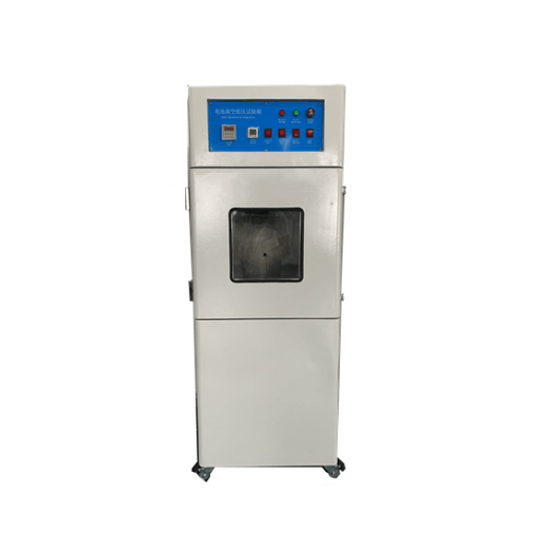

Laboratory simulation battery high altitude and low voltage test box machine for lithium battery



Introduction

Battery low voltage (high altitude) simulation test, all tested samples are tested under negative pressure of 11.6kPa (1.68psi). The final result of the test requires that the battery cannot explode or catch fire.

Features
The box inside the box is made of high-quality SUS201# stainless steel plate material,
The front door of the test box adopts a strengthened design. The left side of the door is equipped with an exposed hinge, and the right side is equipped with a strong door lock, which effectively blocks the door. The hinge and lock use strengthened equipment special standard parts.
The bottom is equipped with 4 casters, which is convenient to move and fix.
This machine adopts PID control system, which is convenient and intuitive, and can easily control each input test parameter.
Explosion-proof glass window with explosion-proof film, double protection;
A rubber sealing ring is installed between the working room and the glass door to ensure a high degree of vacuum in the box;
The vacuum value can be automatically set, and the vacuum can be automatically supplemented.

Technical parameter

Product name

Low pressure

Model number

TMAX-GKDYSY

Temperature range

Normal temperature (The requirements must be met by controlling the internal temperature of the laboratory, that is, the temperature of the laboratory must reach this range (20℃+5℃) to ensure that the temperature in the low-temperature box is within this range)

Display method

PID display

Vacuum degree

133Pa

Accuracy

0.1KPa

Adjustment range

-5 ~ -100Kpa (negative pressure gauge)

Unit

KPa

Time range

99H59M59S (can be set)

Inner box size

W400*D400*H400 mm

Inner box material

High-quality SUS201# stainless steel plate material, thickness 3MM

Outer dimension

W650*D550*H1300 mm

Outer material

SECC steel plate, fine powder baking varnish treatment, thickness of 1.5mm

Box door

Single door, open observation window, cold handle door lock

Accessibility

Safe explosion-proof:

The door is equipped with 10mm thick tempered explosion-proof glass;

Reinforced ribs are welded inside the door to make the door stronger and increase its strength

The external link hinge door lock adopts high-strength standard accessories. It is safe and easy to install and replace

Window size

300*300 mm(10mm thick tempered explosion-proof glass)

Power supply

AC 220V ± 10%, 50Hz

Power

1KW

Weight

About 200kg
