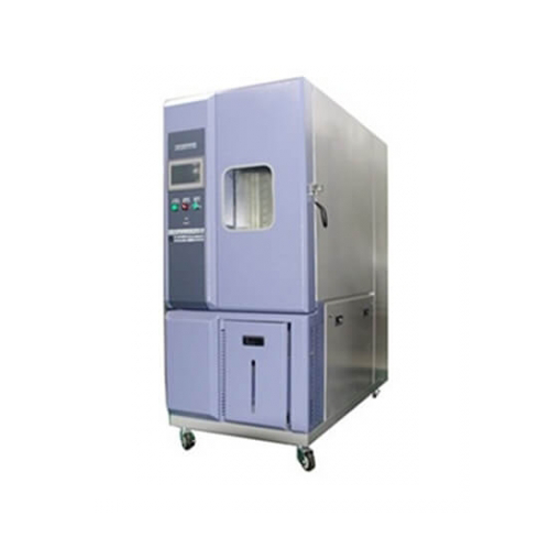

25℃~150℃ 80L~1000L Humidity And Temperature  Chamber

Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Temperature and humidity testing help to determine the behavior of the components in severe test conditions and environments that involve fluctuatingenvironment, high temperature, and different relative humidity. The tests can be done with constant temperature and humidity in a static state and can bedone in a dynamic state where the moisture is used to induce a failure of the components or materials.

Main Features
1.The constant temperature and humidity test box is mainly composed of control panel, distribution panel, insulation layer, air supply fan, heater, humidifier and refrigeration unit. The main specifications can be divided into 6 standard sizes and 10 specifications under different conditions.

2.The controller can be connected to the computer through LAN interface. Users can design programs on the computer screen, collect test data and records, call program execution, remote control machine switch and other functions.

3.The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor temperature and humidity distribution is uniform.

4.Complete safety protection device, if abnormal conditions occur, the controller screen will automatically display the fault status, cut off the power switch, and provide troubleshooting methods.

Model Available

Model	TMAX-80(A~F)	TMAX-150(A~F)	TMAX-225(A~F)	TMAX-408(A~F)	TMAX-800(A~F)	TMAX-1000(A~F)
Internal Dimension WxHxD (mm)	400x500x400	500x600x500	600x750x500	600x850x800	1000x1000x800	1000x1000x1000
Internal Dimension WxHxD (mm)	950x1650x950	1050x1750x1050	1200x1900x1150	1200x1950x1350	1600x2000x1450	1600x2100x1450
TemperatureRange	Low Temperature(A:25°C  B:0°C  C:-20°C  D:-40°C  E:-60°C  F:-70°C)  High Temperature 150°C
HumidityRange	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
Analytic Accuracy/ Distribution uniformity of temperature and humidity	0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.

A.Testing Parameter

Temperature range	25℃～+150 ℃(Air-cooled type) Can be customized to below 0℃

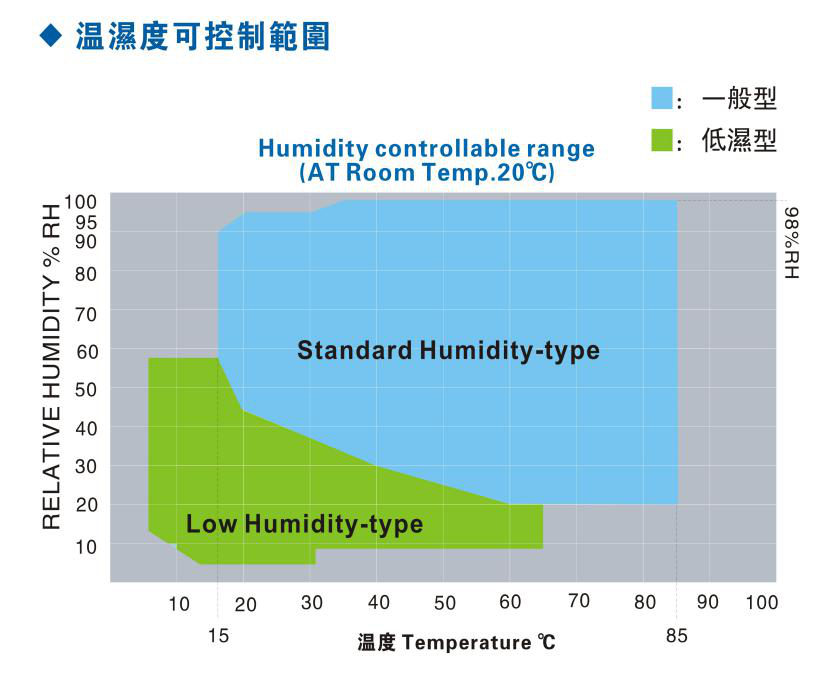

Humidity range	20%-98% RH (the distribution range is as follows)
The cooling rate (no-load)	About 1℃/min
The heating rate (no load)	About 3℃/min
Temperature stability	±0.5℃
Analytical accuracy of temperature	0.01℃
Precision of humidity control	±2%R.H
Temperature uniformity	±2.0℃
Humidity uniformity	≤±3%R.H（+2、-3%RH）
Working noise	A sound level is less than 75 dB (A) (measured in a soundproof room with 25 C ambient temperature and less echo; measured the average value of 8 points by A weighting; measured the level of each test point is 1 metre from the noise source and the height is 1 metre from the ground).

B.Machine Structure

C.Safety Protection System

D.Refrigeration system
