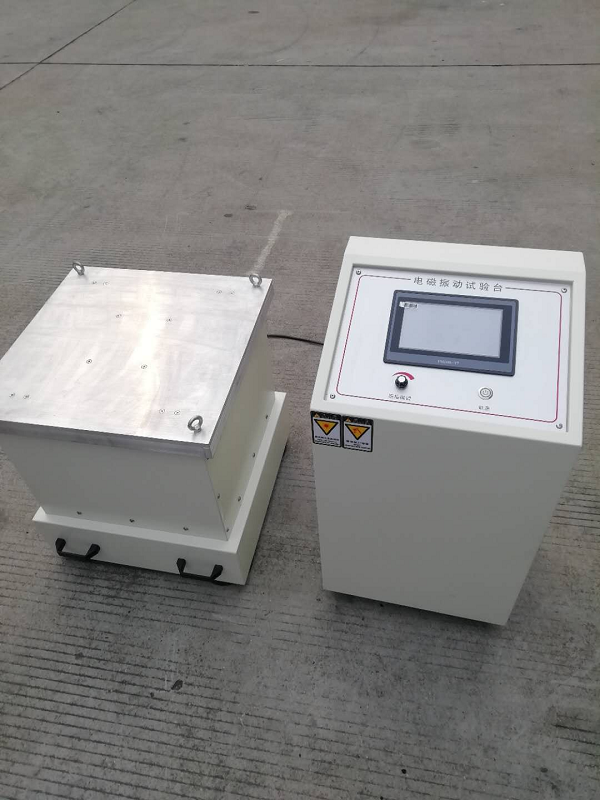

Battery Vibration Testing Bench for Performance and Durability

I. Product Overview:

This testing machine is designed according to relevant battery testing standards. It simulates the testing of batteries under specific vibration frequency conditions. The battery or battery pack is fixed on the vibration table and vibrates in three perpendicular directions at the specified battery frequency mode. The battery is considered qualified if it does not leak, release gas, rupture, catch fire, or explode. The machine is easy to install, simple to operate, low noise, easy to maintain, with no resonance structure, and features a well-designed airbag shock-absorbing pad to effectively isolate vibrations.

II. Compliance Standards:

GB/T31241, GB/T18287, GB31485, GB31467.3, IEC62133, UL2045, UL1042, UN38.3, QC/T743, QC/T744

III. Product Parameters

Vibration Table Size	L500×W500×H10mm and L500×W500×H200mm
Vibration Directions	Vertical (Y axis), Horizontal (X axis)
Maximum Test Load	0 to 100 kg / Maximum excitation force: 2000 Kgf within the range
Frequency Modulation Function	Arbitrary adjustment from 1 to 600 Hz. The frequency within the range cannot exceed either of the following two: · Maximum acceleration < 20G · Maximum amplitude < 5mm
Frequency Sweep Function	Arbitrary adjustment from 1 to 600 Hz. The upper frequency band/lower frequency band/time range can be freely set to achieve true standard sweep.
Vibration Machine Power	2.2 kW
Amplitude	Arbitrary adjustment of amplitude from 0 to 5mm
Maximum Acceleration	Arbitrary adjustment of maximum acceleration from 0 to 20G (200 m/s²)
Vibration Waveform	Sine wave (half-wave/full-wave) / Maximum sine wave excitation force: 2000 kgf
Time Control	Adjustable time (unit: seconds)
Precision	Frequency display accuracy: 0.01 Hz, precision: 0.1 Hz
Cooling Method	Natural air cooling
Temperature	-10°C to +60°C
Humidity	10% to 90%
Noise	≤60 decibels
Power Supply	220V, 50/60Hz
