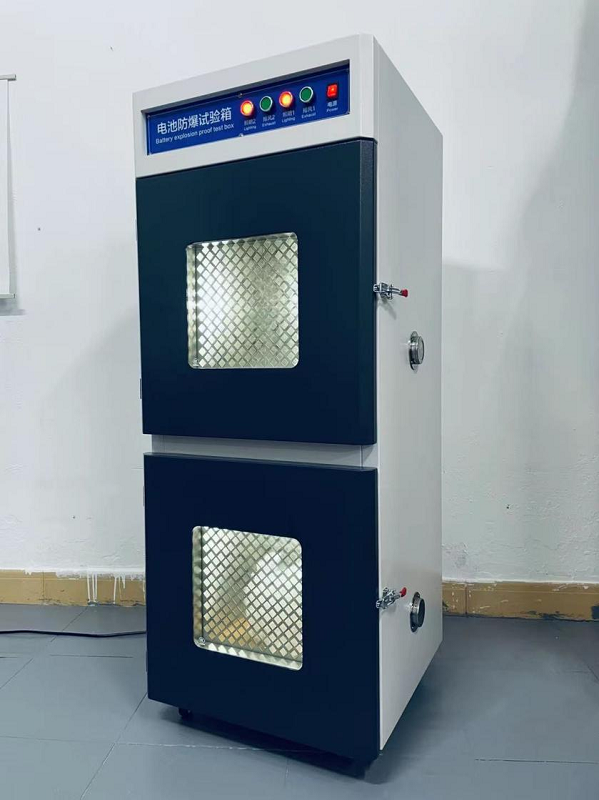

Battery Explosion-Proof Testing Chamber





I. Product Overview:

This test machine is primarily used for overcharge and overdischarge tests on batteries during charge and discharge testing. The battery is placed inside an explosion-proof box, which is connected to an external charge and discharge testing device, providing protection for both the operators and the instruments.



II. Product Parameters

Inner box dimensions

500x500x500mm (LxWxH)

Layers

2 layers (customizable), the interior of the box is lined with Teflon tape for effective insulation and flame retardancy

Box material

Stainless steel inner box, cold-rolled steel plate with paint treatment for the outer box

Door

Single-opening double-layer door with silicone strips and a transparent observation window

Test hole

50mm in diameter, located at the rear of the box for easy passage of test connection wires

Exhaust fan

Located at the rear of the box, with an exhaust interface for easy smoke ventilation

Lighting device

High-brightness explosion-proof lighting

Safety features

The door is connected to the box with strong hinges and uses an explosion-proof cold pull handle door lock
