Sodium Ion Battery Automatic Double Working Station Stacking Machine
I. Function overview

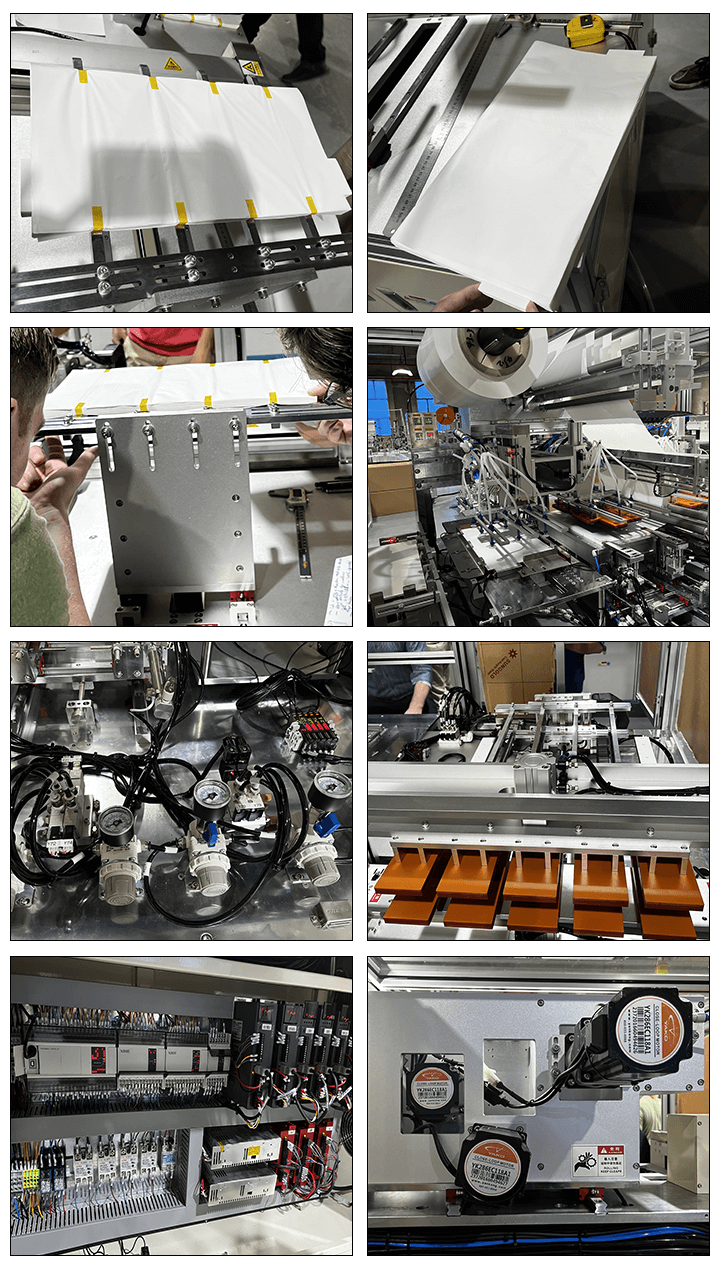

The seperator is actively unwound and introduced to the stacking table through the tension mechanism; the stacking table drives the diaphragm to move back and forth to place the pole pieces; the positive/negative pieces are stacked first and two sets of robotic suction cups take the positive and negative pieces out of the two boxes on the left and stack them on the stacking table after precise positioning; after the stacking is completed, the seperator is cut off and the cores are transferred to the gluing station by the robots for automatic gluing; at the same time, the automatic stacking of the next core begins .
II. Basic parameters
1. Size: 2100mm (L) × 2350mm (D) × 1877mm (H) ；
2. Power supply: 220V 50HZ
3. Air source: 0.5MPa
4. No corrosive gas, liquid or explosive gas
5. Color: Supplier's standard color sample (international warm gray 1C)
III.Technical parameter
1. Applicable specifications: length L370 ~ 550, width W 80 ~200mm , thickness H 8 ~ 30mm;
Tab length Q ≤ 30mm
2. Equipment speed : 2.0 ~ 2.3S/pcs;
3. Alignment accuracy of pole piece and seperator: center deviation ± 0.3mm;
4. Dust protection: the material box and pre-positioning are equipped with effective dust protection mechanism;
5. Reliability: positioning pins are fixed on the high-precision and frequently moving modules of the equipment
6. Multi-piece leakage protection: ultrasonic detection of multiple pieces can effectively prevent multiple pieces from overlapping into the core .
7. Detection of the missing angle of the pole lug of the pole piece to prevent the pole piece from falling into the core due to the pulling of the tab and the missing angle.
