Small Auto Vaccum Carbon DC Sputter Coater

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com

  • Item NO.:

    TMAX-BY-JS10

  • Payment:

    L/C D/A D/P T/T Western Union

  • Shipping Port:

    Xiamen Port

  • Lead Time：

    5 days

  • Certificate:

    CE Certified
Inquire Now
  • Product Detail

Small Auto Vaccum Carbon DC Sputter Coater



Model: TMAX-BY-JS10 – Product Specifications

1. Technical Specifications Table

Parameter Specification
Model Number TMAX-BY-JS10
Vacuum Pump Oil-required Rotary Vacuum Pump (Explicit oil filling needed)
Pumping Speed 50Hz: 16 m³/h (4.4 L/s) • 60Hz: 19.2 m³/h (5.2 L/s) • 20% speed boost at 60Hz
Ultimate Vacuum 2 Pa
Max Sputtering Current 1.6A
Operating Pressure Range 20 Pa – 8 Pa
Pump-Down Time <5 min (to 2 Pa)
Vacuum Measurement Range Atmospheric pressure to 2×10⁷ mbar
Gas Control System Precision Gas Flow Controller
Chamber Specifications Ø350 × 240mm (H) • Scratch-resistant quartz glass viewport
Target Specifications Ø200mm • Materials: Au, Ag, Pt, Cu (noble/conductive metals)
Operation Instruction manual guided
Dimensions/Weight 490(L) × 400(W) × 590(H) mm • 70 kg
Power Requirements Dual-voltage: AC 110V/60Hz (Americas) or AC 220V/50Hz (Europe/Asia)
Power Consumption <1500W
Warranty & Support 1-year limited warranty + lifetime technical support

2. Key Features & Competitive Advantages

Precision-Oriented Design

  • Dual-Frequency Pumping: Automatically adapts to 50Hz/60Hz power grids (19.2 m³/h vs 16 m³/h) for global compatibility.
  • Scratch-Resistant Quartz Viewport: Ensures long-term visibility during deposition without degradation.
  • Oil-Lubricated Vacuum Pump: Delivers stable 2 Pa base pressure (vs. dry pumps), critical for consistent thin-film quality.

Material Versatility

  • Broad Target Compatibility: Supports Au/Ag/Pt/Cu targets for conductive/noble metal coatings.
  • Rapid Process Setup: <5-minute pump-down enables efficient batch processing.

User-Centric Engineering

  • Global Voltage Support: No external converter needed for 110V/220V operation.
  • Compact Footprint: Benchtop design (0.49×0.4×0.59m) saves lab space.

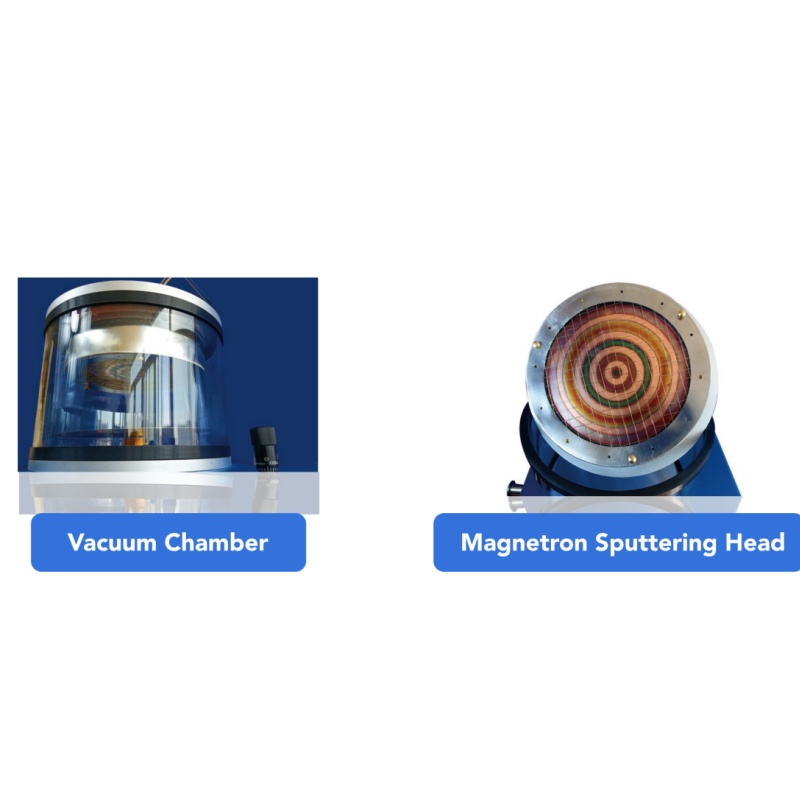

Carbon Coater

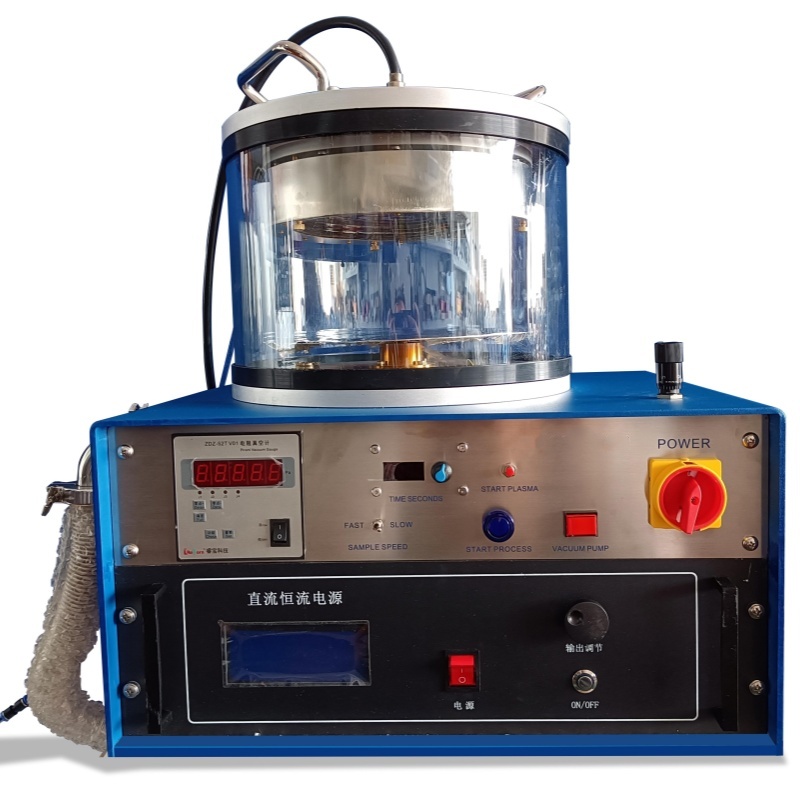

Carbon Coater
