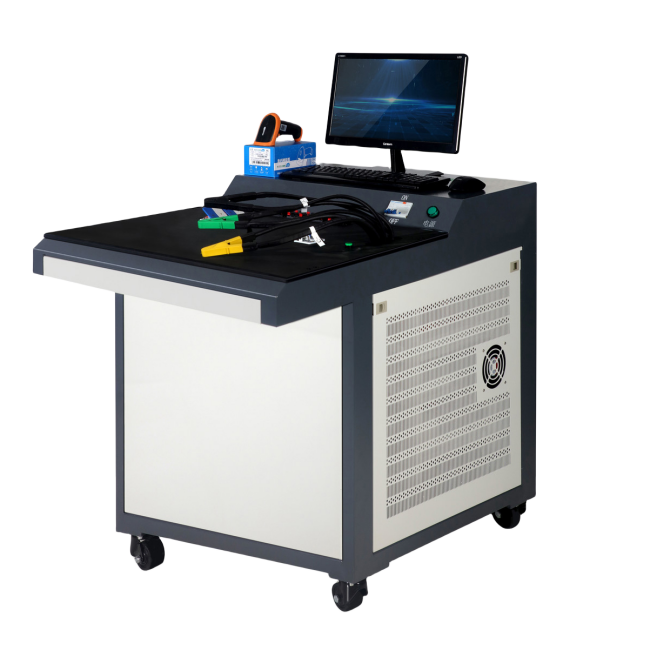

Power Battery Protection Board Tester BMS Testing Machine


Ⅰ、Application scope

This device is suitable for:

Detect the various functional indicators and parameters of the power battery protection board, suitable for testing lithium iron phosphate battery boards, ternary battery boards, sodium batteries, and solid-state batteries.






Ⅱ、Product Features

1It has multiple performance tests, including overcharging, overcharging recovery, over discharging, over discharging recovery, over current, internal resistance, self consumption, short circuit protection, overcharging protection time, over current protection time, over discharging protection time, etc.

2Fast testing speed and high testing accuracy. It only takes about 4 seconds to quickly test a board.

3Equipped with powerful peripheral software, through the industrial control standard 232 interface, you can collect instrument data, save data, and print data at any time, allowing you to use it with or without a computer connection.

4Support scanning code testing to search for data.

Customizable: ① MES system connection function; ② Active balancing function;

③ 485 communication function; ④ NTC testing; ⑤ Switch action function




Ⅲ、Technical Parameter

Product name

Power battery protection board tester

Overdischarge current protection value

0-500A±0.1

Continuous long-term discharge

Model

TMAX-TGD-BP8858

Overcurrent protection delay

0-10S+1mS

Chassis size

Desktop:

H215mm

L539mm

W439mm

Cabinet:

H1195mm

L990mm

W670mm

Short circuit protection

400A

The maximum sustained 10mS

Equipment weight

Desktop≈25KG

Cabinet type≈156KG



Short circuit delay protection

0-10000uS±1uS

Operating ambient temperature

1-50°

Temperature protection

-20°℃ ~100°℃

Input power supply

AC220V±15%

Balance function, turn on voltage

0-5V ±1mV

Overcharge protection/protection release

0-5V ±1mV

Main circuit internal resistance test

0-1000mΩ±0.1mΩ

Overdischarge protection/protection release

0-5V ±1mV

Equalizing current

0-1000mA±1mA

Overcharge current protection value

0-500A

Total self consumption test

0-10000uA±1uA





Single section self consumption

0-100uA±1uA
