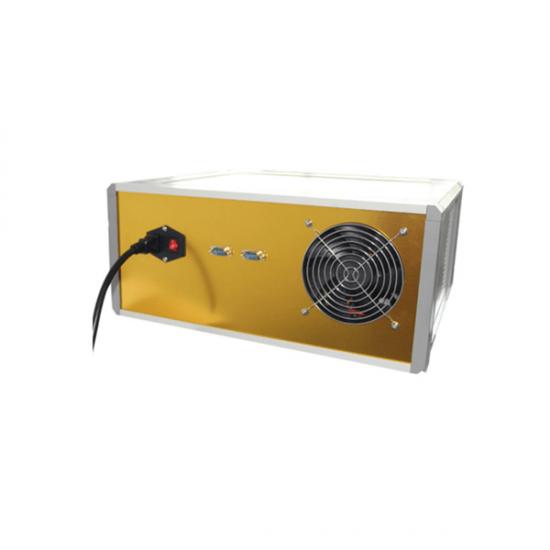

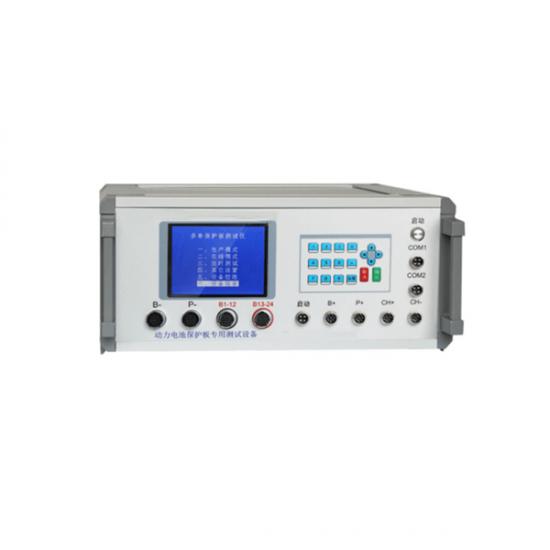

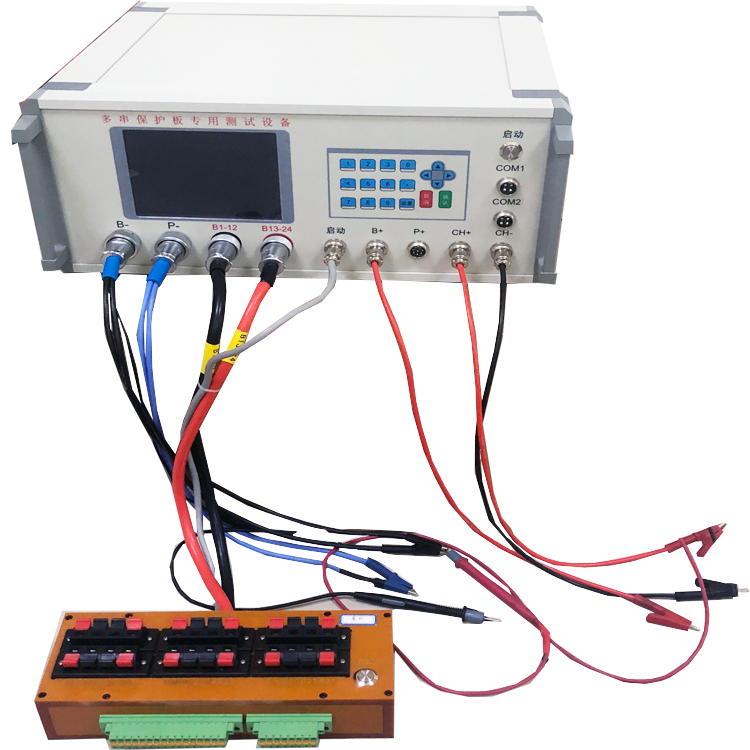

1-24/32 Series 150A Battery Protection Board Testing Machine BMS Testing Device

Feature:

It is mainly used to detect whether the functional indicators of the power battery protection board are within the parameter range, so as to provide a set of detection standards for the staff. It is mainly used for testing power battery protection board of protection board manufacturer and power battery manufacturer.

Function:

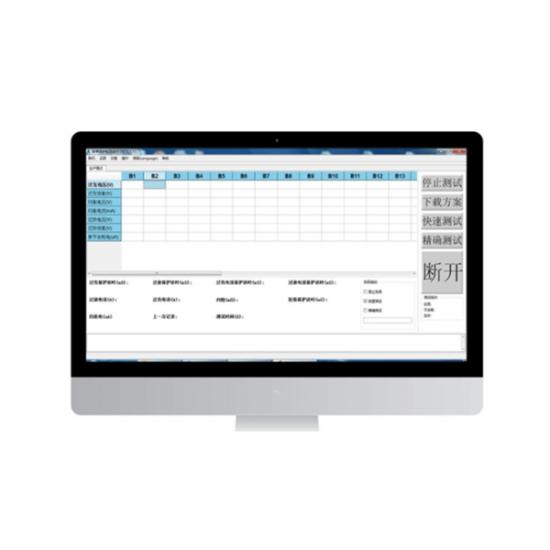

The protection board test system is divided into two types: Fast Test and Precise Test

Precise Test:It can accurately detect the precise values of various functional parameters of the power battery protection plate (the error is 5mv), which is convenient for the debugging and development of the sample, and provides a set of standards for rapid detection for the R&D personnel.

Quick Test:According to the design parameters of the protection board, the test parameters are set to carry out the rapid test, which is convenient for the protection board manufacturers and power battery manufacturers to carry out large-scale rapid test and shipment. At the same time, it is suitable for the protection board test of various hardware schemes and some software schemes.

Performance:

Routine Test Items:

Internal resistance test, overcharge and overdischarge test, overcharge recovery, overdischarge recovery test, over-current test (charging and discharging over-current), overcharge protection voltage, overcharge recovery voltage, over discharge protection voltage, over discharge recovery voltage, over-current protection, etc.

Special Test Items:

Short circuit protection test (refers to the real short circuit protection test microsecond level).

Single section self consumption test (refers to the true and accurate self consumption of each section).

Equalizing current and equalizing voltage (it can accurately grasp the equalizing current and equalizing opening voltage).

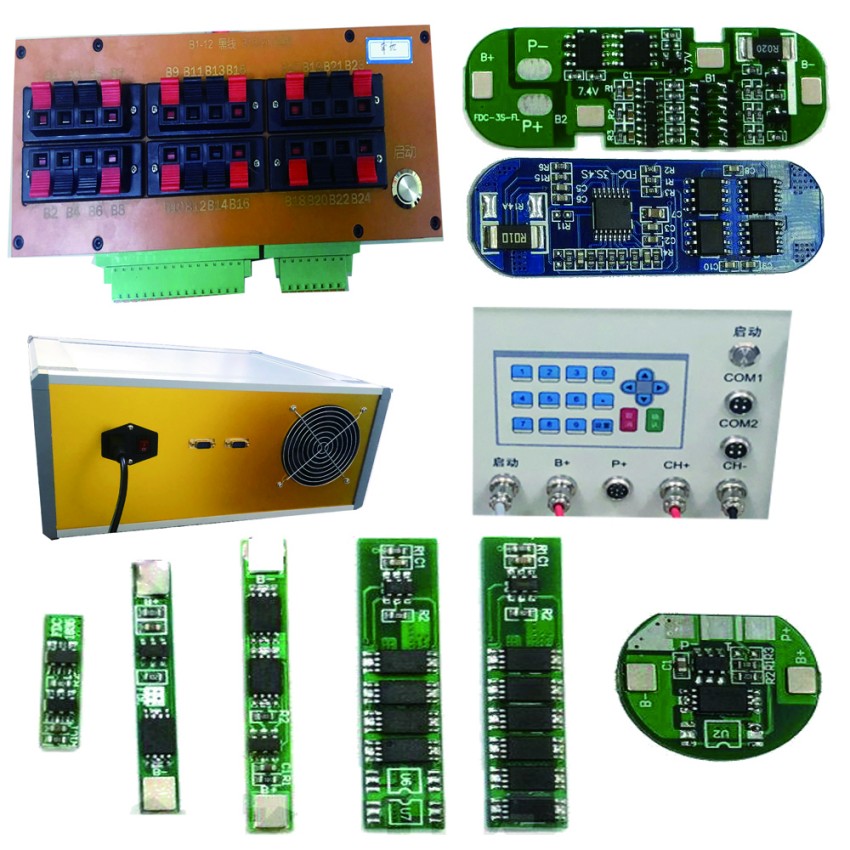

Types of Protection Boards Supporting Testing:

LiFePO4, LiCoO3, LiMn2O4

Specification:

High Current Module:The current level is 150A and the current accuracy is 0.1A.

Voltage Module:Voltage range 0.5-5V, programmable output 0.5-5V, voltage precision 5MV.

Short Circuit Module:Super capacitor, fully simulate pack battery voltage, short circuit protection board instantly, accurately capture short circuit time and current.

NO.	Items	Measuring Range	Accuracy
1	Number of test strings	1-32
2	Reference voltage	LiCoO3(3.8V)   LiFePO4(3.0V)
3	Overcharge protection voltage	0.5-5V	±5mV
4	Over discharge protection voltage	0.5-5V	±5mV
5	Overcharge recovery voltage  (self recovery)	0.5-5V	±5mV
6	Over discharge recovery voltage  (self recovery)	0.5-5V	±5mV
7	Overcharge protection current	1-40A	±0.1A
8	Over discharge protection current	1-150A	±0.1A
9	Balanced opening voltage	0.5-5V	±5mV
10	Balanced real time current	0-1000mA	±1mA
11	Over current protection delay	0-15S	±1mS
12	Overcharge protection delay	0-20S	±1mS
13	Over discharge protection delay	0-20S	±1mS
14	Single section self consumption	0-500uA	±1uA
15	Loop internal resistance	0-500mΩ	±1mΩ
16	Short circuit protection  (more than 6 strings)	0-9999us	±1uS
Scope of Application:All hardware scheme protection boards and some software boards on the market (special test items need to be communicated)
