Automatic Wire Wedge Bonder For Cylindrical/Prismatic Battery Pack Module Production Line

Ⅰ、Product description:

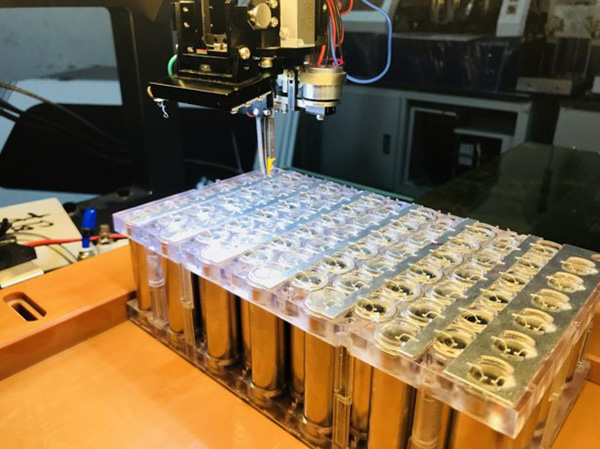

After the battery module assembly process is completed, it is loaded by the automatic feeding system of the ultrasonic welding equipment & Al wire bonding machine, and then transferred to the ultrasonic welding area, and the welding head system performs ultrasonic welding according to the set welding parameters and positions. After the ultrasonic welding is completed the battery module is transferred to the designated position through the automatic feeding system, and the equipment operator takes the welded battery module away and sends it to a next production process processing.



Ⅱ、Features:

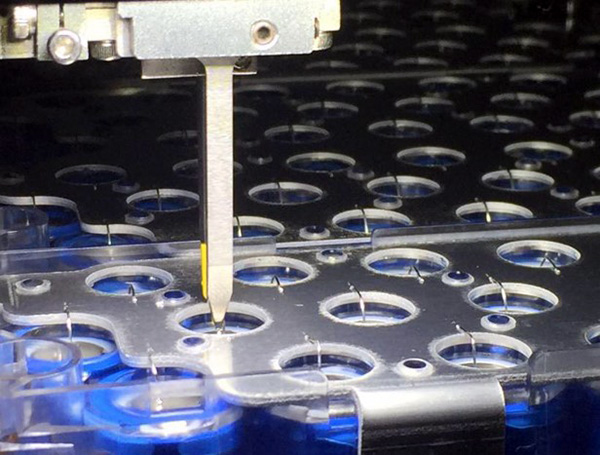

1. Lead connection process, bonding aluminum wire can directly act as a fuse, and will automatically fuse in the event of a short circuit to ensure the safety of the battery pack.

2. The aluminum wire can match the stress requirements and tensile test requirements of the battery pack on the connection.

3. The use of aluminum wire bonding can achieve repeated welding, greatly improving the maintainability and recovery rate.

4. When using aluminum wire welding or aluminum strip welding, the temperature of the welding zone will not rise. Other traditional welding methods require heating to melt the metal.

5. Al wire bonding is a clean welding process. There are no flux residues or molten metal slag, avoiding reliability problems.

6. The battery pack welding quality inspection machine can accurately and quickly detect whether there is a problem with the connection between the battery and the busbar.

7. It is easy to detect if welding defects occur during aluminum wire welding, and it is easier to repair the defective positions without welding damage.



Ⅲ、Scope of application:

The fully automatic wire wedge bonder is suitable for the lithium-ion battery pack production for the lead connection between the battery cell and the busbar, and the sampling connection of battery cell status.

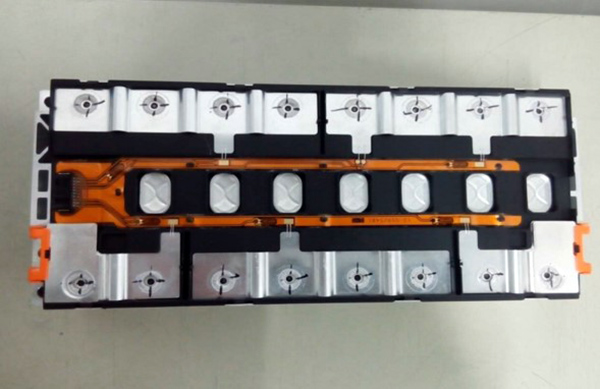

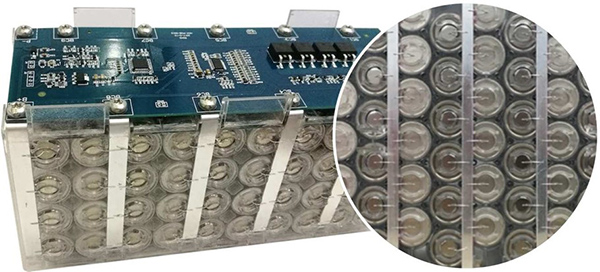

It has applications in cylindrical battery packs, prismatic battery packs and pouch battery packs.



 Ⅳ、Specification:

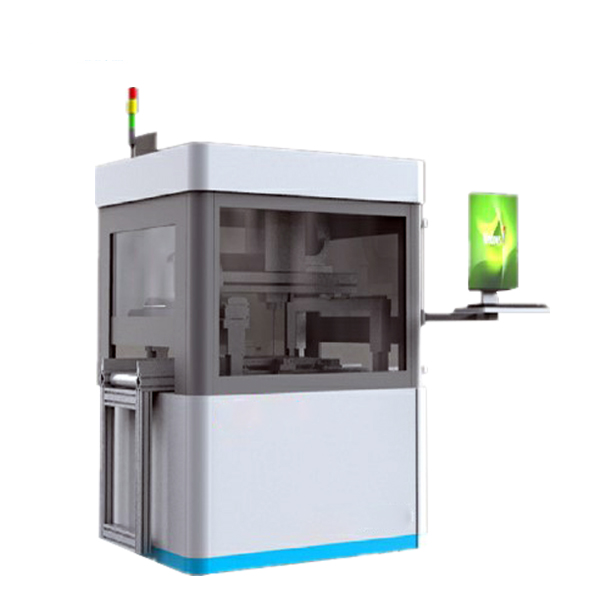

Product name	Fully Automatic Wire Wedge Bonder
Product model	TMAX-UW-3000XK
Input voltage	220V, 50/60Hz
Power	3000 W
Input gas source	0.5MPa
X-axis travel	400MM (Customizable)
Y-axis travel	800MM (Customizable)
Z-axis travel	60MM (Customizable)
Rotary-axis	±220°(Resolution: 0.08°)
Transducer	60KHz (Customizable)
Heavy wire welding head	Rotatable, standard front cutter
Welding pressure	50~1500 grams
Maximum arc height	40 mm
Wire feeding system	Motor controlled wire feeder with optical encoder
Minimum wire feeding length detection	2 mm wire feeding
Aluminum wire diameter	125~500μm
Aluminum wire coil size	Outer diameter: 50~120mm
	Inner diameter: 10~11mm
	Width: 22~45mm
Display	17-inch color display
Visual system	Image recognition system
Communication method	IO communication, network port communication
Size(L*W*H)	1300*1300*1650mm
Net weight	500KG
