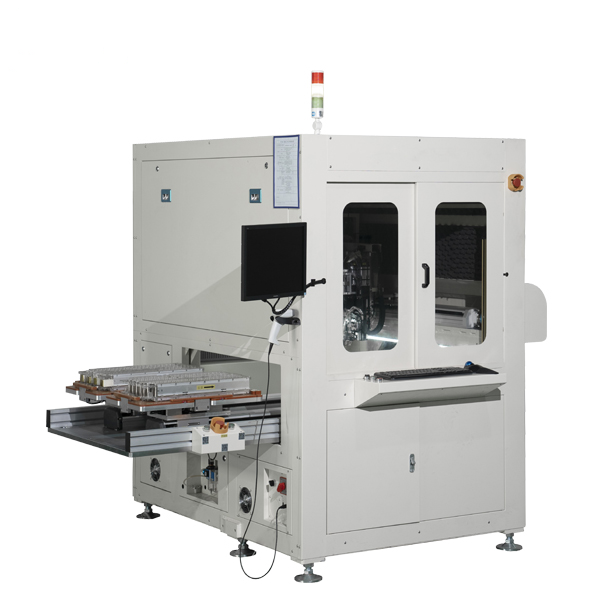

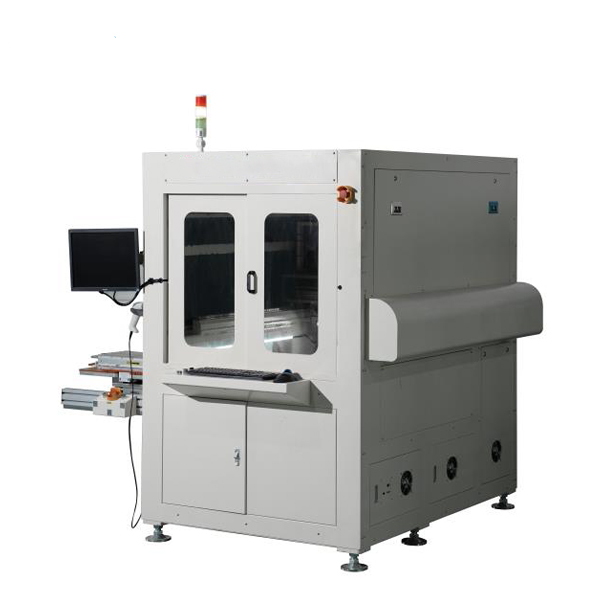

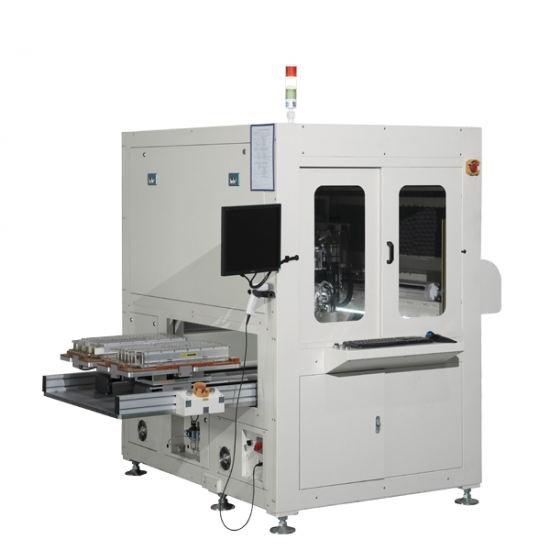

Automatic Lithium Battery Pack Welding Quality Inspection Machine

Ⅰ、Product description:

The lithium-ion battery pack welding quality inspection machine is used to detect fake welding and missing welding of battery packs, and provides guarantee for the quality of battery pack welding.

Ⅱ、Features:

1. Fully automatic detection, recording the data of each battery cell, greatly reducing the false detection and missed detection caused by manual detection.

2. Adopting modular design, it has good expansion flexibility and maintenance convenience.

3. The use of high-reliability hardware circuit design, high-frequency sampling technology and advanced digital control technology platform can ensure high-precision output and high stability, thereby ensuring test quality and data reliability.

4. Centralized control by the host computer, real-time monitoring of equipment operating status.

5. The server and MES system can be connected, which makes it easier to collect product test data.

6. The system uses self-developed test pins and high-reliability hardware circuit design to ensure stable and reliable test connections, thereby ensuring test quality and data accuracy, and providing effective guarantees and comprehensive data support for the reliability of battery modules.

Ⅲ、Scope of application:

This battery pack welding quality inspection machine is suitable for the rapid inspection of the welding reliability of lithium-ion battery packs of ultrasonic welding equipment & Al wire bonding machine, including 18650 battery module and 21700 battery module.

Ⅳ、Specification:

Brief introduction of the battery pack inspection equipment
