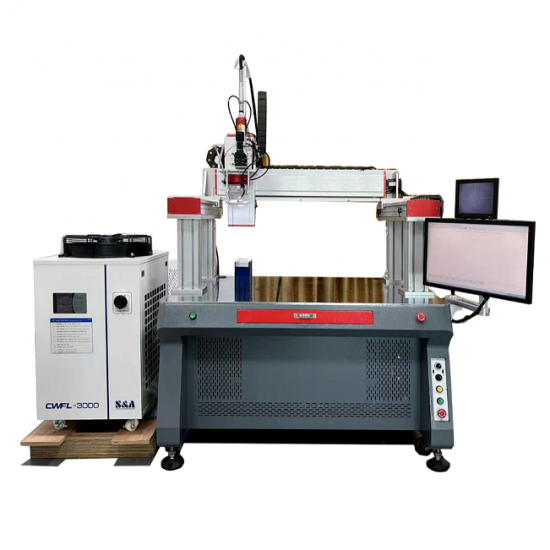

1500W 3000W 6000W Gantry Type Continuous Galvanometer Laser Welding Machine

I.Equipment adaptation range

Copper, aluminum, iron, nickel, or their alloy metal welding, especially suitable for the welding process of aluminum bars or nickel to nickel connections in Prismatic batteries.

II.Equipment Overview

The TMAX-ZW-J860 gantry continuous galvanometer laser welding machine adopts internationally advanced fiber laser as the laser source, combined with our company's independently developed, designed, and manufactured gantry machine tool, which has good rigidity and stability; Operated with precision guide rail transmission, equipped with high response servo motors, high precision and fast speed; Mainly aimed at the welding of aluminum copper bar connectors for prismatic cell lithium battery PACK groups, as well as the welding of other hardware connectors.

III.Functional characteristics

● Paired with high-power fiber continuous laser, it has sufficient power, fast speed, high accuracy, and stable welding quality.

● It can support up to 6-axis motion control, adapt to automation needs in various occasions, and can be connected to automatic lines or operated independently.

● Equipped with a high-power galvanometer welding head, it can be used in conjunction with the XY gantry motion platform to facilitate the welding of various complex graphic trajectories.

● Specialized welding control software, welding process experts, comprehensive data saving and calling functions, with powerful drawing and editing graphic functions.

● Equipped with a CCD monitoring system, it is easy to debug and can monitor welding quality in real time.

● Equipped with a red light positioning system, it can quickly locate the welding position and focal length of the product, which is simple, convenient, and easy to use.

● A powerful water cooling circulation system can keep the laser welding machine in a constant temperature state, improve welding quality, and extend the machine's service life.

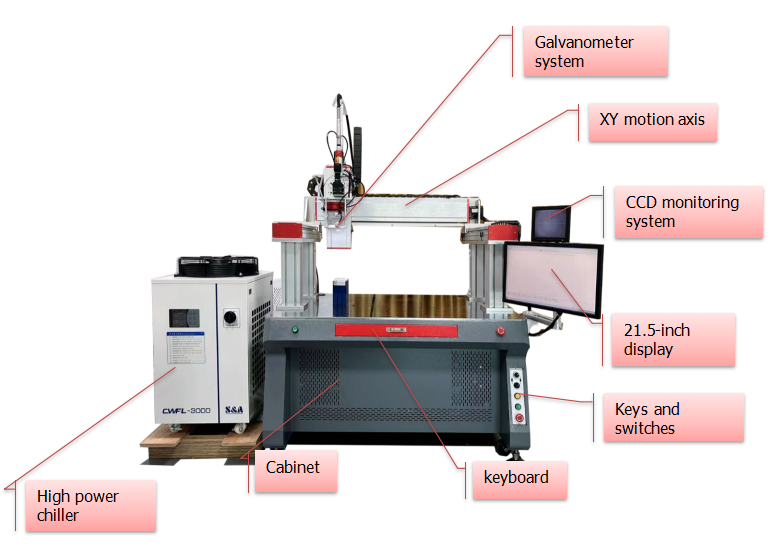

IV.Equipment structure

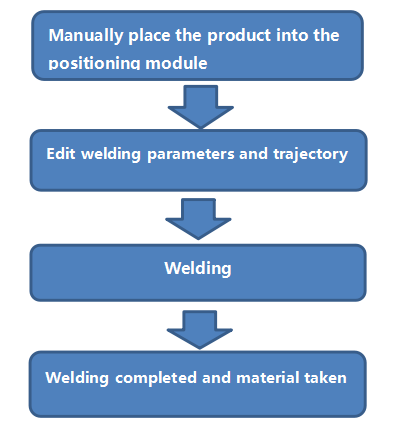

V.Workflow

VI.Technical Parameter

Specification and model	1500W		2000W	3000W	4000W		6000W
Laser output power	1500W		2000W	3000W	4000W		6000W
Power of galvanometer welding head	1500W		2000W	3000W	4000W		6000W
CCD	1.3 million images, anti flash
Wind knife	Single layer wind knife			Double layer wind knife
Chiller	1.5P		2P	3P	4P		6P
X stroke	800mm				1000mm
Y stroke	600mm				800mm
Z stroke	400mm				400mm
Repetitive positioning accuracy	±0.02mm
Fiber optic cable length	10m	15m				20m
Laser wavelength	1070nm
Output method	QBH
Cooling method	water-cooling
electrical machinery	400W servo motor
working voltage	AC220V 50/60Hz			AC380V 50/60Hz
Reference dimensions	L*W*H=1450*1050*2050mm				L*W*H=1700*1280*2050mm
Overall weight	350KG				450KG

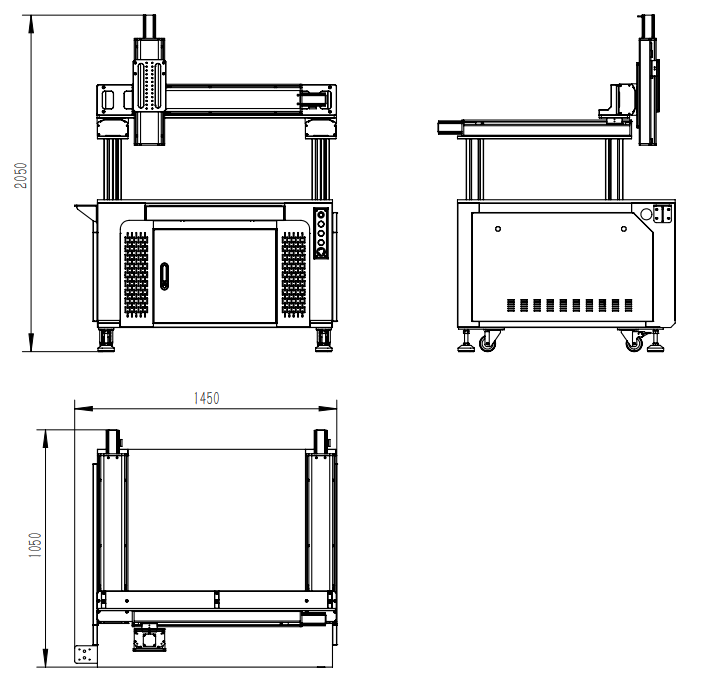

VII.External dimension diagram

VIII.List of Key Components

Key component names	Brand	Place of origin
laser	Chuangxin	China
Galvanometer system	Zhibo Tech	China
Water-cooled chassis	Special domain	China
control system	TMAX	China
servo motor	Xinjie	China
drive	Xinjie	China
display	Philips 21.5 inches	China
Industrial computer	Jianuo	China
solenoid valve	stars	China
cylinder	stars	China
Photoelectric sensor	Omron, Huayifeng	Japan/China
Lead screw	TBI	Taiwan
Guide rail	Jieyin	Taiwan
