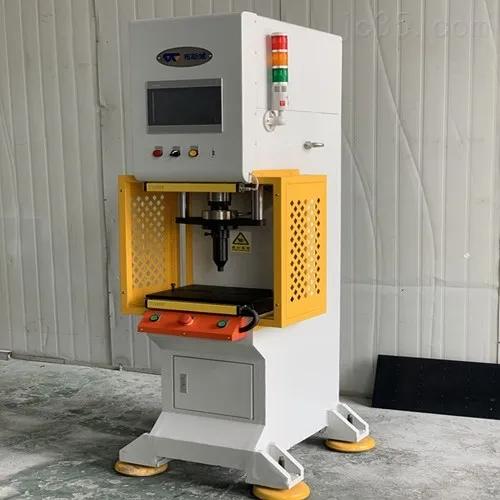

1T Pressure Controlled Servo Press Equipment For Electrolytic Bath

Item NO.:
TMAX-BSW08-1T
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

1T Pressure Controlled Servo Press Equipment For Electrolytic Bath

Introduction
The main approach is to use a servo press, which can precisely control the pressure level. The input is made through a touch screen, allowing you to set the desired pressure. The speed can be either fast or slow.
The most important point is that the press-fitting process can maintain a constant pressure for an hour or even longer.

Features
The main functions of the fuel cell electrolytic cell servo press equipment
Precise position control
Precise pressure control
Display pressure and position online
The press-fitting process can maintain pressure, keep the pressure constant, and multiple press-fitting stages can be set

Technical parameter

Model		BSW08-0.5T	BSW08-1T	BSW08-2T	BSW08-5T	BSW08-10T	BSW08-20T
Nominal pressure(T)		0.5	1	2	5	10	20
Surface height(E) mm		850	850	850	850	850	850
Maximum opening distance(H)mm		300	350	350	400	500	500
Deep throat(s) mm		150	150	175	200	225	250
Maximum stroke mm		200	200	200	200	200	200
Workbench size	Left and right (L) mm	400	400	400	500	550	600
Workbench size	Before and after (W) mm	300	300	350	400	450	500
Speed	Rated load speed mm/s	≤160	≤160	≤160	≤100	≤100	≤100
Speed	Working speed mm/s	≤35	≤35	≤35	≤35	≤35	≤35
Main frame size mm		600x700x1800	650x750x1950	650x850x2100	680x950x2300	850x1000x2500	950x1100x3200
Power KW		0.75 Kw	1.3 Kw	3Kw	4.4 Kw	7.5 Kw	15 Kw
