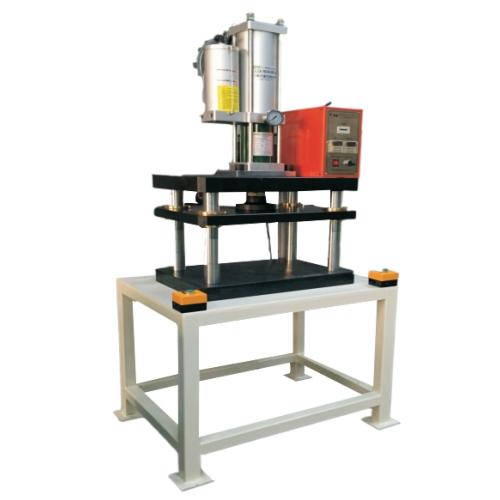

5T Laboratory Pneumatic Booster Stamping Press Equipment For Electronics Press Fitting

Item NO.:
TMAX-BSW02-5T
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

5T Laboratory Pneumatic Booster Stamping Press Equipment For Electronics Press Fitting

Introduction
Pneumatic press, powered by compressed air, suitable for press fitting of electronics,instruments, instruments cameras, jewelry, hardware, cutting, punching, blanking, forming, bending, thinning, stripping, coiling, Riveting and other processes; suitable for processing of non-ferrous metals.

Features
1. Compressed air is used as the power source for easy operation.

2. There is no noise generated when the hydraulic system is in standby, and there is no environmental pollution,which can save power consumption and reduce production costs.

3. The closing height can be adjusted according to the size of the product or mold.

4. The cylinder stroke is adjustable, the special stroke can be customized, and the maximum opening height can be customized.

5. The output adjustment is easy. lt is simple and convenient to adjust the pressure and pressure to achieve the required pressure.

6. Safe design, comfortable operation and humanized consideration, suitable for long-term operation.

7. lf you need to quickly drop during operation, you can choose a quick exhaust valve.

Technical parameter

Model		BSW02-3T	BSW02-5T	BSW02-10T	BSW02-20T
Nominal pressure(T)		3	5	10	20
Maximum working pressure of liquid(Mpa)		0.7	0.7	0.7	0.7
Maximum opening distance mm		300	300	300	400
Fast stroke (mm)		150	150	150	150
Turbo charged stroke		20	20	20	20
Workbench size	Left and right mm	400	400	500	500
Workbench size	Before and after mm	300	300	400	400
Height of machine mm		1600	1650	1750	1800
