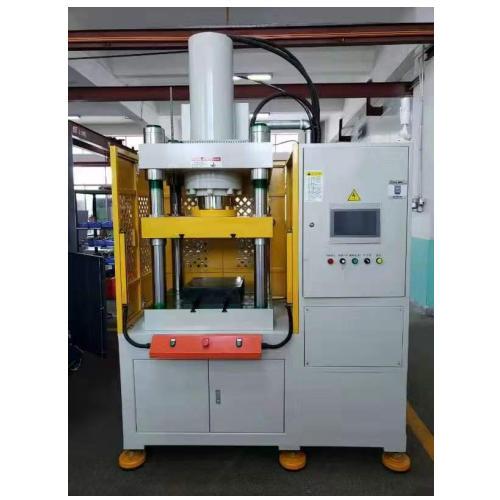

30T Laboratory CNC Hydraulic Servo Press Equipment For Metal Powder Stamping

Item NO.:
TMAX-106KS-30T
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

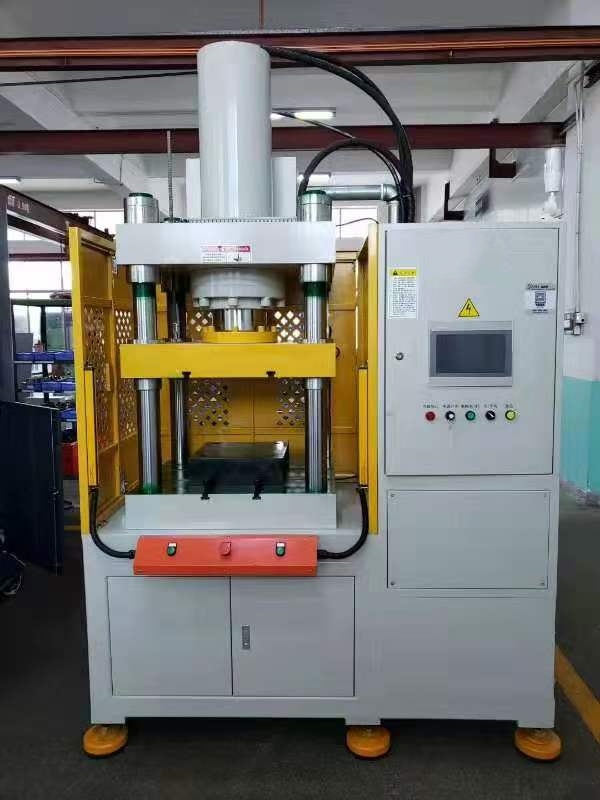

30T Laboratory CNC Hydraulic Servo Press Equipment For Metal Powder Stamping

Introduction

The function of the equipment: press-fitting

The power source of the equipment: It is powered by a fluid pressure of 25MPA, with a total power of 5.5KW

Equipment structure: Four-column structure.

Working conditions

1. Working environment: Ambient temperature -10 to 45℃, relative humidity 40 to 80%

2 Power supply voltage: AC380V (±10%), frequency 50HZ (±1HZ), three-phase five-wire

3 The maximum working pressure of the liquid is 21MPA. When the room temperature is 35℃, the continuous working oil temperature does not exceed the set 65℃

4 Use high-quality #46 hydraulic oil

Main technical parameter

No	Parameter	Unit	Vaule	Note
1	Output range of the oil cylinder	Tf or KN	5-30 or 50-300
2	The maximum working pressure of the oil pump	MPA	21
3	The maximum working height of the sliding speed and the lower working face	MM	400
4	Cylinder stroke	MM	300
5	The minimum working height of the sliding speed and the lower working face	MM	100
6	Effective area of the lower workbench (left and right * front and back)	MM	500*400	T-slot clamping
7	Effective area of the upper working surface (left and right * front and back)	MM	500*400	T-slot clamping
8	Throat depth	MM	200
9	The height of the lower working face from the ground	MM	900
10	The descent speed of the slider	MM/S	150
11	The feed speed of the slider	MM/S	1—20, adjustable
12	The rebound speed of the slider	MM/S	150
13	Motor power	KW	5.5KW
14	The total weight of the equipment is	KG	2000
15	Repeatability accuracy of equipment pressure		±1%
16	Minimum display unit of pressure	KN	1
17	Minimum display unit of displacement	MM	0．01
18	The display accuracy of the downward press is	MM	±0.01
19	Pressing down shows the repeat positioning accuracy as	MM	±0.03
20	The sampling speed of the system for the force sensor	Times/s	2000
21	Safety light curtain protection height	MM	300
22	Holding pressure time	MIN	0-5s
23	Parallel accuracy of the upper and lower working surfaces	MM	Within 0.15
