Vacuum Electrode Thin Film Coater Coating Machine With Vacuum Chuck and Dryer

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-DTM260

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

Vacuum Electrode Thin Film Coater Coating Machine With Vacuum Chuck and Dryer



The automatic coating and drying machine is widely used in high-temperature coating research, including ceramic films, crystal films, battery material films, and specialized nano-films. It is designed to support scientific advancements in film formation under high-temperature conditions.


Key Features

· Bottom heating drying system for efficient and uniform drying.

· Adjustable coating speed ranging from 0 to 100mm/sec.

· Digital temperature control drying system for precise heating management.

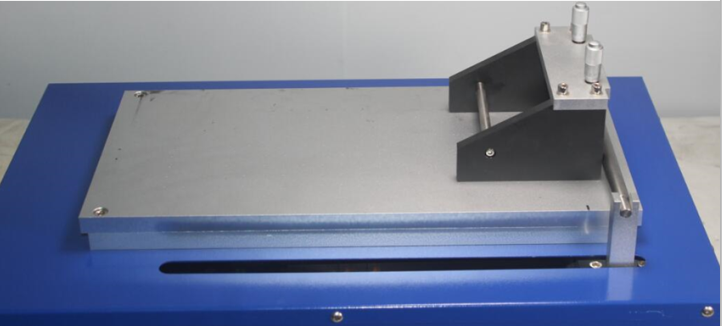

· Adjustable stroke range (10-250mm) via a travel switch, with a vacuum aluminum plate for easy and quick placement or removal of substrates.

· Equipped with an adjustable film applicator for enhanced coating precision.


Technical Specifications

Parameter

Specification

Coating Speed

0-100 mm/sec (adjustable)

Maximum Stroke

250mm

Vacuum Plate

Equipped with a vacuum aluminum plate

Vacuum Plate Size

365mm × 200mm × 30mm (L × W × H)

Blade Adjustable Range

0.01 - 3.5mm

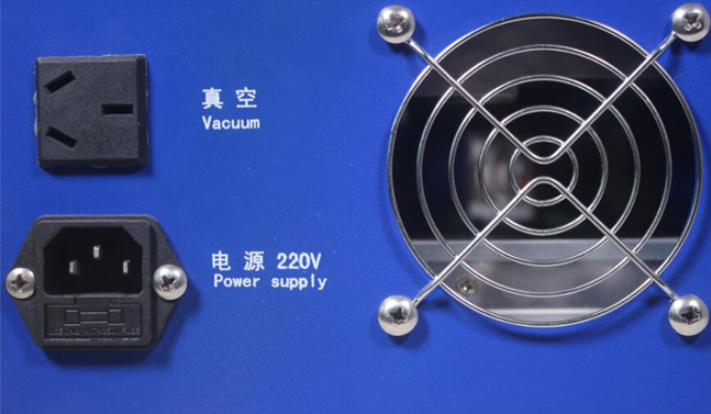

Power Supply

220V / 50Hz

Machine Weight

50kg

Machine Dimensions

500mm × 310mm × 260mm (L × W × H)



Film coating machine

Electrode Coater

Electrode Coater


Electrode Coater

Pouch Cell fabrication





Related Tags : Electrode Coater Vacuum Coater Film Coating Machine Thin Film Coating Machine
