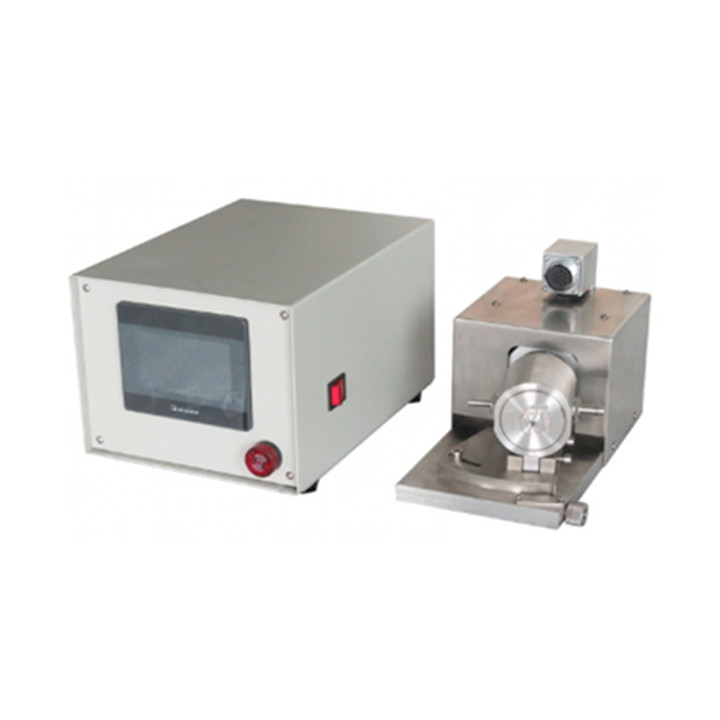

TMAX-JLB - 10 Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system

Model	Single Head Electrolyte Filling Machine  TMAX-JLB-10
Warranty	Two years limited warranty and lifetime support
Type	Rotating reciprocating positive displacement special ceramic injection pump
Speed	1-800 rpm, According to system configuration and fluid characteristics For battery industry, 60-200rpm is best
Stroke number	1-9999times, According to system configuration and fluid characteristics
Filling range	0-2.4ml adjustable
Filling accuracy	Within 2‰
Source voltage	AC110V/220V, 50/60HZ Single phase
Power	400W
Dimension (L*W*H)	Controller box : 340*300*145mm Filling device : 250*160*160mm
