Ultrasonic Metal Spot Welder for Solid State Battery Tab

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

  • Item NO.:

    TMAX-VS-40A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

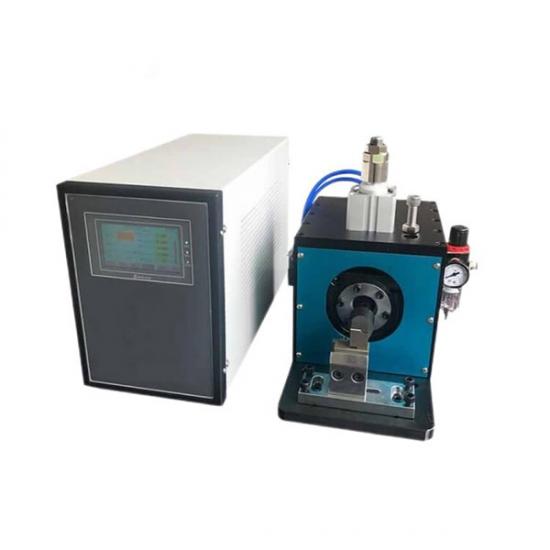

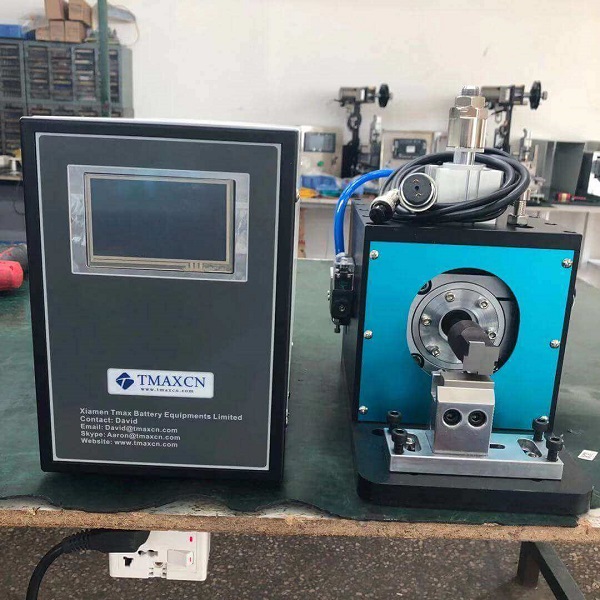

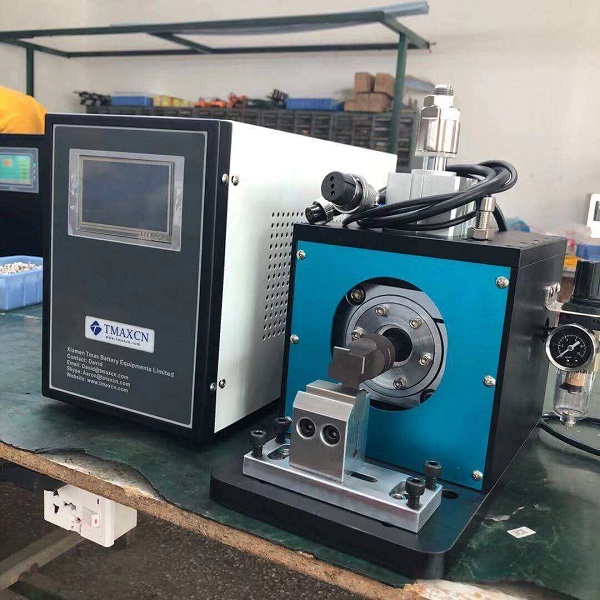

Ultrasonic Metal Spot Welder for Solid State Battery Tab

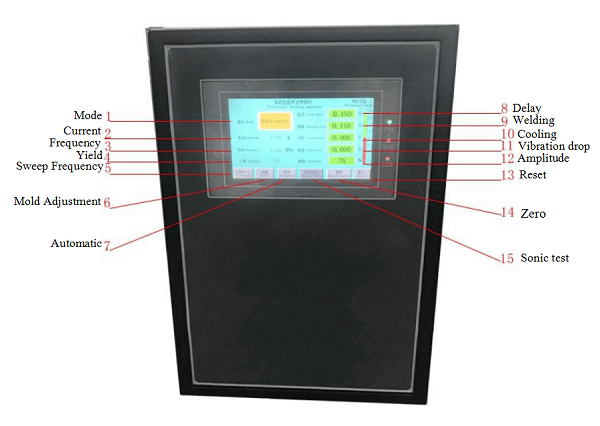

TMAX-VS-40A is a CE Certified ultrasonic metal welder with touch-screen controller. It is designed for welding stacked electrode foils/sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells.

The 2000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab.



Note:If you are not quite clear about what welder would be suitable for you,please consult the sales manager with following parameters,they will find a solution for you:

1. Weld material
2. Thickness of the material

3. Layer number of material


Specifications

Features

Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).

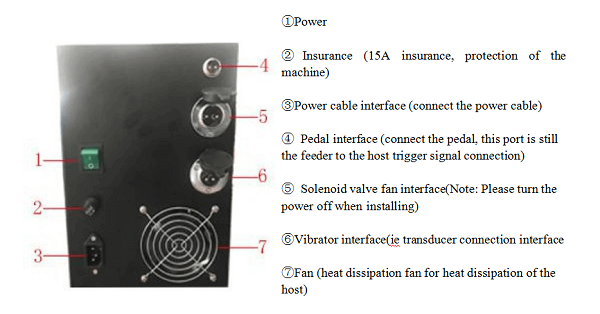

Input Voltage

AC 110V  or 220V +/-10%, 50/60Hz

Max. Power Consumption

2000W→can be customized

Welding Area

4mm(L) x 4mm(W)→can be customized

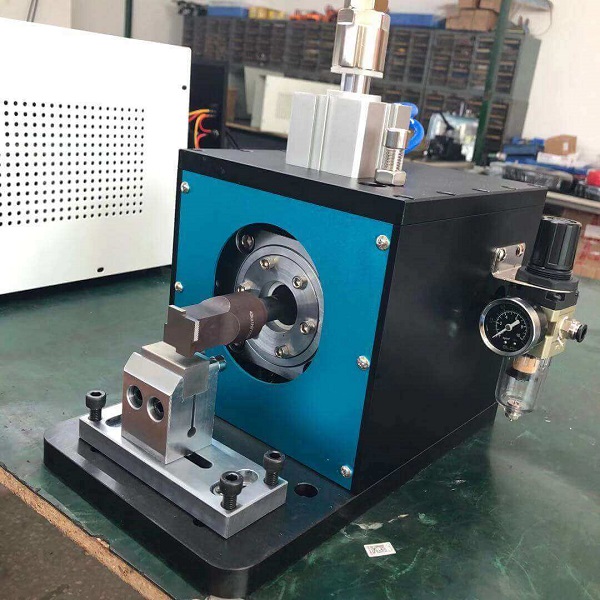

Welding Head

The welding heads and welding base are included for welding both aluminum & copper current collectors from 2 to 25 layers

Ultrasonic Frequency

40K Hz→can be customized

Product Dimensions

1.     Controller: 360mm(L) x 480mm(W) x 200mm(H)

2.     Welder: 200mm(L) x 460mm(W) x 270mm(H)

Net Weight

70kg

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support
