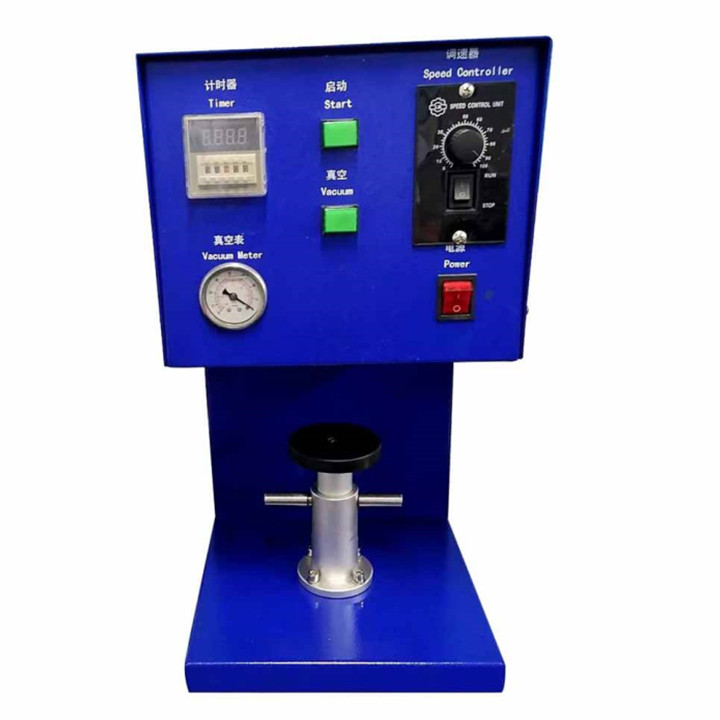

Vacuum Mixer Machine For Battery

Product Description

This vacuum mixer is a high-efficiency device that integrates vacuum mixing and dispersion, making it ideal for mixing cathode and anode slurries in battery research, as well as blending powder materials and various ceramics. Since the mixing process is conducted under vacuum conditions, it completely eliminates air bubbles, thereby improving material filling efficiency and enhancing the density of the final structure.

Features & Functions

· Industry-leading soft sealing technology, ensuring excellent sealing performance.

· Mixing motor with a variable frequency gearbox, allowing users to adjust speed and torque based on different processes and slurry viscosities.

· Compact design, saving space.

· Sleek and modern appearance, featuring a minimalist geometric structure.

Technical Specifications

Parameter	Specification
Power Supply	AC 220V
Rated Power	150W
Mixing Speed	0-320 RPM (adjustable via frequency converter)
Vacuum Level	≤ -80KPa
Mixing Tank Capacity	250ml stainless steel vacuum mixing tank (customizable)
Mixing Time	0-9999 min (adjustable)
Oscillation Mode	Stepless speed regulation
Machine Dimensions	Approx. 330mm × 310mm × 510mm (L × W × H)
Machine Weight	Approx. 20kg
