1-10L Vacuum Mixer for Laboratory Battery Making

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-JB-6
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

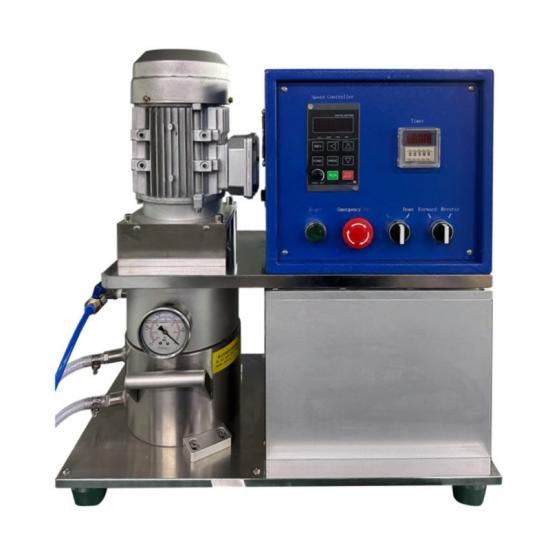

1-10L Vacuum Mixer for Laboratory Battery Making




Product Description

This vacuum mixer is a high-efficiency device that integrates vacuum mixing and dispersion, making it suitable for mixing cathode and anode slurries in battery lab research, as well as blending powder materials and various ceramics. The system allows users to set time, speed, and rotation direction through a programmable controller.


Features & Functions


· Industry-leading soft sealing technology, capable of maintaining a vacuum state of -0.098MPa for over 24 hours.

· Precision guide column support with an automatic cylinder-driven barrel opening and closing mechanismensuring high efficiency and user-friendly operation.

· 1L double-layer stainless steel container, made of high-quality 304 stainless steel, precision-machined and polished with an automated polishing machine to ensure high accuracy.

· Mixing motor with a variable frequency gearbox, allowing users to adjust speed and torque according to different processes and slurry viscosities.

· Dual dispersion blade design, ensuring thorough and uniform mixing by creating strong material circulation in all directions.

· Compact and aesthetically pleasing design, featuring sleek geometric structure.



Technical Specifications

Parameter

Specification

Rated Power

0.75W, 220V

Mixing Speed

0-1400 RPM (adjustable via variable controller)

Effective Volume

1L (customizable up to 2L)

Bucket Opening Mechanism

Dual-arm cylinder-driven lid lifting

Inner Bucket Dimensions

Φ106mm (inner diameter) × 175mm (height)

Machine Dimensions

L800 × W300 × H700mm

Lid Components

Equipped with a vacuum gauge and vacuum extraction port

Total Weight

Approx. 90kg

Timer Function

Adjustable 0-99 hours, with automatic stop and vacuum hold feature upon completion

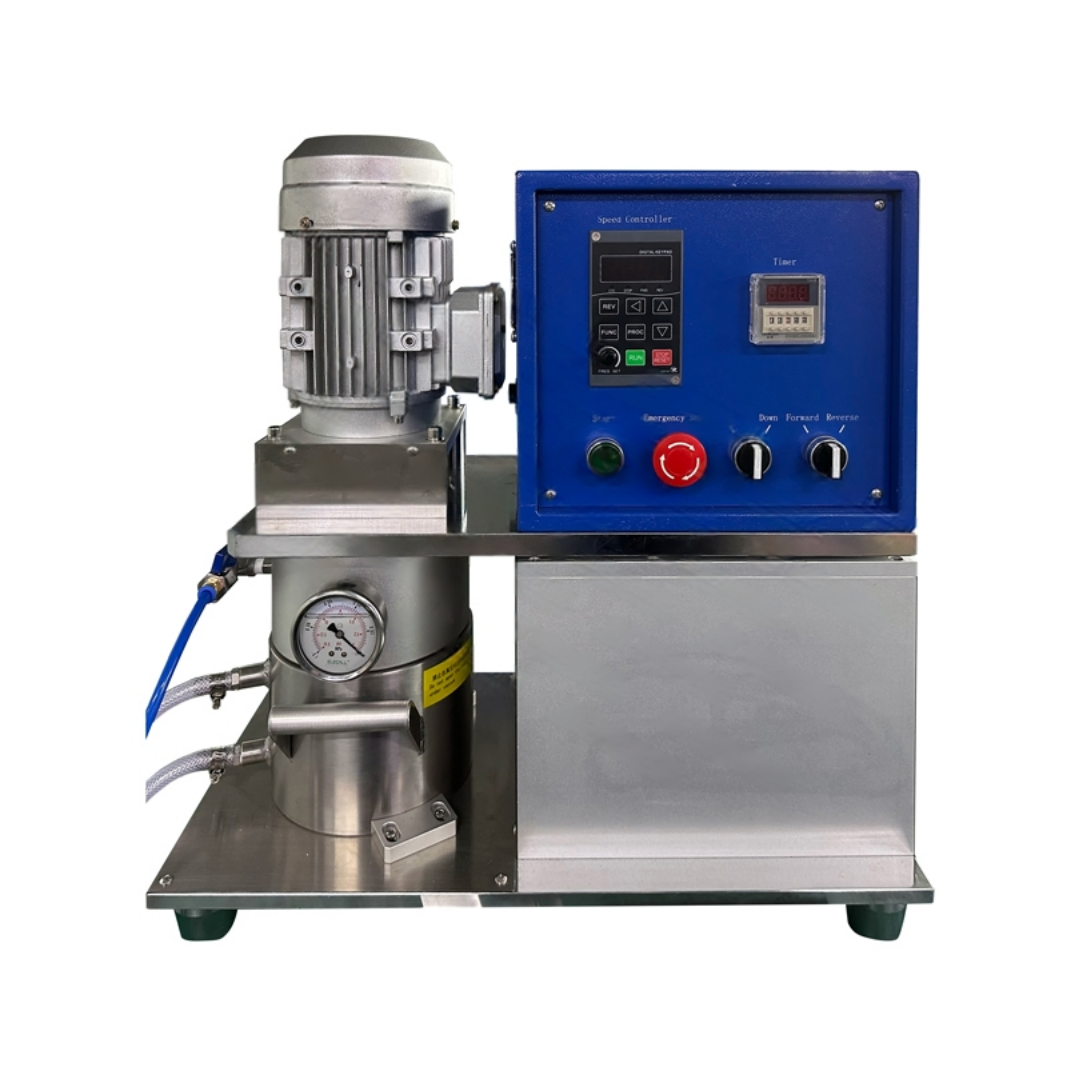

Vacuum mixer
