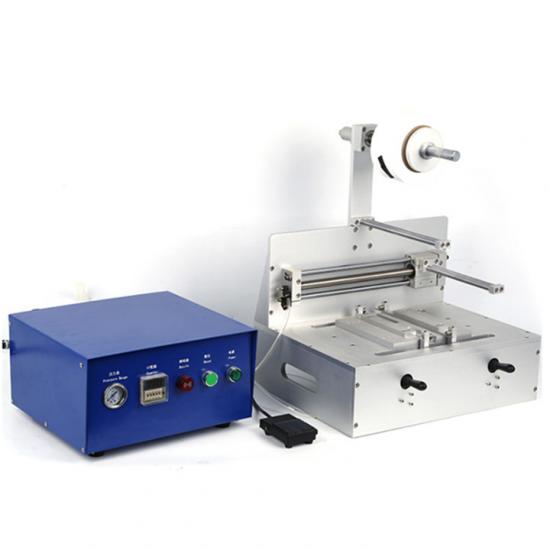

Small Layer By Layer Electrode Stacker Machine For Pouch Cell Stacking

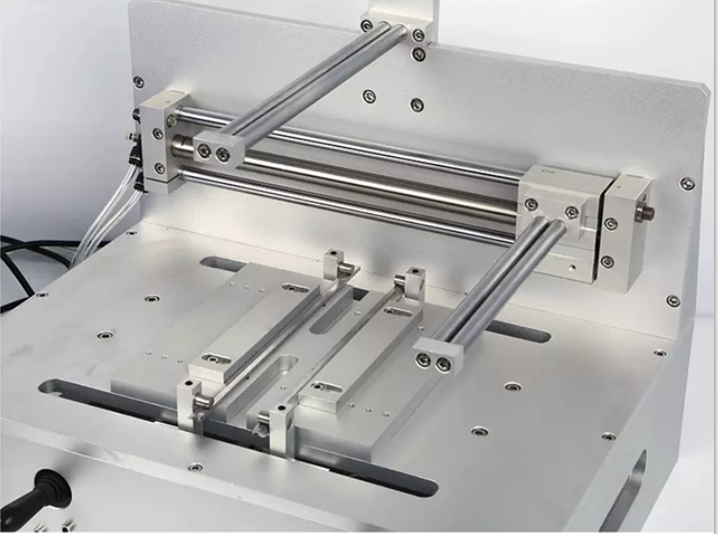

It is suitable for the stacking process of pouch cell. The positive and negative electrodes and separator are laminated or stacking in Z fashion.

*Table type, can be placed on the ordinary desktop;

*The adjustment, operation and maintenance of the machine are simple and easy;

*It can be used in a wide range of laminations;

*High efficiency, with digital counter;

*Foot switch is used to control the action of air cylinder;

*The machine is small in size and beautiful in appearance;

Stacking mode	Z fashion
Suitable separator coil	Roll type separator, 3-inch roll core, max.φ200mm applicable
Applicable electrode size	Length:20～200mm Width: 20～200mm Thickness: within 18mm Larger model for apply larger electrode is also available
Swing rod travel distance	300mm；
Power supply	AC220/110V; 50/60Hz
Power	200W
Air pressure source	0.4MPa～0.7MPa
Machine dimensions	L650mmW400mmH700mm
Control box size	L200mmW300mmH380mm
Weight	30Kg
