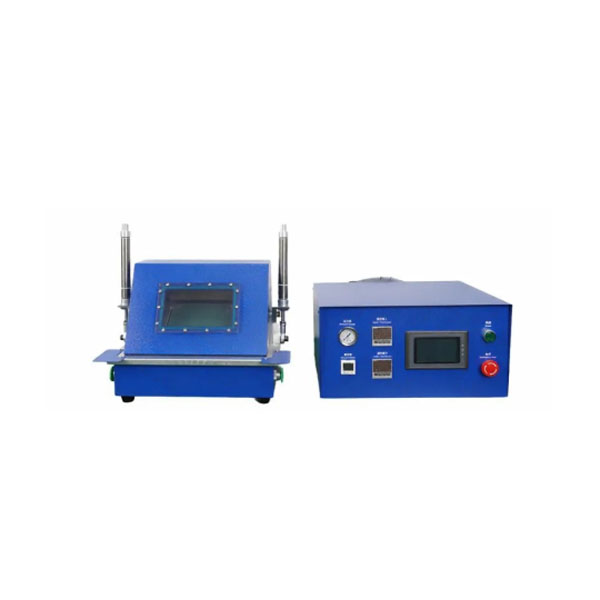

Pouch Cell Vacuum Sealer For Battery Preparation and Assembly

TMAX-YF200 vacuum pre-sealer for battery is a compact vacuum sealer for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber.



Type	TMAX-YF200 Vacuum pre-sealing machine
Vacuum	up-90Kpa ~ 0 adjustable
Head temperature	room temperature ~ 250 °C, temperature adjustable
Temperature Accuracy	± 2 °C
Sealing pressure	0 ~ 7Kg/cm2 adjustable
Sealing time	0 ~ 99 seconds adjustable
Edge Width	5mm
Maximum Edge Dimensions	200mm-400mm
Head Parallelism	with triple NCR, head pressure at 0.6MPa, temperature 200 °C, pressure out of uniform seal
Air Consumption	Approximately 0.2L compressed gas / each message once
Air Working speed	≥ 180 times / h
Power	Using 500w heat pipe, heat the power consumption of about 1KW
Power supply	220V/50Hz;
Compressed air source	0.5 ~ 0.8Mpa;
Dimensions	Work Department: 470mm * 485mm * 435mm
Control box	420mm * 325mm * 225mm
Weight	about 50Kg
