Pouch Cell Heat Hot Top Side Sealer Sealing Machine for Pouch Cell Preparation

Features
TMAX-SFZ200 is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.

It can prepare the pouch cell for the injection of an electrolyte by sealing the side and top of the pouch cell with the tab.

Working principle

It is transmitted to the head (copper) through the resistance heating tube, and acts on the sealing material (aluminum laminated film) of lithium battery by using the heat conduction effect. Under a certain pressure, it is heated to become soft and close to the melting state to complete the compression fusion joint. The top seal and side seal can be realized without changing the mold.


Main features

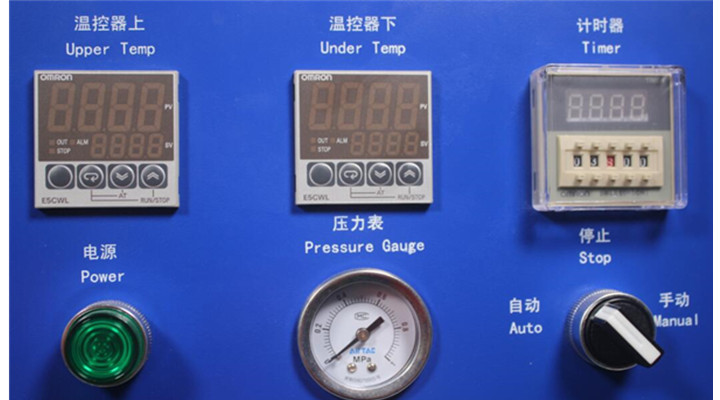

1. Unique safety protection and anti scalding design, the temperature of upper and lower ironing head can be adjusted by the button on the temperature controller panel;

2. The head is made of copper material, which has good heat transfer effect, saves power consumption, improves working efficiency and saves energy compared with similar products;

3. The pressure of upper and lower heads can be adjusted by pressure regulating valve to meet the requirements of different process parameters;

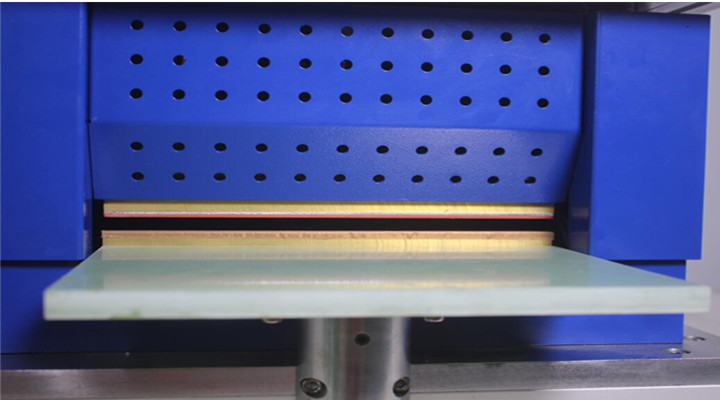

4. The upper and lower heads are driven by air cylinder and guided by two linear guide sleeves, which can move up and down flexibly and guide accurately, so as to ensure the parallelism requirements of products after edge sealing;

5. It can be used for batteries of different specifications, and the adjustment is simple and convenient, and there is no need to adjust and replace the head;

6. The frame made of aluminum profile has beautiful appearance; the sheet metal adopts solid geometry design, which is simple and beautiful;

7. Small size, smooth and even sealing mark and beautiful edge sealing appearance;

You'll be sure to find the perfect Battery sealer for yourself.

Maximum seal length	200mm~400mm(can be customized)
Seal width	5mm±0.4(3～10mm can be customized)
Side sealing thickness	60～300um
Thickness of top tab edge sealing	200～700um
Heat sealing temperature	RT～250℃ adjustable
Temperature accuracy	±2℃。
Sealing  time	0-99s adjustable
Seal thickness accuracy (mm)	The thickness difference between any two points is less than 15um
Safety device	Equipped with protective device to prevent high temperature scald.
Operation mode	The equipment has the function of automatic and manual operation.
Flexibility	The equipment is easy to clean and replace the copper mold.
compressed air	5～8kg/cm2
Working speed of air compressor	≥400 times/hour
Power Supply	AC220V/110V, 50/60Hz
Power	0.5KW
Dimensions	L430x W330x H480mm
Equipment weight	35Kg
