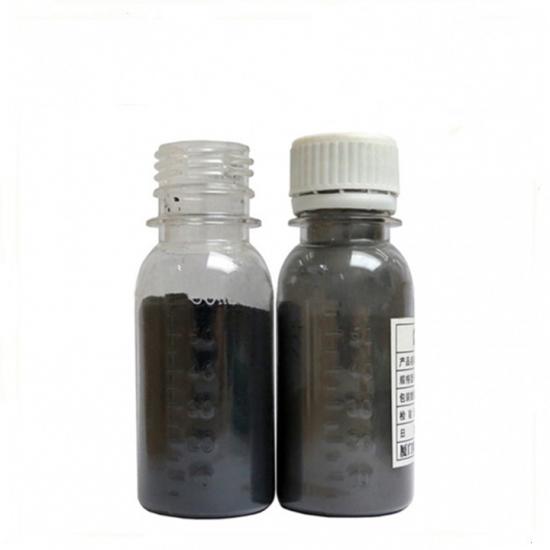

NMC=5:3:2 Powder High Capacity Battery Lithium Nickel Manganese Cobalt Oxide Powder

Product Name:	LiNiMnCoO2	Type:	TMAX-NMC-532
SPECIFICATIONS
Item	Standard	Test result	The analytical methods and instruments
Element content（wt%）
Ni+Mn+Co	≥58.0	58.31	ConsultGB/T15899-1995,HG/T4020 -2008,HG/T2631-2005;Volumetry
Li	7.0~8.0	7.52	Consult JY/T 015-1996: Inductively coupled plasma atomic emission spectrometry
Na	≤0.03	0.0095
Fe	≤0.01	0.0029
Cu	≤0.005	0.0002
H2O	≤0.05	0.0144	Consult. GB/T 606-2003 C30;Carle Fischer coulometric instrument
Distribution of grain size（μm）
D(10)	≥5.0	6.8	Consult.GB/T19077.1-2008                Mastersizer2000 laser particle analyzer
D(50)	10~14.0	11.72
D(90)	≤25.0	20.076
Electrochemical performance
First discharge efficiency(%)	≥85	86.8	ConsultYS/T798-2012; Button half cell 0.2C,4.2V-2.7V
First discharge capacity(mAh/g)	≥153	154.1-155.1
Physical property
BET(m²/g)	0.2~0.4	0.29	Consult GBT 13390-2008;TriStarⅡspecific surface area
TD（g/cm³）	≥2.3	2.46	Consult GB/T5162-2006;FZS4-4B Jolt density meter
PH	≤11.5	10.81	Consult GB/T1717-1986;DELTA320PH
