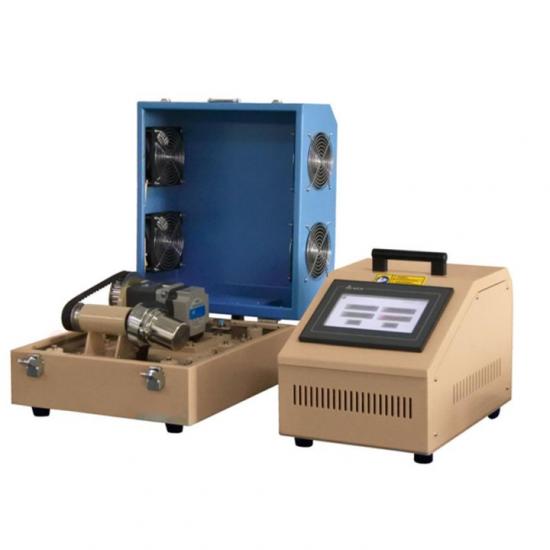

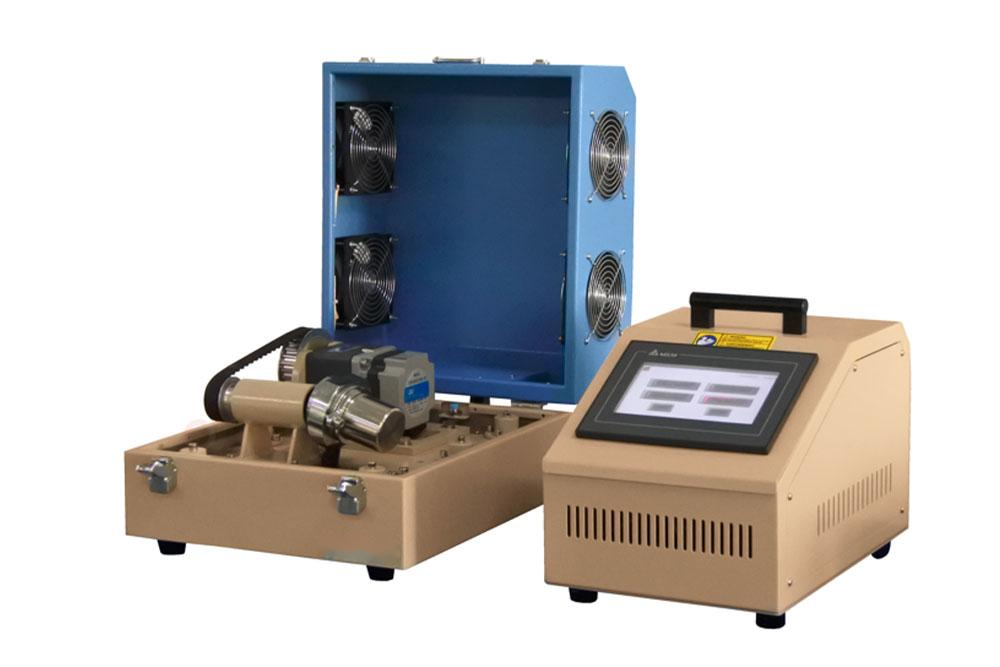

Nano Vibration Planetary Ball Mill With High-Speed

Product description

Overview	JT-80 high-speed vibrating ball mill is a high-efficiency small-scale instrument used for laboratory sample (small and trace) preparation.
Working principle	The instrument has rotational oscillation and vibration three-dimensional motion during grinding，and the collision energy is higher than other types of ball mills.
Advantage	The instrument is small in size, light in weight, high in efficiency and cheap in price.
Scope of application	High-speed vibrating ball mill can use dry and wet methods to ball mill or mix various solids, suspensions and pastes with different particle sizes and materials. It can be used for material grinding, mixing and mechanical alloying.



Schematic diagram of high-speed vibrating ball mill:

1. Compression spring

2. Motor

3. Bearing seat

4. Ball mill jar

5. Pressure plate

6. Swing head

7. V-belt



Parameter

Model Specifications	JT-80

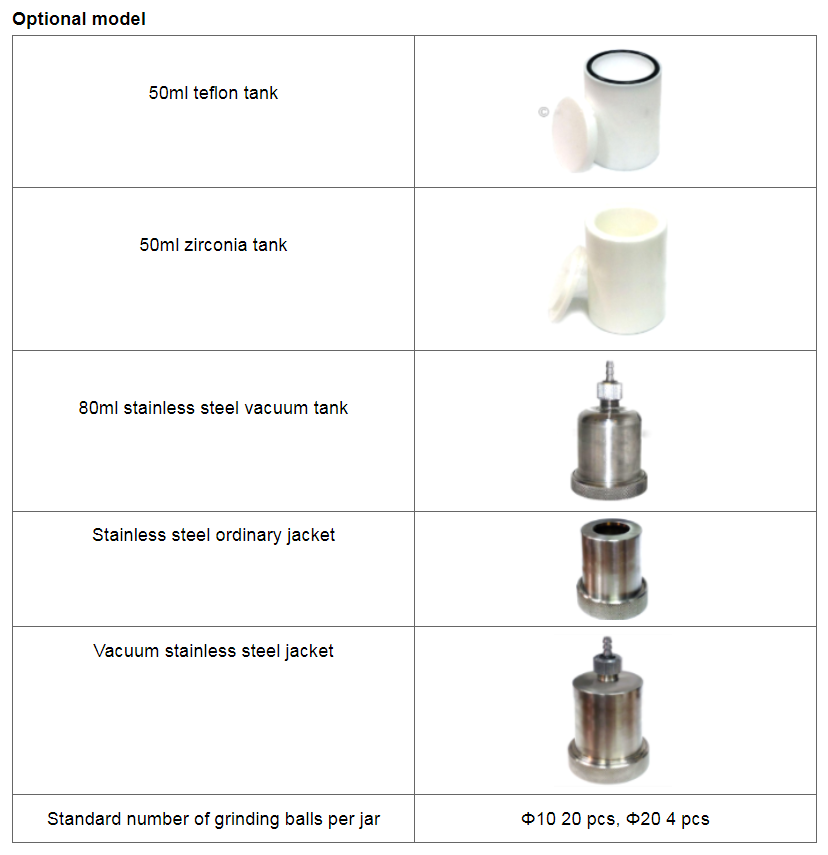

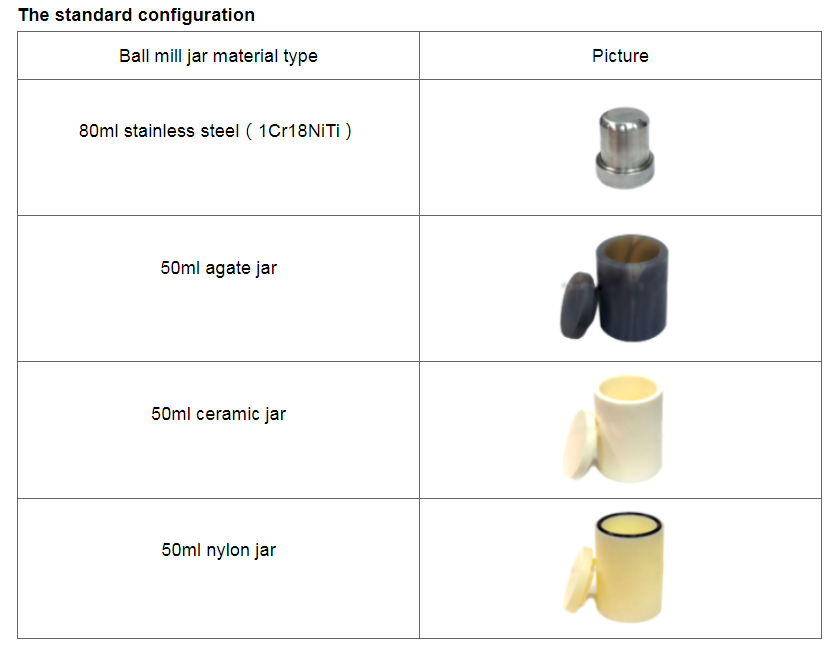

Specification	50ml,80ml
Technical indicators	Maximum filling volume per tank: one third of the volume of the ball mill tank
Feed particle size	<1mm
Discharge particle size	Minimum to 0.1um
Swing frequency	1200 weeks/min
Timing range	0~9999 seconds and normally open
Motor Specifications	Single phase 220v 180W
Motor frequency	50Hz
Dimensions	405×365×260 (mm)
Features	The high-speed vibrating ball mill has an eccentric pendulum shaft. When the motor runs at a high speed, the tank body swings eccentrically; it drives the entire bracket to vibrate up and down, so that the grinding process is completed in a three-dimensional space of high-speed swing and vibration. Greatly improve the speed and efficiency of grinding.
