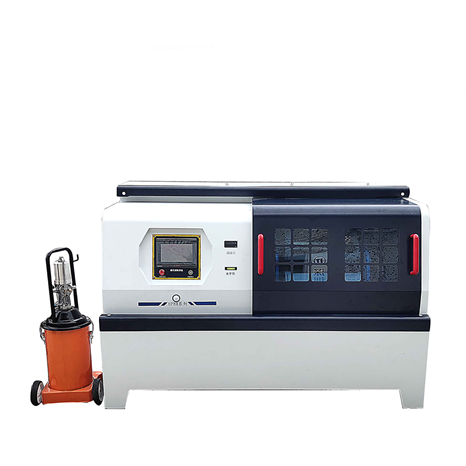

360C Planetary Ball Mill Machine

The comprehensive planetary ball mill is based on the vertical planetary mill, adding the turning function of the planetary transmission mechanism. While the planetary plate and the materials and grinding balls in the ball mill can do the planetary movement, they can also do the 360 ° turning in a fixed space, so as to realize the multi-dimensional and multi-directional movement of the grinding balls and materials in the ball mill, improve the degree of disordered movement of the grinding balls and materials, and complete There is no dead angle for grinding materials in the grinding tank, which makes the ground materials more uniform, and solves the problems of sinking and sticking of some materials.



Features

The equipment is light and easy to operate. The shell is made of high-precision laser cutting, CNC bending, elegant and high-end stable. The planetary disk and structural components are processed by CNC processing technology, and the nitriding metal heat treatment technology ensures the wear-resisting of the rotating shaft and prevents the shaft from breaking. The transmission gear is made of high-temperature wear-resistant non-metal and metal combination precision gear, lubricated by grease It can be equipped with our company's automatic greasing device, which can flexibly set how long the automatic quantitative oiling can take. It can solve the wear caused by the untimely lubrication of the transmission components, shorten the service life of the equipment, and ensure the smooth and quiet operation of the equipment at high speed.



Specifications

Transmission mode	Gear drive
Maximum sample loading	2/3 of the capacity of the ball mill
Volume of ball mill	0.05L-10L per tank, total volume 0.2l-40l
Feed size	Soil material≤10mm, other materials≤3mm
Discharge particle size	Up to 0.1um minimum
Speed regulation mode	Stepless speed regulation of frequency converter
Model	Volume (L)	Applicable jar volume	Power(kW)	Runing time(min)	Revolution   speed(rpm)	Rotation speed(rpm)	Weight(kg)
OPBM-0.4	0.4	50-100ml	0.25	1-9999	47-465	94-930	140
OPBM-1	1	50-250ml	0.75	1-9999	35-370	70-740	280
OPBM-2	2	50-500ml	0.75	1-9999	35-370	70-740	280
OPBM-4	4	250-1000ml	0.75	1-9999	35-370	70-740	285
OPBM-6	6	1-1.5L	0.75	1-9999	35-370	70-740	290
OPBM-8	8	1-2L	1.5	1-9999	35-320	70-640	345
OPBM-10	10	1-2.5L	1.5	1-9999	35-320	70-640	345
OPBM-12	12	1-3L	1.5	1-9999	35-320	70-640	350
OPBM-16	16	2-4L	3	1-9999	30-255	60-510	400
OPBM-20	20	2-5L	4	1-9999	25-215	50-430	710
OPBM-40	40	5-10L	5.5	1-9999	20-195	40-390	1000

Model selection guidance

Selection of size of planetary ball mill:

According to the number of materials to be ground, choose the size of the planetary mill.

Calculation formula for size selection of planetary ball mill: a = C /ρ* 3.

Note: A is the size of planetary mill (unit: l), C is the mass of primary grinding material (unit: kg), ρis the bulk density of grinding material (unit: kg /L).

For example, if 2kg of material is ground at one time and the bulk density of material is 1.5kg/L, the size of planetary mill in row a = 2/ 1.5*3 = 4L is selected.

Planetary ball mill style and special function configuration options:

Planetary ball mill is divided into vertical, horizontal, comprehensive, double planet four styles, according to the material grinding requirements, choose the corresponding styles, each style of products can be equipped with air cooling or heating equipment according to the grinding material temperature requirements.

Reference table for selection of planetary ball mill style and special function configuration

Model selection of planetary ball mill	Nature of abrasive material
Vertical planetary mill	Grinding of general materials, no special requirements
Comprehensive planetary mill or horizontal planetary mill	The material is easy to sink and bind
Double planetary mill	Ultra high speed and ultra-fine grinding are required
With air cooling device or liquid nitrogen device	The grinding process is hot and needs to be cooled
Equipped with vacuum ball milling tank	Easy to oxidize, requiring vacuum environment or atmosphere protection
With heating device	High temperature grinding required
