Manual Coin Cell Disc Punching Tool for Electrodes

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-CP12

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

Manual Coin Cell Disc Punching Tool for Electrodes


TMAX-CP12 is a manual coin cell punching tool with optional cutting dies(Diameter: 8, 15, 18, 20 mm). It is a cost-effective lab cutting tool forlithium battery electrode disc prepare, also for other materials cutting,such as Al, Cu, Li, and coated battery electrode sheet. It is easy to change cutter die through a permanent magnet holder and good for operating in a glove box.



Name

Hand-Held Coin Cell Disc Cutter for Lab

Advantage

Small size, low cost, light weight, convenient

Ring Cutting Die

Diameter 8mm,15mm, 18mm and 20mm, other size customized.

CuttingThickness

Max0.3 mm for soft metallic foil

Cutting Accuracy

±0.01mm

Product Dimensions

157 x 109 mm

Warranty

One-year limited manufacturer warranty with lifetime support

Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty

Storage

Spare cutting die shall be stored in the dry box to avoid rushing

Net Weight

0.5KG

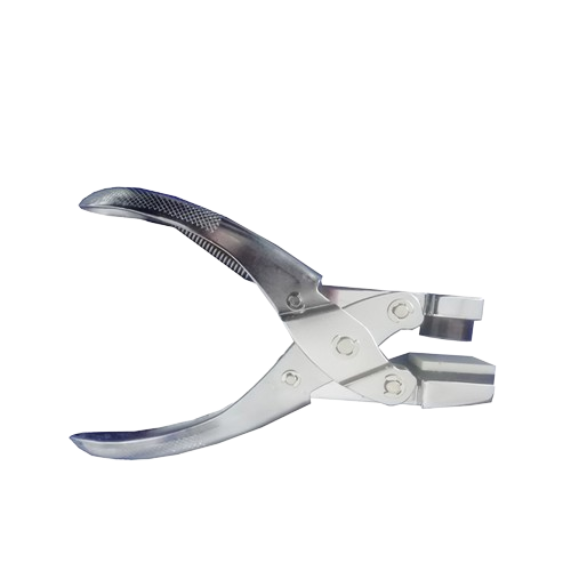

Manual Coin Cell Disc Punching Tool

Manual Coin Cell Disc Punching Tool


coin cell machine
