Item NO.:
TMAX-RY200Payment:
L/C,T/T,Western Union, PaypalLead Time：
5 daysCertificate:
CE, IOS, ROHS, SGS, UL Certificate

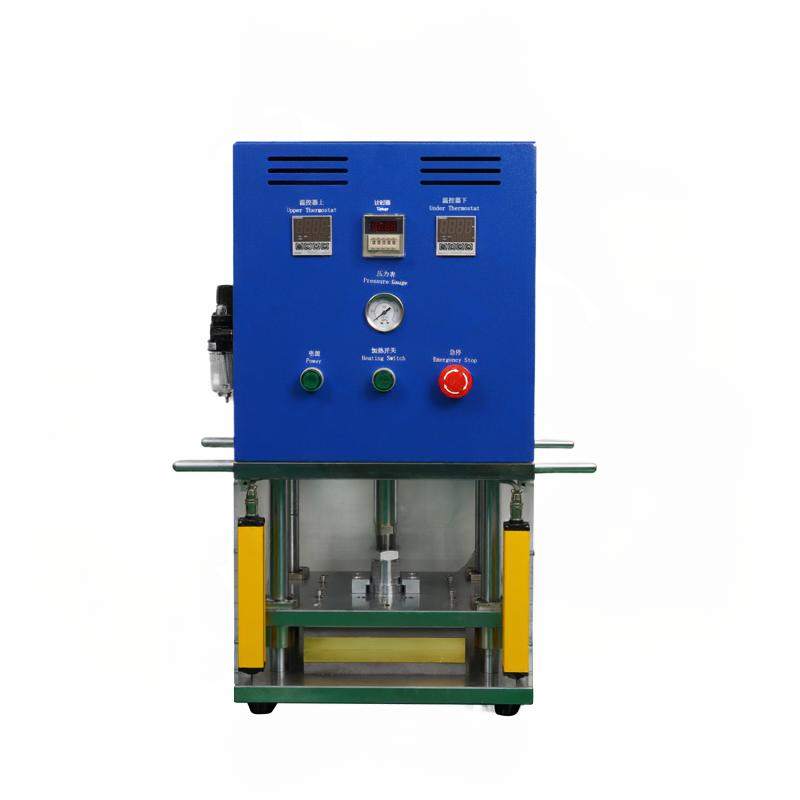

Laboratory Pouch Cell Hot Press Machine
Application
The TMAX-RY200 Pouch Cell Hot Press Machine is designed for heat pressing and shaping of pouch cell cores after winding or stacking. It flattens and shapes the bare cell, making it easier to insert into aluminum-laminated cases, and improves the appearance and consistency of the pouch battery form.
· Constant temperature control with automatic heat pressing timer, ensuring consistent shaping.
· Continuously adjustable pressure, allowing flexible adaptation to different process needs.
· Copper heating elements, providing uniform heat distribution and energy efficiency.
· Compact and flexible, suitable for various lab and pilot-scale setups.
· Safe, stable, and reliable operation with user-friendly controls.
|
Parameter |
TMAX-RY200 (Standard) |
TMAX-RY300 (Large) |
|
Effective Pressing Area |
L200mm × W200mm |
L300mm × W300mm
(customizable) |
|
Working Speed |
Approx. 300–500 cycles/hour |
Approx. 300–500 cycles/hour |
|
Pressing Force |
0–1T (adjustable) |
0–1T (adjustable) |
|
Power Supply |
AC220V / 50Hz |
AC220V / 50Hz |
|
Power Consumption |
1KW |
1KW |
|
Compressed Air Supply |
0.5–0.7MPa |
0.5–0.7MPa |
|
Machine Dimensions |
L320mm × W320mm × H430mm |
L420mm × W420mm × H430mm |
|
Machine Weight |
60kg |
80kg |
