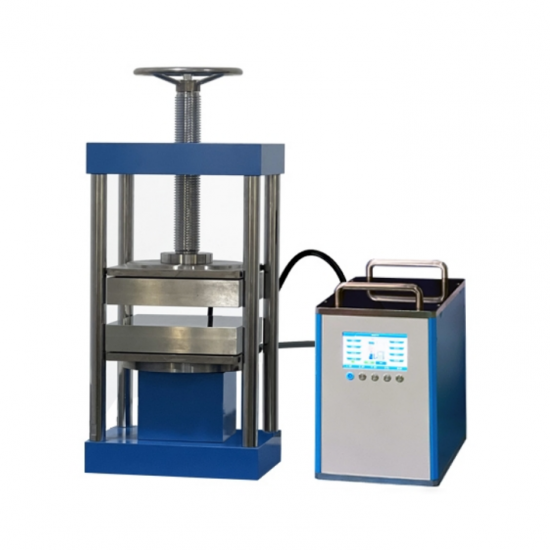

Lab High Temperature 30T Programmable Split Electric Hot Press





Setting interface





Operating interface







Operation procedure







Technical parameter

Instrument type	PCD-600E(300.0℃)/PCD-600EG(500.0℃)
Pressure range	0-30.0 tons
Pressurization process	Programmed pressure - programmed pressure retention - timed pressure relief
Holding time	1 s to ∞ s
Mold heating temperature	Room temperature -300.0℃/500.0℃
Constant temperature time	1 s to ∞ s
Temperature control accuracy	0.1 ℃
Heat insulation method	Imported heat shield
Cooling method	Water cooling rapid cooling [water cooling machine selection
Mold size	300x300mm(MXN)
Main engine size	380X350X600mm(KxPXH)
Overall size	700X400X600mm(LXWXH)
Power source	3500W(220V/110V can be customized)
Main engine weight	280 Kg

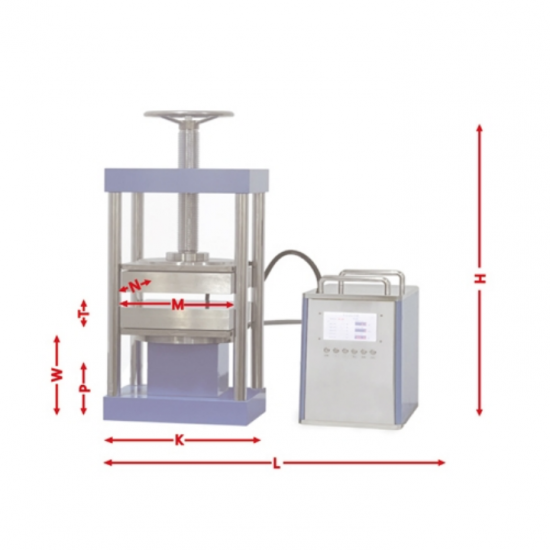

Powder tablet press size diagram
