Lab High Performance Four Ports Vacuum Glove Box Equipped with Eduard Vacuum Pump

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX- Lab2000(750*90
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

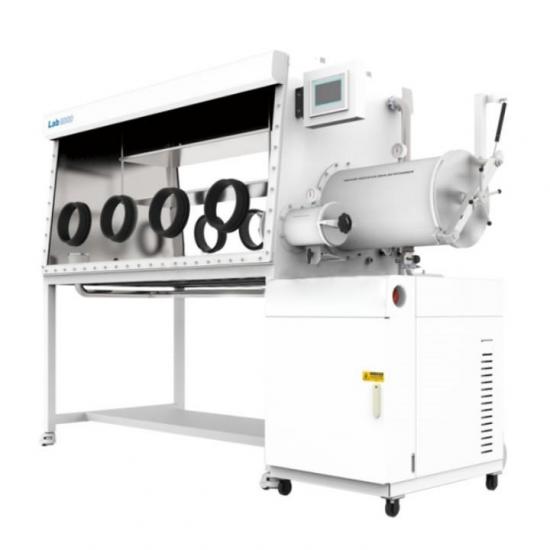

Lab High Performance Four Ports Vacuum Glove Box Equipped with Eduard Vacuum Pump





Single Side Glove Box




Product Overview

The Lab2000 glovebox is a high performance, high quality, closed loop working system that automatically absorbs water and oxygen molecules and purifies the working environment, providing an inert 1ppm O2 and H2O atmosphere that can be applied to meet your specific cleaning requirements. The system is an economical recirculating purification system designed to meet the customer's research and development needs.

The Lab2000 system consists of a closed chamber, a transition chamber, a rotary vane vacuum pump and a recirculation purification system with an integrated microcontroller operating panel. The standard Lab2000 system is equipped with an inert gas purification system with a purification column (fully automatic and renewable) to purify and maintain the gas environment inside the glove box.



Accessories list

No.

Accessory Name

Quantity

Unit

Accessory pictures

1

KF25 Clamp

3

sets



2

KF25 Bellow

1

pc



3

Gloves

4

pcs



4

Glove seals

8

pcs



5

Eduard vacuum pump

1

pc



6

Oil mist filter

1

pc



7

Water Analyser

1

pc



8

Oxygen analyser

1

pc



9

Instruction manual

1

pc





Technical parameters

Boxes

Description

Material: Stainless Steel Type 304 Thickness 3 mm

Dimensions: 1800mm(L) x 750mm(W) x 900mm(H)

Volume

1.2m³

Front window

Panel: 8 mm thick safety toughened glass or 10 mm thick polycarbonate (optional)

Dimensions: 1735mm(L) x 839mm(H)

Glove opening

Hard aluminium or paraformaldehyde (optional)

Calibre 220 mm, O-ring seal

Gloves

Material: butyl rubber

Thickness: 0.4 mm or 0.8 mm (optional)

Filters

Outlet and inlet filters, filtration <0.3μm

Lighting

LED lighting in the upper part of the front window roof

Leakage rate

Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to Class 1 hermeticity < 0.001 vol%/h Final acceptance test.

GP20 gas purification system

Description

Automatic removal of H2O and O2

Single clean-up column system with automatic regeneration (optional GP200 double clean-up column)

Sealed gas circulation lines

Voltage used

AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional)

Working gases

Working gases: N2, Ar, He (purity ≥ 99.999%)

Regenerative gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%)

Vacuum pumps

Specifications: Rotary vane vacuum pump with oil mist filter, with gas ballast control

Flow rate: 12 m³/h (7 cfm), double baseplate, vacuum < 2 x 10-3 mbar or dry pump (optional)

Circulation units

Oil-free high-speed fans

Air volume: 80 m³/h

Valves

KF40 High vacuum valve

Leakage rate

Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to class 1 hermeticity < 0.001 vol%/h Final acceptance test.

Control cabinet dimensions

600mm (L) x 800mm (D) x 870mm (H)

Transition cabin

Large Transitional Cabin

Materials

Stainless steel type 304, thickness 3 mm

Size

φ360mmx600mm(L) or φ390mmx600mm(L) (optional)

Vacuum level

< 1 x 10-2 mbar

Small Transitional Cabin

Materials

Stainless steel type 304(1.4301), thickness 2 mm

Size

φ150mm x 330mm(L)

Vacuum level

< 1 x 10-2 mbar

Cleaning systems

Description

By setting the corresponding time and pressure, the system can automatically displace the gas to the chamber.

Analyzers

Oxygen analyser

Size

205 mm (L) x 80 mm (W) x 60 mm (H)

Measurement range

0-1000 ppm

Other Oxygen Analysers

GE oxy.IQ™ Oxygen Transmitter

Moisture analyser

Size

205 mm (L) x 80 mm (W) x 60 mm (H)

Measurement range

0-500 ppm

Other water analysers

GE VeriDri™ Dew Point Transmitter

Solvent purification systems

Description

Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm

Internal dimensions: 220mm(Φ) x 450mm(H)

High quality activated carbon

Optional equipment

Refrigerator

Independent control system, integrated in the side panels of the chamber, temperature -35°C, volume 18L or 32L

Main body 304 stainless steel tubes, 5 variable compartments

R404 environmentally friendly refrigerant, originally imported

Heated cabin

Large transition configuration heating system at 200°C with ±1°C temperature control
