Lab Acrylic Material Vacuum Glove Box or Vacuum Inert Gas Operating Box Equipped with Durable Gloves

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-GBT-D

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

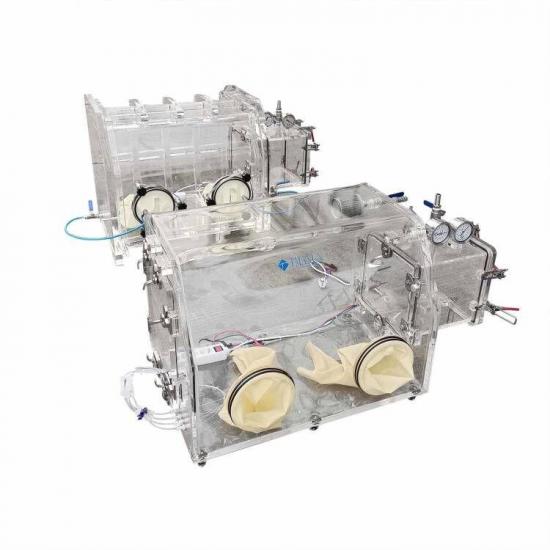

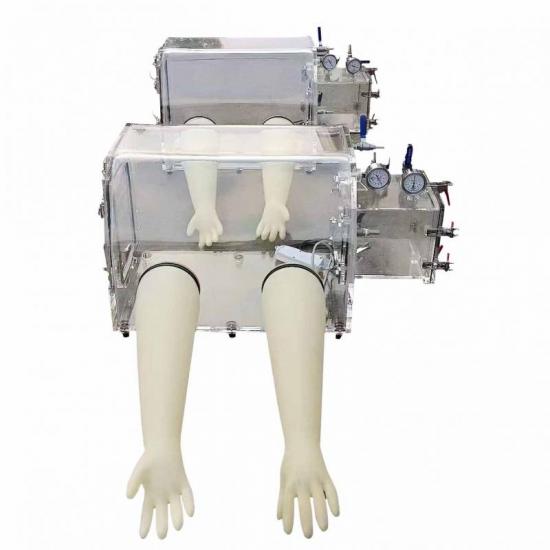

Lab Acrylic Material Vacuum Glove Box or Vacuum Inert Gas Operating Box Equipped with Durable Gloves







Item

Specifications

Main box

Plexiglass operating box

GBT-10D

1200*800*700（thickness 10mm）

Main box

Plexiglass operating box GBT-15D

1200*800*700（ thickness 15mm）

Main box

Plexiglass operating box GBT-35D

1200*800*700（ thickness 35mm）


1. Description

During the scientific experiment, some substances are easily oxidized and deliquescent in the atmospheric state, which makes the chemical reaction of the test substance and the pre-treatment of the sample very difficult, affecting the test process and test results. The vacuum glove box (also known as the vacuum inert gas operating box) effectively solves these problems. The device allows the test sample to be safely placed and removed, and is freely operated, reacted and tested in an oxygen-free and anhydrous state. The normal conduct of scientific experiments.


2. Features

1) The structure is simple, convenient to use, transparent to ultraviolet light, and light in weight;

2) Under normal conditions, its shape is stable, highly transparent, chemically resistant and climate change;

3) The box is equipped with a porous electric socket for scientific experiments;

4) Good sealing performance, and can shield and absorb the α-ray and low-energy β-ray emitted by the radioactive material to protect the human tissue from ionizing radiation damage;

5) The inert gas replacement method can be performed to maintain the anaerobic and water-repellent operating environment.


3. Technical parameters and requirements



No.

Item

Specification（GBT-10D）

Specification（GBT-15D）

Specification（GBT-35D）

1

Box size

1200*800*700mm

1200*800*700mm

1200*800*700mm

2

Transition size

240*240*240mm/no transition cabin

240*240*240mm

240*240*240mm

3

Material

Acrylic material

(PMMA)

Acrylic material

(PMMA)

Acrylic material

(PMMA)

4

Thickness

10mm

15mm

35mm

5

Interface

Two. One is the air inlet and one is the air outlet.

Two. One is the air inlet and one is the air outlet.

Two. One is the air inlet and one is the air outlet.

6

Outlet

The box is equipped with 1 socket plate, 4 sockets, 2 holes, 3 holes can be universal

The box is equipped with 1 socket plate, 4 sockets, 2 holes, 3 holes can be universal

The box is equipped with 1 socket plate, 4 sockets, 2 holes, 3 holes can be universal

7

Gloves

Durable, yellow gloves, arm part fixed glove box glove mouth.

Durable, yellow gloves, arm part fixed glove box glove mouth.

Durable, yellow gloves, arm part fixed glove box glove mouth.

8

Vacuum degree

Micro vacuum ±3000pa

Micro vacuum ±3000pa

Vacuum -0.1mpa
