Item NO.:
TMAX-CK650Payment:
L/C,T/T,Western Union, PaypalLead Time：
5 daysCertificate:

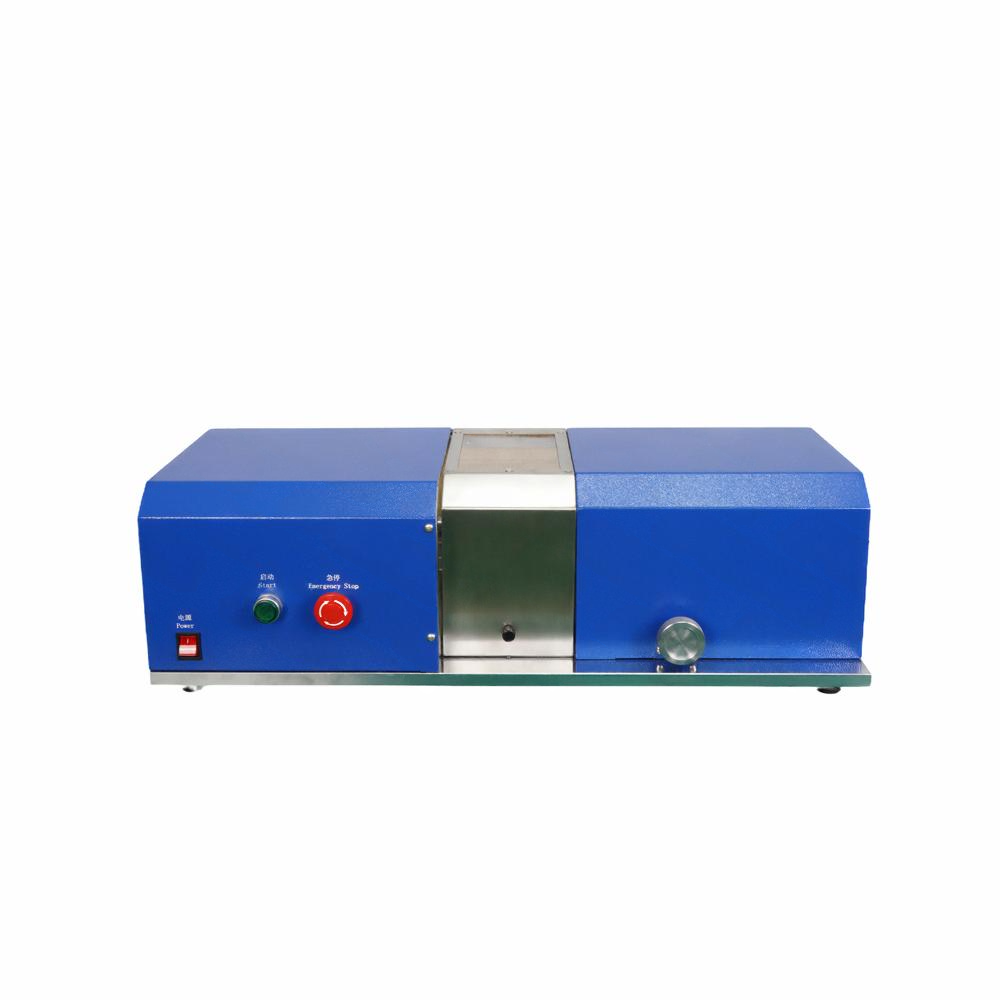

CE ROHS CertificateLab Cylindrical Battery Cell Disassembler Disassembling Machine
Application
The TMAX-CK650 is a cylindrical battery disassembly machine specially designed for laboratory use, particularly for removing the outer shell of 18650 and 26650 battery samples after sealing, to facilitate cell core extraction and material research. It supports multiple cylindrical battery formats through interchangeable dies.
Key Features
· Compatible with 18-series and 26-series cylindrical batteries, including 18650 and 26650 cells.
· Compact design, easily passes through glove box transfer chambers with a diameter ≥230mm.
· High disassembly precision, ensuring the battery core remains undamaged during shell removal.
· User-friendly, safe, and aesthetically designed, ideal for lab environments.
|
Parameter |
Specification |
|
Standard Die |
18650 die set (optional: 26650 die set) |
|
Cutting Blade Speed |
1000 rpm |
|
Die Rotation Speed |
1000 rpm |
|
Micrometer Scale Accuracy |
0.05 mm |
|
Power Supply |
AC220V |
|
Power Consumption |
150W |
|
Machine Dimensions |
450mm × 330mm × 240mm |
|
Machine Weight |
22kg |
