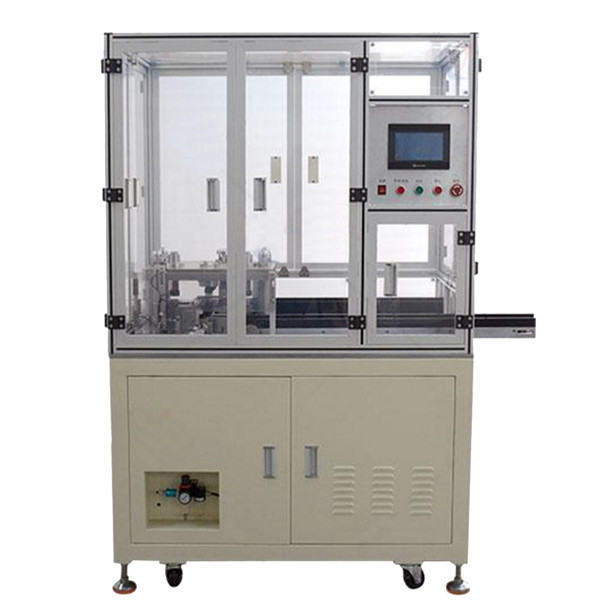

Auto 18650 26650 32650 21700 Cell Cases Sealing Machine for

Cylindrical Battery Casings Crimping

It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.

Advanced Features:

·        Efficient batch loading/unloading mechanism with case feeding conveyor

·        Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable & consistent sealing quality

·        Crimping speed and pressure is adjustable

·        User-friendly human-machine interface with PLC touch screen control

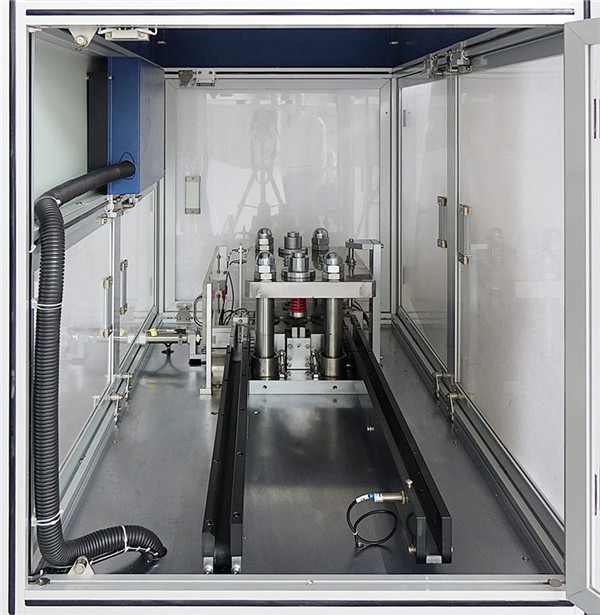

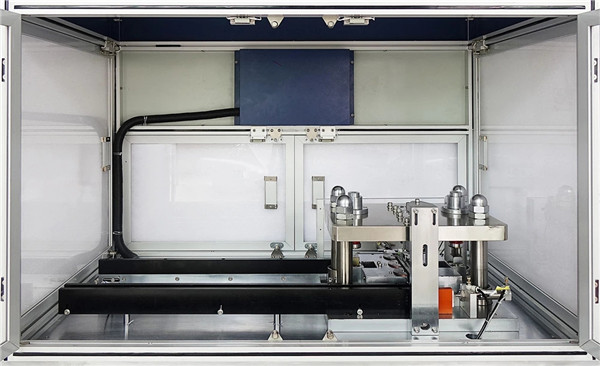

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment

Specifications：

Working Voltage	110/220V AC, 50/60Hz, three Phase
Max. Power Consumption	4KW
Driving Force	Penumatic, 0.5 - 0.8 MPa compression gas is required
Compatibility	Standard crimping capability for 18650 case  Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.
Control	User-friendly HMI with PLC touch screen control ensures easy program setup
Crimping Force	Upto 6kgf/cm²
Productivity	·         30 pieces per minute ·         Material feeding conveyor is able to load upto 22 pcs per batch
Warranty	·         One year limited with lifetime support   ·         Parts rusted without regular cleaning and maintenance are not covered
Product Dimensions	W1200mm*D690mm*H1765mm
Net Weight	800 lbs
