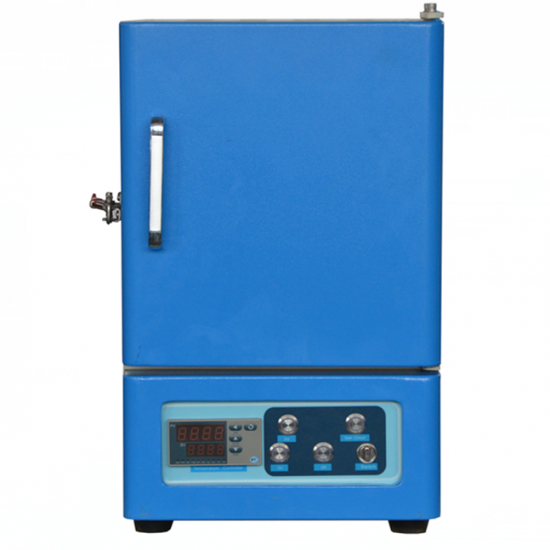

Lab Box Type 1.2KW High Temperature Mini Muffle Electric Furnace with K Type Thermocouple

This box furnace uses a resistance wire as a heating element, a double-shell structure and a Xiamen Yudian 30-stage program temperature control system. The furnace is made of alumina polycrystalline fiber material, and the double-layer furnace shell is equipped with an air-cooling system. Rapid temperature rise and fall, can reach 1000 degrees in 30 minutes, and has the functions of over temperature, broken couple, over current protection, etc. The furnace has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, energy saving, etc. It is a university, research institute. The industrial and mining enterprises are ideal products for high temperature sintering, metal annealing and quality testing.

UAV program temperature control instrument

1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1620 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning

Main technical parameters：
