Lab 6 Inches High Speed Vacuum Spin Coater with Vacuum Chunk

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com

Item NO.:
TMAX-4C-II
Payment:
L/C D/A D/P T/T Western Union
Shipping Port:
Xiamen Port
Lead Time：
5 days
Certificate:
CE Certified

Inquire Now

Product Detail

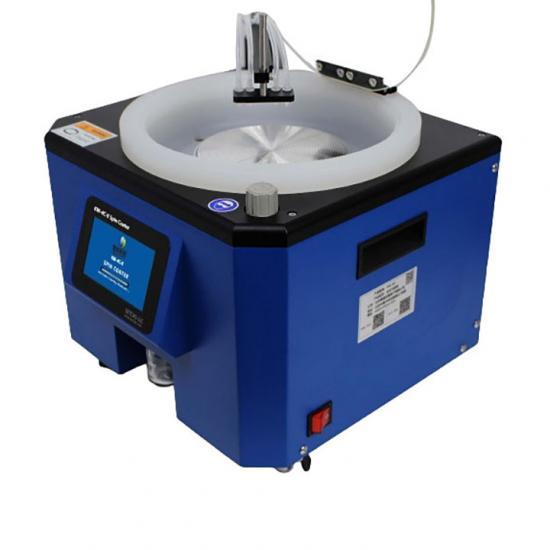

Lab 6 Inches High Speed Vacuum Spin Coater with Vacuum Chunk

Spin Coater

Key Features：

1. Anti-flying chip protection and alarm, formula with power-offprotection function

2. Anti-glue protection and alarm, integrated anti-glue system, supporting development system, and supporting anti-glue plate holder

3. The adsorption force is adjustable, can be displayed, and can be monitored in real time. If the adsorption force is insufficient, it will alarm, prohibit starting and stop immediately.

4. The motor can rotate forward and reversely

5. Adjustable acceleration (acceleration: 10- 10000RPM/S, speed range: 50- 12000RPM)

6. With communication interface: USB, external mouse and keyboard, transfer recipes through U disk

7. With cover opening protection function

8. Integrated 4-way glue application and development pipeline, with automatic swing arm, 2-way glue dispensing, and 2-way development

Spin Coater Specifications

Substrate size	5mm to 150mm（ 6 inches）
Speed range	50- 12000RPM
Acceleration range	10- 10000RPM/S， Adjustable
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Glue coating and developing system	Integrated 4-channel glue application and development management, standard 2-channel automatic glue application and development module
Human machine interface	4.3 inch touch screen
Communication interface	USB interface, can be connected to the wireless mouse and keyboard: the machine can be placed in the glove
Turn around	Can rotate forward and reverse
Stylus	Stylus BAMBOO resistance pen (standard)
Vacuum Pump	SC-550V
Set data	Unlimited group data, each group of 10 speeds (standard)
Seconds per period	0- 10000s
Storage data	Unlimited data
Data protection	With power-down protection function by default
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Adjustable vacuum adsorption force	Yes
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	200W
Pump power	350W
Dimensions(Spin Coater)	210mm(W)X220mm(D)X160mm(H)
Weight(Spin Coater)	10KG
Weight(Pump)	9KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year
