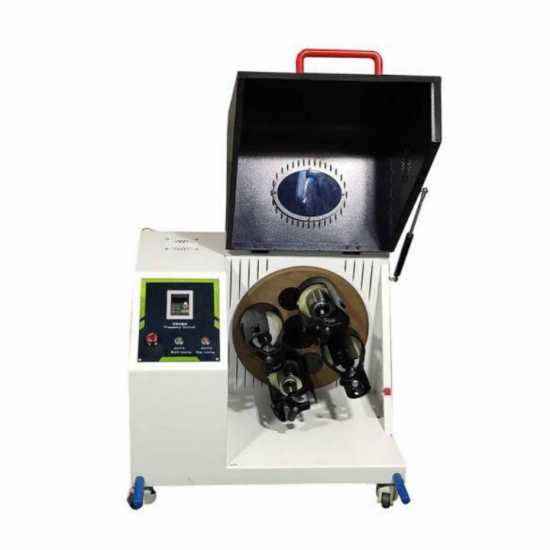

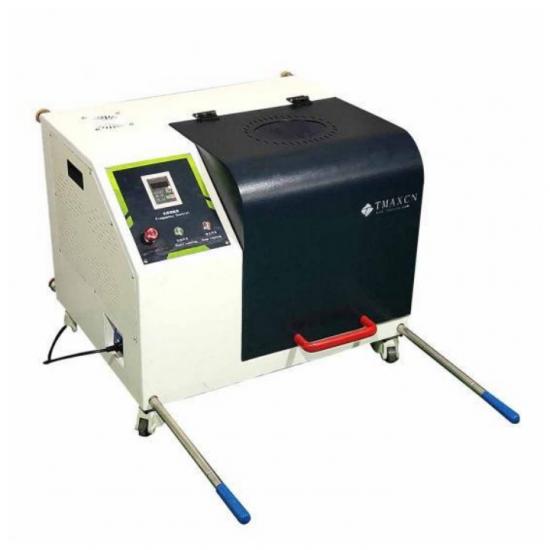

Lab 0.4L 1L 2L 4L Light Horizontal Small Planetary Ball Mill
Visual window
It is convenient to see the running status of the ball mill jar inside the ball mil.
Frequency conversion control
The ideal speed can be set according to the experimental requirements, the speed precision is high, the inverter has undervoltage, over current, overload protection, can be equipped with intelligent panel, easy to operate.

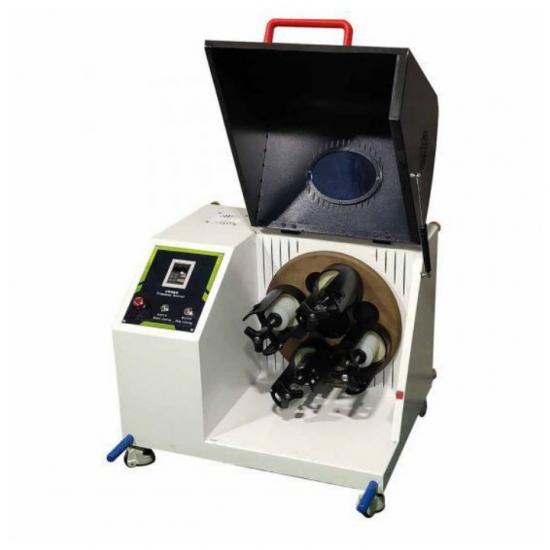

Planetary gear
Integral casting molding main plate, with manual relaxation locking device (optional automatic locking device), the appearance is very beautiful; Stable speed, high efficiency, good safety performance.
Cooling fan hole
High speed operation of the equipment, through a reasonable layout of the fan hole in and out, to achieve the external circulation of air flow inside and outside the equipment, effectively control the temperature rise in the equipment, improve the heat dissipation speed, protect the normal ball mill material, ensure the stability of the equipment.
A. Introduction
Light horizontal planetary ball mill is mainly aimed at the material proportion is bigger, easy to sink agglomerate and custom, the relative vertical transmission planetary ball mill into 90 ° structure, in the process of grinding materials, tank grinding balls and material in the revolution and rotation of two centrifugal force at the same time, influenced by their weights, speeding up the curve speed grinding balls and material without rules, and improve the effect of ball mill Efficiency. Can better solve the material part of the bottom, agglomeration plate problems. The light horizontal planetary ball mill has the advantages of simple structure and convenient operation, and is suitable for laboratory experiment and research of small batch samples.
B. Character
Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, metal heat treatment process of nitriding, can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure that the equipment run time at a high speed Smooth and quiet, can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the operation is convenient, safe and reliable, increase the handheld flip agencies, convenient user take pot and put the pot, more human operation, the product color shell, new vitality to products, and activate the product new life, in line with the international and domestic aesthetic demand, in line with the ergonomics.
C. Parameter
|
Mode of transmission
|
Gear transmission
|
|
Mode of working
|
Two and four ball grinding jars work simultaneously
|
|
Mode of transmission
|
Two thirds of the volume of the ball mill jar
|
|

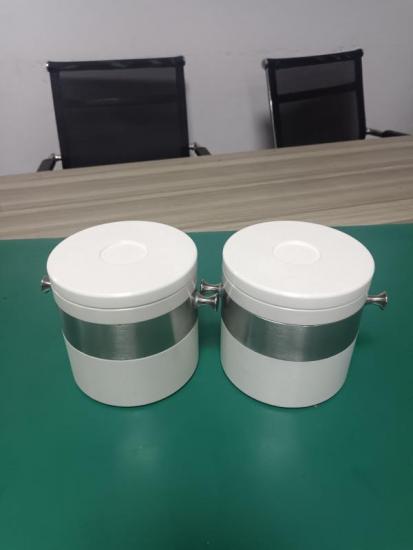

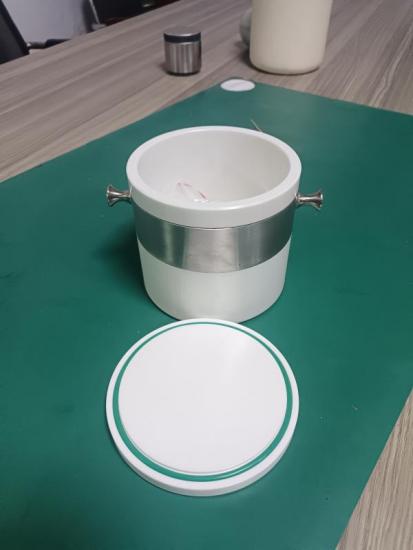

Ball mill tank volume
|
0.05-1L per jar, total volume 0.2-4L
|
|
Feed granularity
|
Soil material≤10mm, and other materials≤3mm
|
|
Granularity of discharge
|
Up to 1 micron
|
|
Mode of speed regulation
|
Infinitely adjustable-speed
|
|
Model
|
Volume(L)
|
Configurable ball mill specifications
|
Qty
|
Configurable vacuum ball mill volume
|
Locking device (optional automatic)
|
|
HPBM-0.4
|
0.4L
|
50-100ml
|
4
|
50ml
|
manual
|
|
HPBM-1
|
1L
|
50-250ml
|
4
|
50-100ml
|
manual
|
|
HPBM-2
|
2L
|
50-500ml
|
4
|
50-250ml
|
manual
|
|
HPBM-4
|
4L
|
250-1000L
|
4
|
50-500ml
|
manual
|
|
Model
|
Power supply (single-phase)
|
Power(kw)
|
Total time to run the set(min)
|
Alternating positive and negative running time(min)
|
Adjustable speed
Revolution(rpm) Rotation(rpm)
|
|
HPBM-0.4
|
Single phase 220V-50HZ
|
0.75
|
1-9999
|
1-9999
|
35-370
|
70-740
|
|
HPBM-1
|
Single phase 220V-50HZ
|
0.75
|
1-9999
|
1-9999
|
35-370
|
70-740
|
|
HPBM-2
|
Single phase 220V-50HZ
|
0.75
|
1-9999
|
1-9999
|
35-370
|
70-740
|
|
HPBM-4
|
Single phase 220V-50HZ
|
0.75
|
1-9999
|
1-9999
|
35-370
|
70-740
|
|
Model
|
Standard panel (optional intelligent, touch screen)
|
Lubrication way
|
Mode of speed regulation
|
Weight(kg)
|
Size(Length * width * height)
|
Noise≤db
|
|
HPBM-0.4
|
ordinary
|
grease
|
Frequency control
|
88
|
720*570*530
|
55±5
|
|
HPBM-1
|
ordinary
|
grease
|
Frequency control
|
90
|
720*570*530
|
60±5
|
|
HPBM-2
|
ordinary
|
grease
|
Frequency control
|
90
|
720*570*530
|
60±5
|
|
HPBM-4
|
ordinary
|
grease
|
Frequency control
|
92
|
720*570*530
|
60±5
|
