In-situ Prismatic Cell Gassing Solution

In-situ Multi-channel Battery Storage Gassing System

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-MSG2000

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

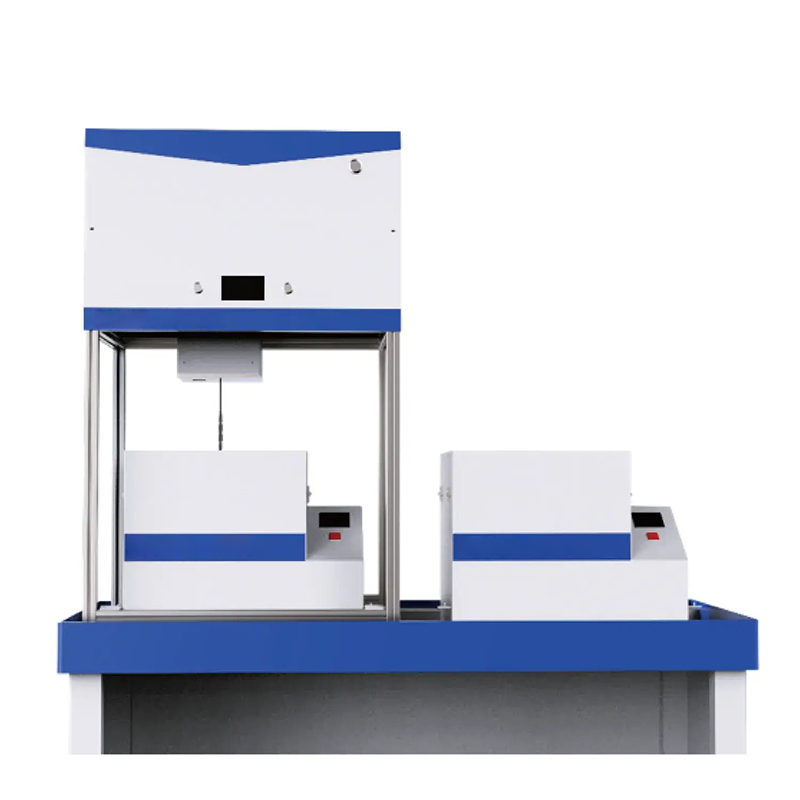

In-situ Multi-channel Battery Storage Gassing System



Characteristic

1. In-situ Storage Gassing testing for pouch cells
2. Multi-channel Testing (up to 64 channels)
3. Automatical Data Recording(volume, voltage and internal resistance)
4. Access to External Cyclers


Description

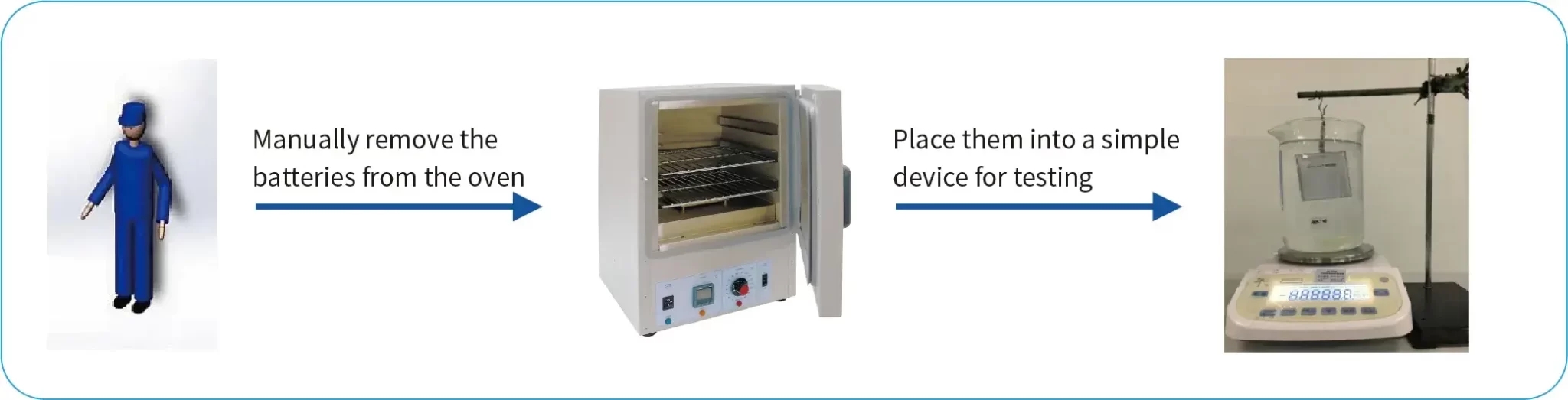

1. Disadvantages

1) The temperature changes duringthe process result in gas generation and testing losses.

2) Manual data recording may introduce errors, as data collection must be done manually.


Traditional – Oven & Balance Method  TMAX In-Situ Storage Method

Equipment Setup

Requires multiple devices: oven, voltmeter, balance, charging/discharging equipment Integrated equipment

Equipment Functions

Temperature change, volume, voltage

Temperature change, volume, voltage, supplementary power

Volume Measurement Precision

Low precision, > 50μL

High precision, < 30μL

Operation Mode

Complicated, requires transferring cells multiple times

Simple, in-situ measurement, no transfer needed

Data Recording    Manual multiple recordings

Software automatic recording

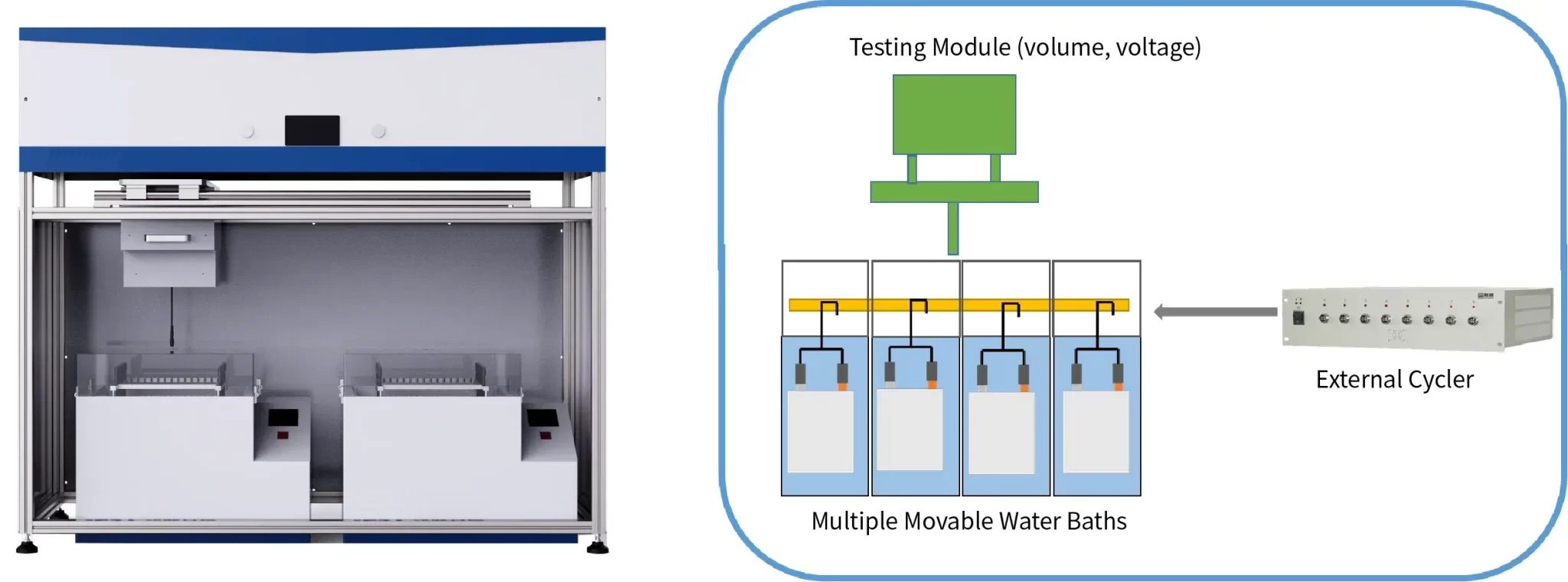

2. Features

1) In-situ Storage Gassing testing for pouch cells
2) Multi-channel Testing (up to 64 channels)
3) Automatical Data Recording(volume, voltage and internal resistance)

4) Access to External Cyclers
