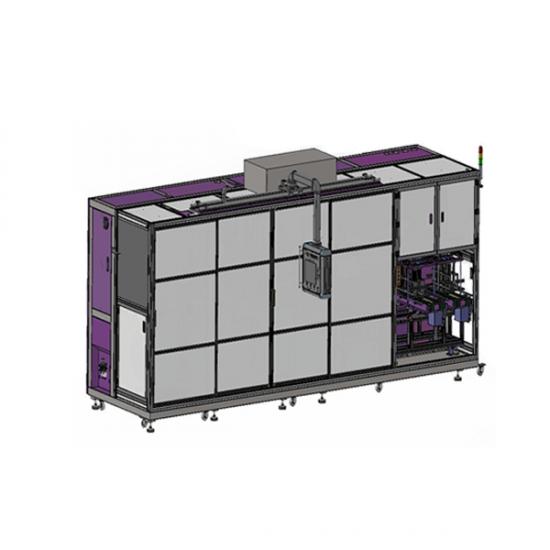

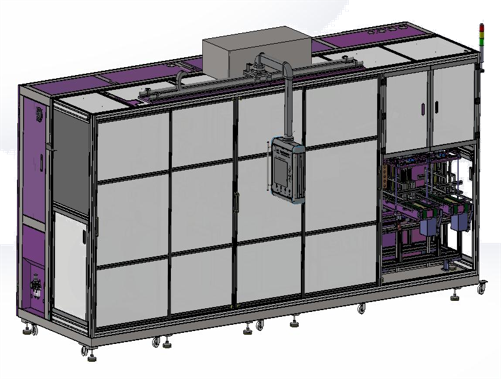

High-Speed Intermittent Coating and Die Cutting Machine

Features

1.Dual Unwinding Mechanism with Quick Roll Change, One for Operation and One for Backup.
2.Three Sets of Alignment Systems: Unwinding Alignment, In-Process Alignment, and Die Alignment, Ensuring Extreme Precision in Product Formation.
3.Tungsten Steel Blade Coordinate Grinder for Precise Machining, Hexagonal Pillar Guide from Japan for Extended Tooling Lifespan.
4.Dual-Sided Margin Detection, Servo Motor Automatically Adjusts Feed Length, Eliminating Coating Misalignment Error and Ensuring Precise Dimension of Product Tabs.
5.High-Speed Bidirectional Material Receiving with Dual-Motion Mechanical Arms.
6.Non-Contact Dust and Iron Removal, Eliminating Dust on Both Sides of Product Sheets.
7.Top-mounted FFU Fan for Air Supply, Industrial Dust Extraction System with Negative Pressure at Multiple Workstations such as Die Cutting and Material Receiving, Promoting Internal Air Circulation and Removing Airborne Particles.

 Specification

Project	Parameter
Production efficiency	>180PPM
Burr size	Vas12um ; Vbs12um
Deviation correction accuracy	≤±0.1mm
Slice forming accuracy	±0.2mm
Mold Life	1. After each mold repair, it can be used no less than 1.5 million times; 2. The number of times the mold can be repaired ≥ 10 times;
Material box receiving accuracy	±0.5mm
Qualification rate	≥ 99.8% (defects caused solely by the machine)
Crop growth rate	≥ 98% (faults caused solely by the machine)
Overall dimensions	W1750mm x L7000mm x H2350mm
Weight/bearing capacity	About 3000kg; >650Kg/M-2
Power	AC380V three-phase; Voltage fluctuation ± 10%; Power: 30KW; Frequency: 50Hz
Compressed air	0.5-0.7Mpa (5-7kgf/cm2), dosage 400L/min



Project	Parameter
Punching method	Metal mold punching
Material system	Continuous coating of electrode sheet coil material after slitting, with one side outlet lug
Roll diameter	≤ 600mm
Inner diameter of drum	3"/6"
Pole winding error	士3mm
Snake shaped bending error of polar plate	±1mm/m
Height difference of polar wave edge	<2mm
Pole width W	60~200mm
Pole length L	80~300mm
Pole ear length H	10~30mm
Pole ear edge distance Q	5-20mm
Pole ear width P	10~50mm
Pole ear belt material X	0~2mm
Round RB	2~5mm
Round corners RA	Inner rounded corner	Outer rounded corner

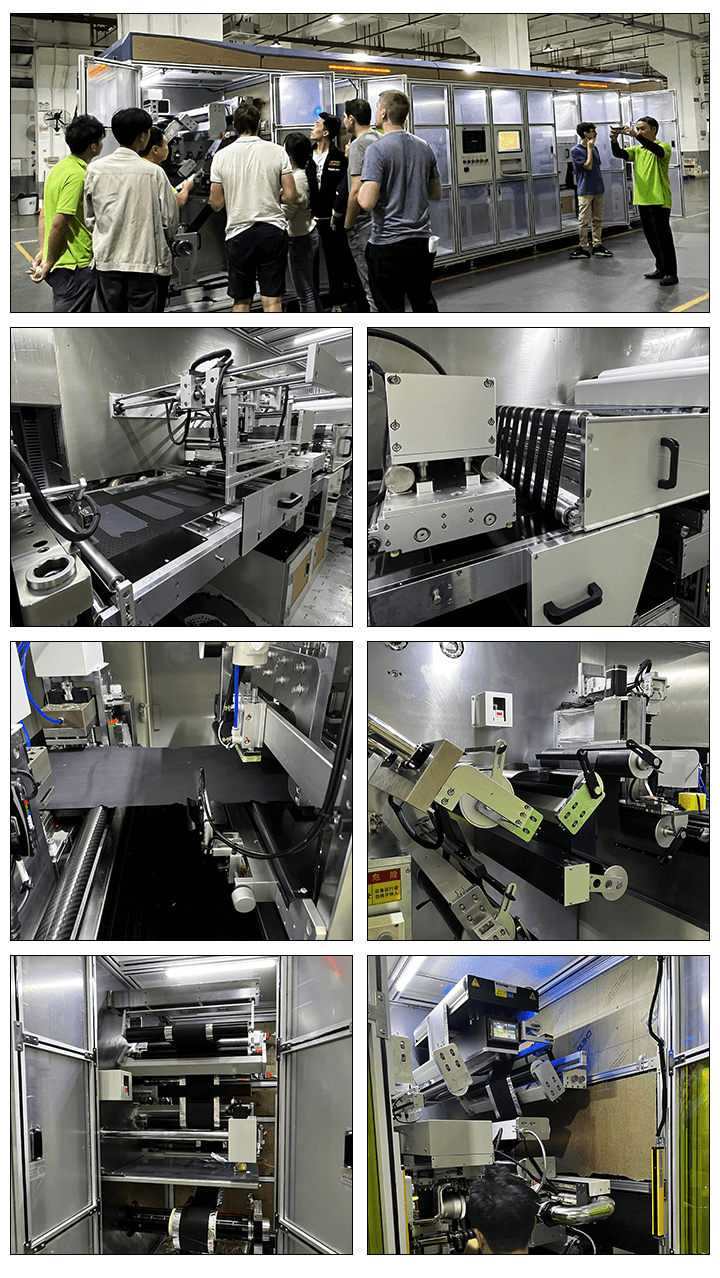

Production Assembly Plant
