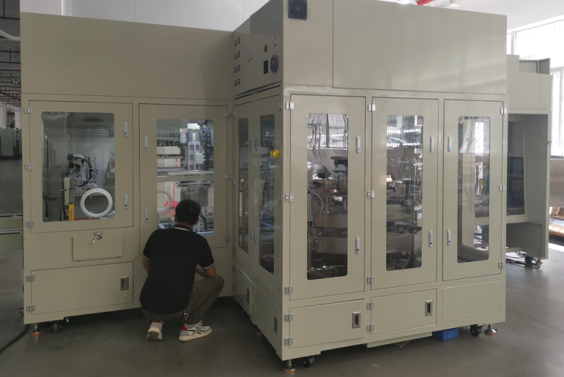

Electrolyte Filling Equipment For Prismatic Cell Manufacturing

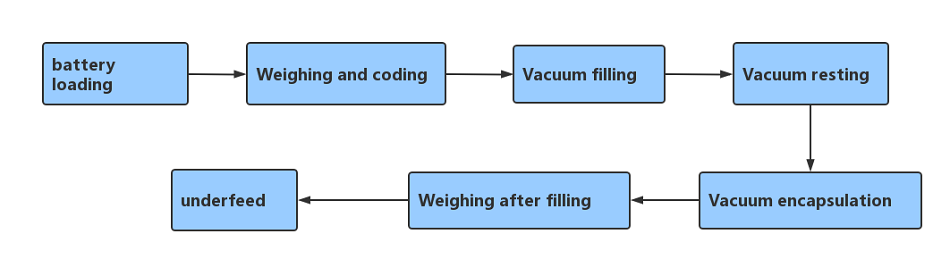

Workflow

Specification

Project	Parameters
Liquid injection method	Vacuum filling or atmospheric pressure filling
Sealing mode	Thermal sealing
Head temperature control accuracy	±3°C
Head working temperature range	170~200°C
Vacuum holding pressure	5KPA value change within 60S
Liquid injection accuracy	Liquid injection ≥125g ±8%; liquid injection <125g ±1g
Production efficiency	Model 150 ≥12ppm; Model 300 ≥8ppm
Qualification rate	≥99%
Crop rate	≥98%
Dimension	W8000 × L3000 x H2350mm
Weight/load	>650Kg/M2
Power supply	AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz
Compressed air	0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 600L/min

Model	TMAX-ZTHZYS-150	TMAX-ZTHZYX-300
Cell length	45~150mm	120~300mm
Cell width	35~100mm	80~200mm
Cell thickness	3~10mm	4~12mm
