Application: Binder for lithium ion battery positive electrode active material, generally mixed with NMP solvent

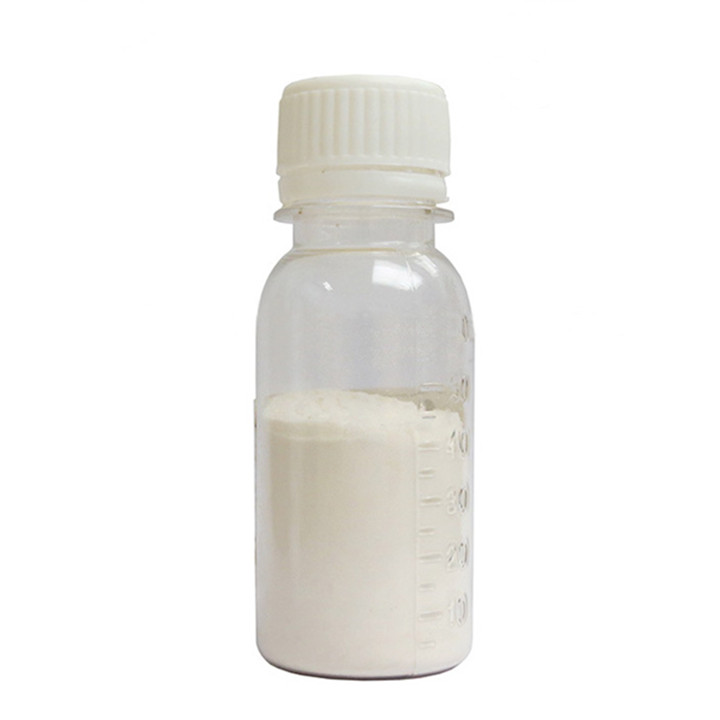

Appearance: White powder

Usage:
761A is a kind of powder - like polyvinyl fluoride product, which has good solubility in some solvents.
Compared with other brands of 761A, PVDF is more suitable as a lithium battery electrode binder material, less than similar products, thereby increasing the capacity of the battery.
761A is a kind of polymer material with high dielectric constant, which has high viscosity and adhesion in a certain solvent.
The lithium battery membrane electrode material made of 761A has good chemical stability, temperature stability and good workability.



Item	Unit	Test way	Stand
Purity	%	/	More than 99.9%
Density	g/cm3	D792	1.77-1.80
Melting point	℃	D3418	165-172
molecular weight	/	/	65-75
(230℃,5kg) / Melt Flow Index	g/10min	D3835	1-2
Characteristic viscosity	dl/g	DMA,30℃	1.0-2.0
Rotary viscometer	Mpa.s	1g/10ml NMP,30℃	>2500
solubility	/	NMP/DMP,30℃,1hr	clear solution
Shao Hardness	D	D2240	76-80
shrinking percentage	%	D955	2.0-3.0
Water absorption	%	D570	0.01-0.03
Thermal decomposition (1% Wt loos in air)	℃	TGA	370-390
