Electrolyte Wetting Testing System

Introduction

Combining the visual acquisition system and the capillary action of the electrolyte to evaluate the wetting differences of different electrodes, electrolytes, diaphragm formulations and processes.

Characteristic

1. Based on the principle of capillary diffusion of electrolyte in the electrodes and separators, quantitatively evaluate the difference in electrolyte infiltration;

2. Equipped with high-precision mechanical control and visual acquisition system, the test is stable and efficient;

3. Suitable for evaluation of infiltration differences of different electrodes, electrolytes, separator formulas and processes;

4. Characterize the infiltration rate of electrolyte in the sample in real time.

Application

1. Electrolyte: Performance Evaluation
2. Electrode: Consistency Assessment

3. Optimization of material: Electrode Surface Treatment Processes

Description

1. Principle of Electrode Wetting

The Lucas–Washburn Equation is commonly used to describe the dynamic of liquid absorption in electrode pores, as represented by the equation below:

1) r represents the radius of the capillary (m),
2) σ represents the surface tension of the imbibition fluid (N/m),
3) η represents the viscosity of the imbibition fluid (Pa*s),
4) θ represents the contact angle of the wet phase (°),
5) h represents the liquid suction height (m),
6) t represents the liquid suction time,

7) cr represents a fixed value, called the formal radius.

IEST Electrolyte Wetting Testing System Detail-3

2. Applications

1) Electrolyte: Performance Evaluation
2) Electrode: Consistency Assessment

3) Optimization of material: Electrode Surface Treatment Processes

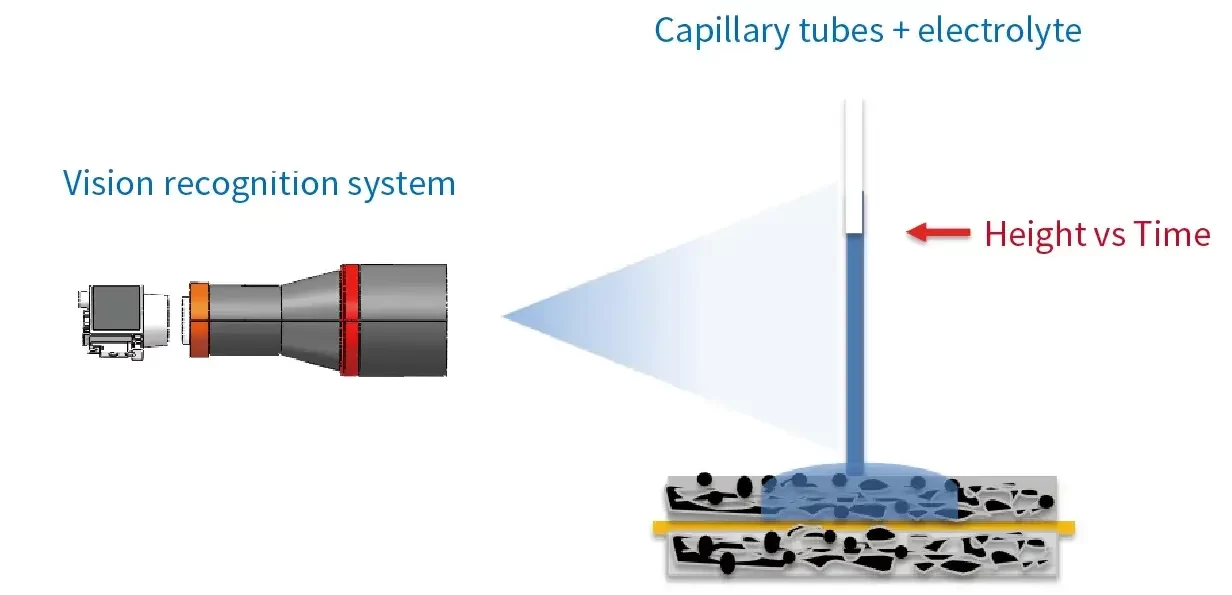

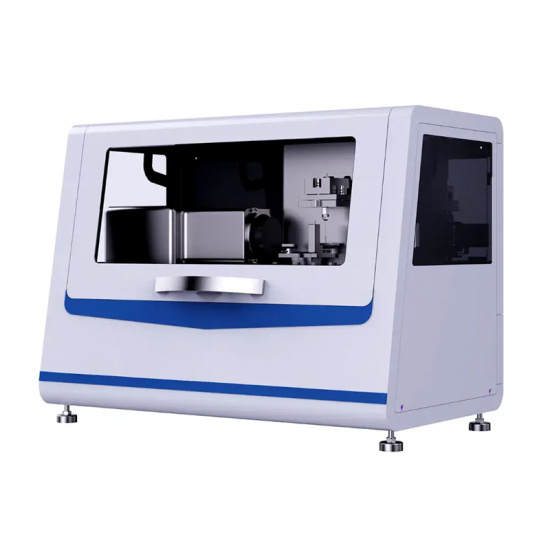

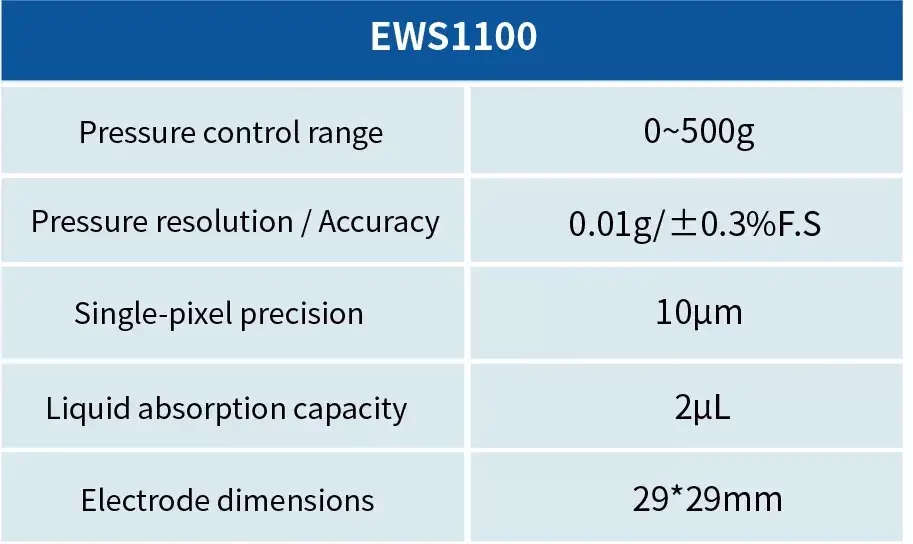

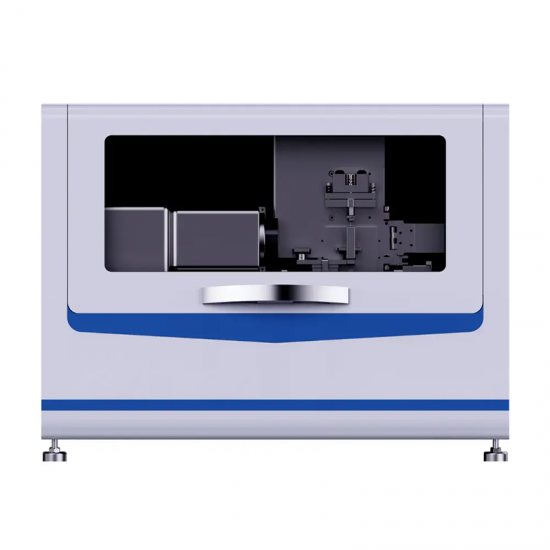

2.1 Capillary Wetting System-EWS Series

Key Features：

1) Equipped with a high-precision vision testing system for stable and efficient testing repeatability.
2) In-situ real-time characterization of electrolyte wetting rateon negative electrode sheets of lithium-ion batteries.
3) Applicable Samples: Negative electrode sheets.

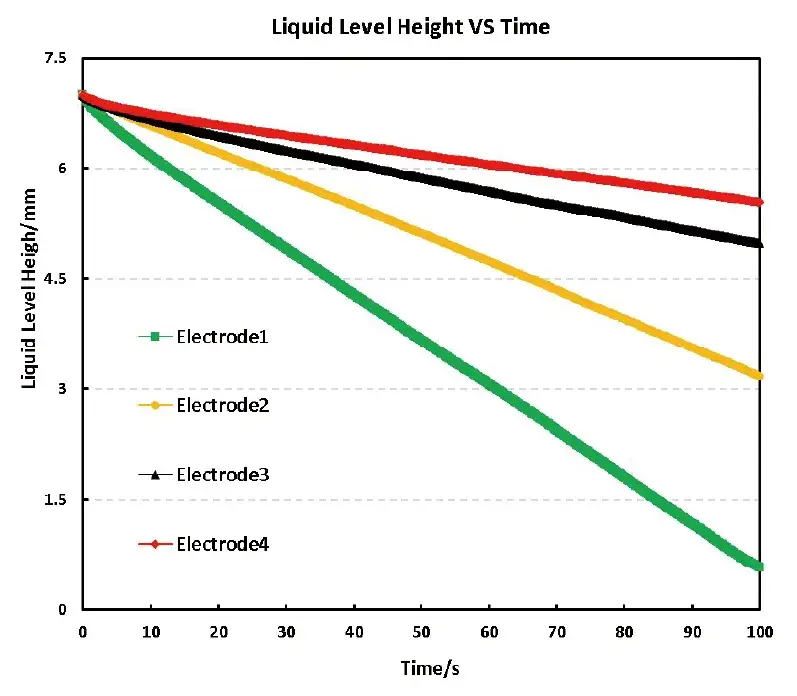

4) The greater the compacticion of the electrode sheet, the lower the porosity, resulting in poorer electrolyte wetting.

IEST Electrolyte Wetting Testing System Details-4

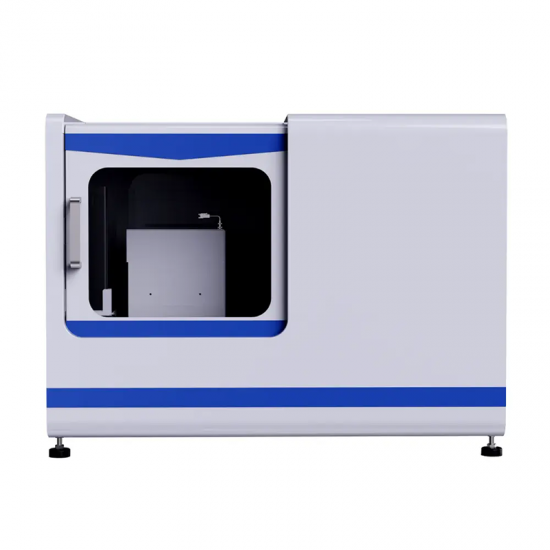

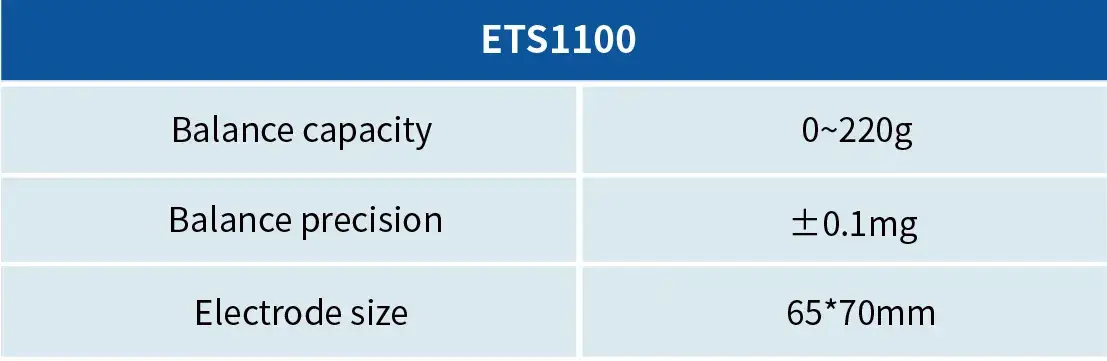

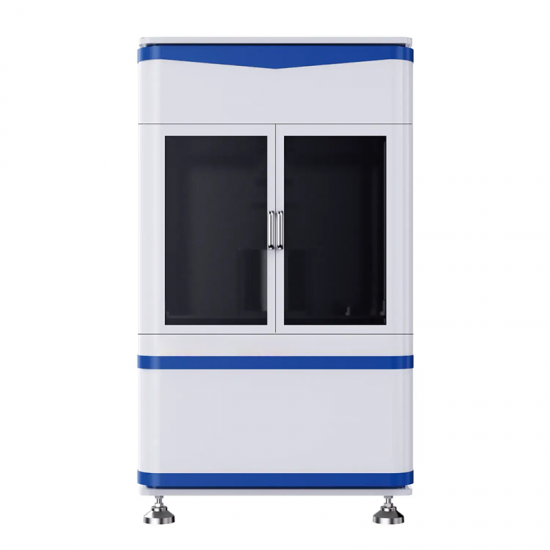

2.2 Weight Wetting System-ETS Series

Key Features：

1) Equipped with a high-precision weighing system for stable and efficient testing repeatability.
2) In-situ real-time characterization of electrolyte wetting rate on positive and negative electrode sheets of lithium-ion batteries.

3) Applicable samples: Anode electrodes & Jelly Cells

IEST Electrolyte Wetting Testing System Details-7

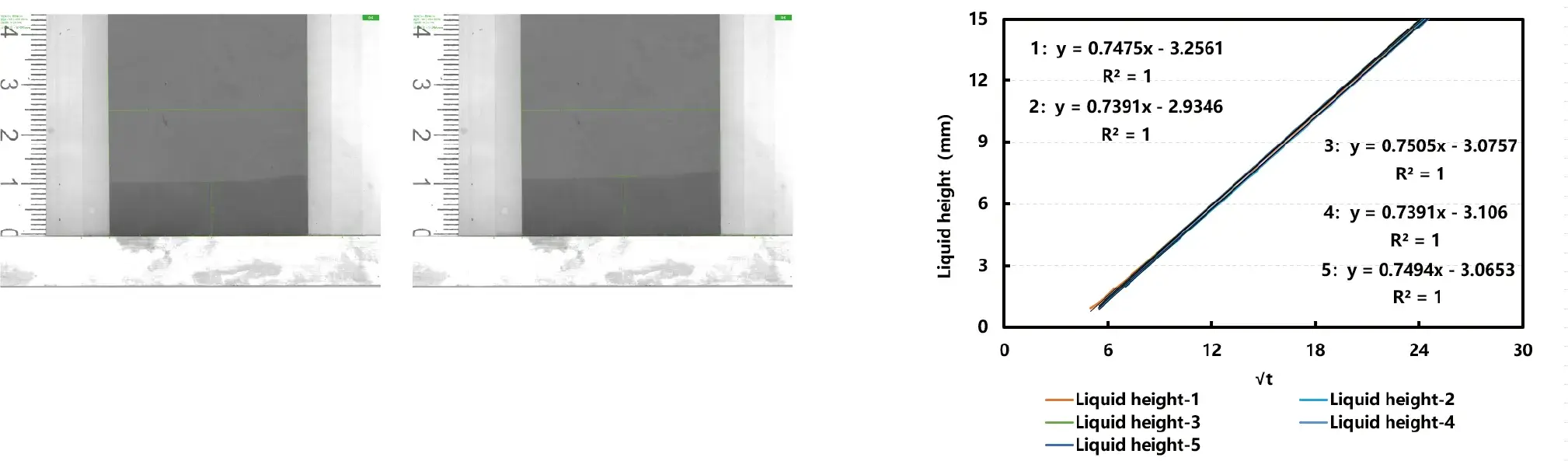

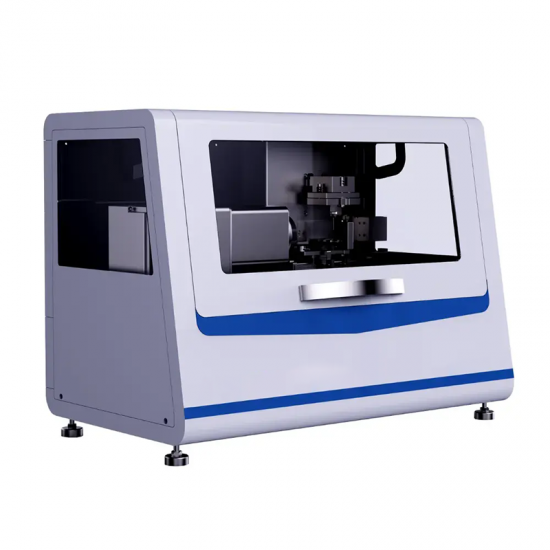

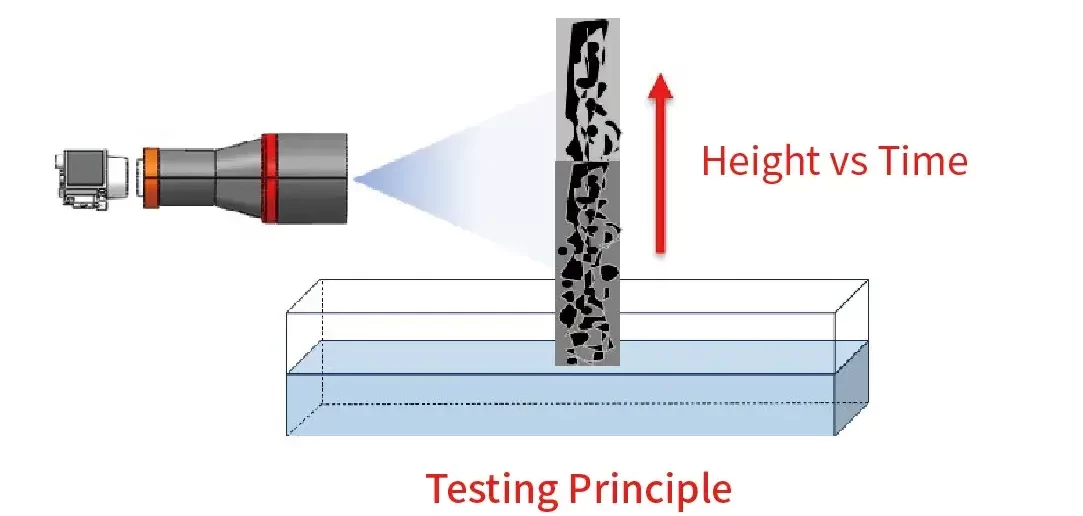

2.3. Height Wetting System-CHT Series

Key Features：

1) Equipped with a high-precision vision acquisition system for stable and efficient testing repeatability.
2) In-situ real-time characterization of electrolyte wetting rate on positive and negative electrode sheets of lithium-ion batteries.

3) Applicable samples: Anode electrodes

IEST Electrolyte Wetting Testing System Details-10
