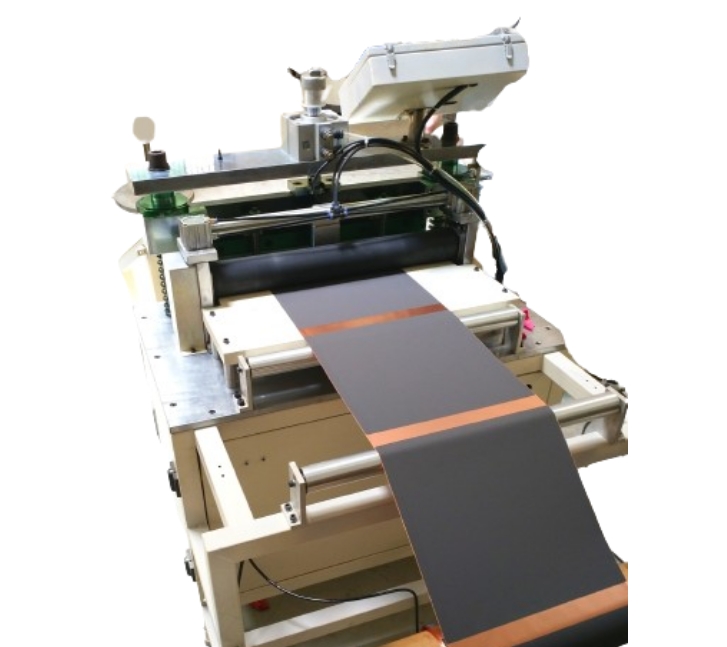

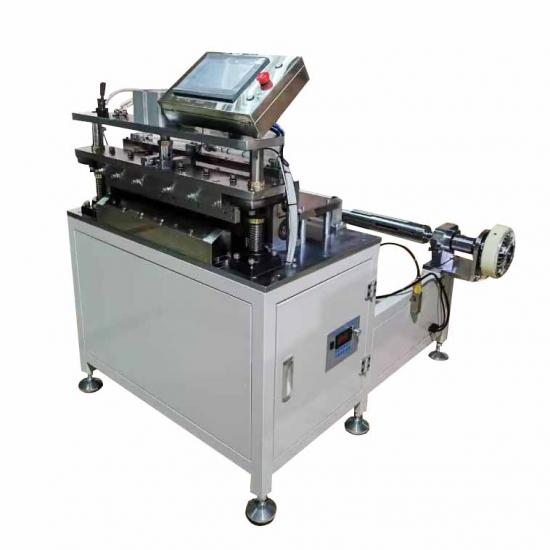

Electrode Sheet Cross Cutting Machine for Sodium-Ion Battery Research

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-CPJ-500
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Electrode Sheet Cross Cutting

Machine for Sodium-Ion Battery Research




I. Overview:
This machine is suitable for precise cutting of the fixed length and tracking of the coated cathode and anode rolls of secondary lithium-ion batteries (applicable for cutting after continuous or intermittent coating), resulting in neatly trimmed edges without burrs or powder detachment. It is an important piece of equipment in the production process of the lithium-ion battery industry.

II. Working Principle:
The machine unrolls the material using a tension controller and the stepping motor drives precision feed rollers to achieve fixed-length feeding. An imported high-accuracy color mark sensor ensures tracking and control for positioning and intermittent cutting, with the cylinder executing the cut.
This machine adopts an industry-original four-post guide and innovative tool design, effectively ensuring the cutting accuracy, stability, and service life. It is equipped with well-known brand components and PLC control, with a color touch screen for operation, providing a user-friendly interface and ease of use, and high control precision of cutting. It can set processing batches, quantity, and automatic stoppage upon completion of processing.



III. Specification

Maximum Power

1.5KW

Maximum Cutting Width

500mm

Fixed Length Accuracy

±0.3mm (up to ±0.1mm)

Cutting Length

1mm to 10M

Positioning Accuracy

±0.3mm

Cutting Speed

0 to 4000 cuts/hour

Machine Weight

Approximately 380Kg

Dimensions

L1000 × W1100 × H1000 (mm)

Casing Material

Galvanized steel plate with surface powder coating
