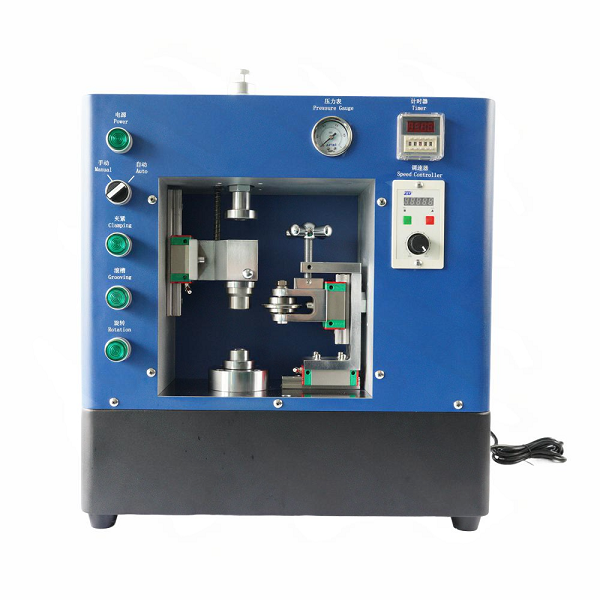

Cylindrical Cell Semi-Automatic Vertical Grooving Machine

Application
The TMAX-GC650L is a semi-automatic vertical cylindrical battery grooving machine specially designed for cylindrical battery production. It is primarily used to form sealing grooves on the battery casing, ensuring tight fitting between the battery cover and shell and enhancing sealing performance and overall safety.

Key Features
· Flexible compatibility: Supports multiple cylindrical cell specifications, with adjustable parameters to meet diverse production needs.
· High precision and efficiency: Grooving precision of ±0.1mm, with a throughput of up to 400 cells/hour, suitable for efficient mass production.
· Stable and reliable: Made with high-quality materials and components, ensuring long-term operational stability.
· User-friendly operation: Manual loading of batteries; grooving is automatically completed by the machine.

Technical Specifications

Parameter	Specification
Grooving Depth	1.2–2.0mm (adjustable)
Grooving Width	1.1–1.5mm (depending on cutter thickness)
Machining Accuracy	±0.1mm
Grooving Blade Lifespan	> 1 million cycles
Production Capacity	400 cells/hour (semi-automatic)
Power Supply	AC220V / 50Hz
Power Consumption	140W
Compressed Air	0.5MPa ~ 0.7MPa
Machine Dimensions	L490mm × W230mm × H560mm
Net Weight	40kg
