Coin Cell Compact Quick Assembly Battery Split Test Cell

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-HSTC-20
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

Coin Cell  Compact Quick Assembly Battery Split Test Cell


EQ-HSTC-20mm split-able test cell is designed for high-throughput R&D battery material testings without any Crimper

The smart design allows you to quickly and easily assemble a coin cell by hand tightening to increase research efficiency. It can be used for both liquid and solid state batteries.



Structure & Features

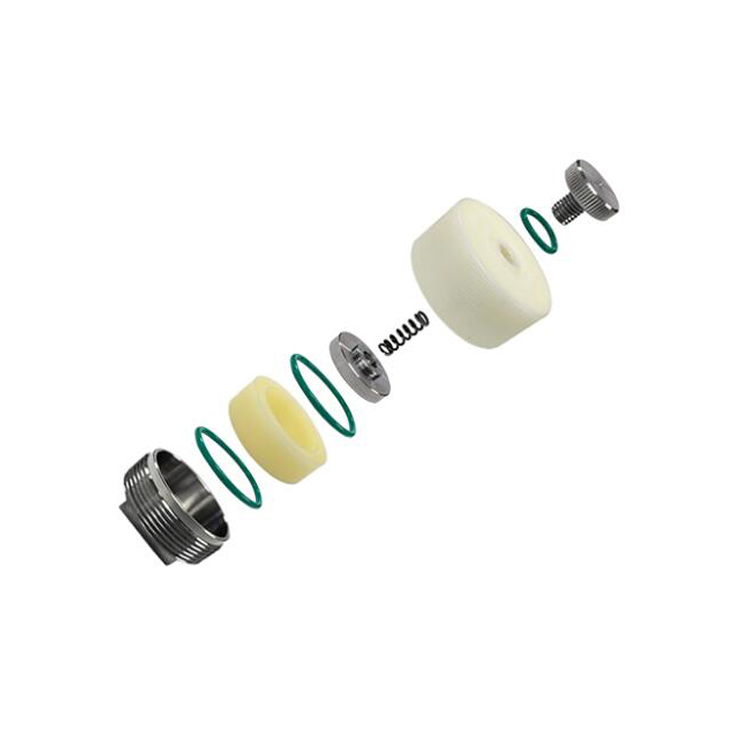

Easy cell assembling by "thread-in" the bottom contacting plate and top plunger into the Nylon body.

Stainless Steel contact plate and plunger. (Copper made contact plate and plunger are available with extra cost)

PTFE made sealing gaskets and Nylon body can well resist the chemical corrosion from electrolyte

Air-tight design ensures zero electrolyte leakage

Easy to separate and clean after use

Same functionality as "Swagelok Type Cell" but with more size options for electrode and separator.

Spacer inside the test cell to press down on the electrode and prevent the electrode from curling

Directly clamp on battery analyzer without wire connection for quick testing

Extending rod included for each electrode

Electrode Dia.

Standard 20mm ID

Insertion Thickness

max. thickness of the material can be inserted is upto 6mm

Working Temperature

Max. 100 ºC

Electrode Contact Coating (Optional)

Anti-corrosive Au coating on the base contact plunger and inserts is available upon request

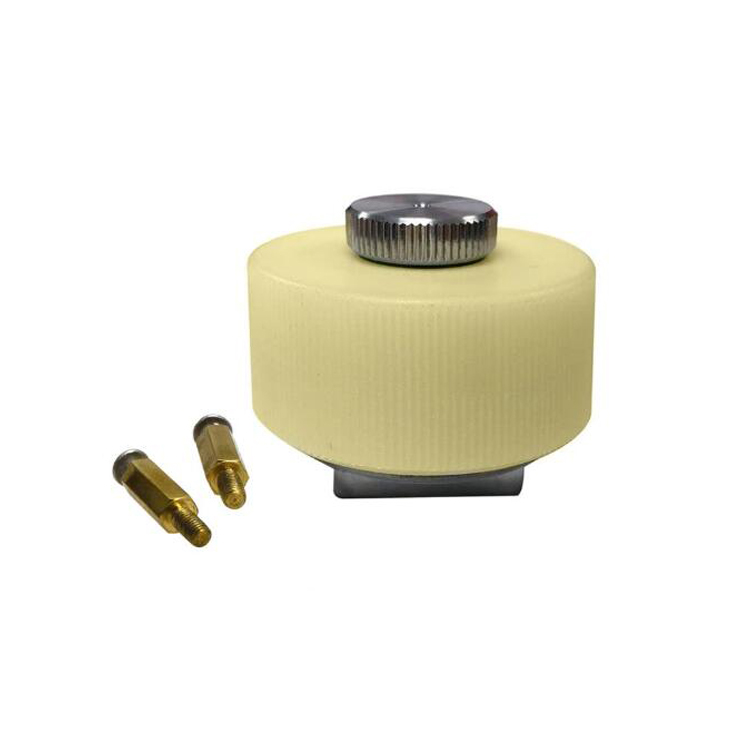

Split Test Cell

Split Test Cell
