8-Channels Split Coin Cell Kit for High-Throughput Testing

Wechat:17720812054

Whatsapp:+86 17720812054

Email:David@batterymaking.com


  • Item NO.:

    TMAX-EQ-HSC-8
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

8-Channels Split Coin Cell Kit for High-Throughput Testing


The 8 channel split coin cell kit is designed for high-throughput R&D battery materials testing and screening. With this testing kit, 8 split coin cells can be assembled independently with varying battery materials and tested parallelly by a multi-channel battery analyzer for comparison and time saving. This split coin cell kit can be easily tightened or de-assembled by a wrench. No coin cell Crimper is needed, saving user's time and cost.



SPECIFICATIONS

Model

EQ-HSC-8 Coin Cell Split Testing Kit

Structure & Features

1. 8 separated split coin cells can be assembled independently and tested parallelly for high-throughput R&D battery material testing and screening

2. Work greatly with a multi-channel battery analyzer for battery material comparison and time-saving

3. Stainless steel bottom contact plate and top plunger ensure good electrical conductivity

4. PTFE made sealing gaskets and Nylon body for good resistance to electrolyte corrosion

5. The air-tight design ensures zero electrolyte leakage

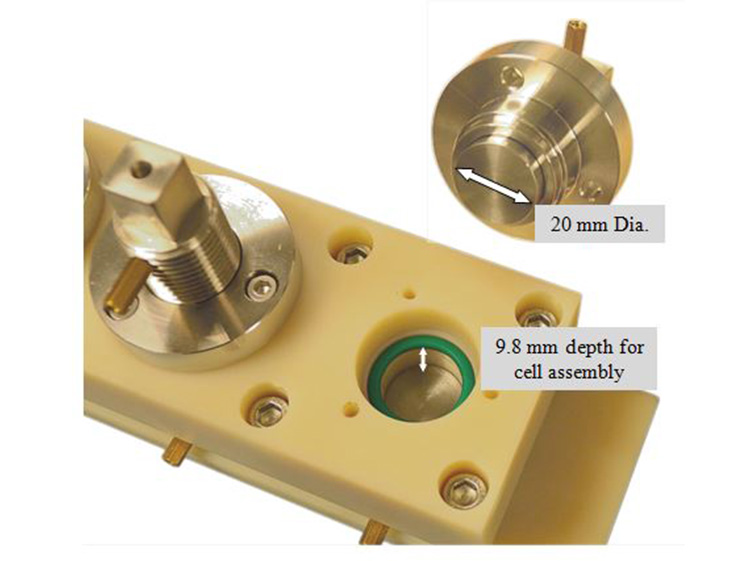

Electrode Diameter

Standard 20 mm ID

(5, 10, 12, and 15 mm ID versions are available upon request)

Working Temperature

Max. 100ºC

Note

The separator films, electrodes, electrolyte and etc. are NOT included

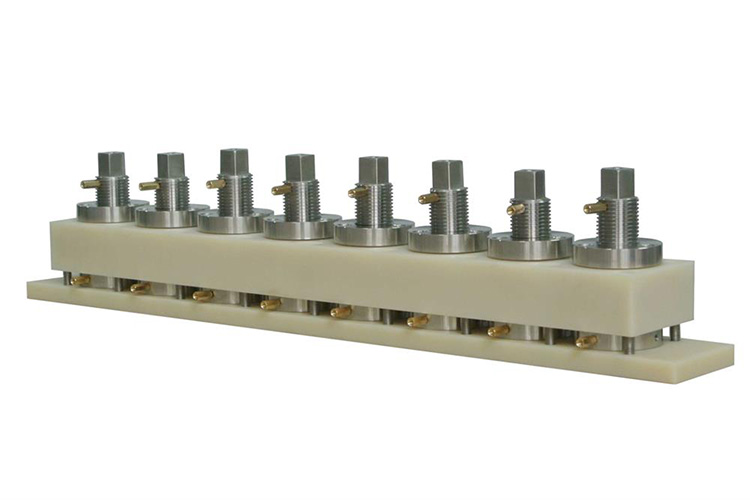

8 Channel Split Coin Cell Testing Kit
