Automatic Ultrasonic Cleaning and Air Drying Machine for Supercapacitors

Application

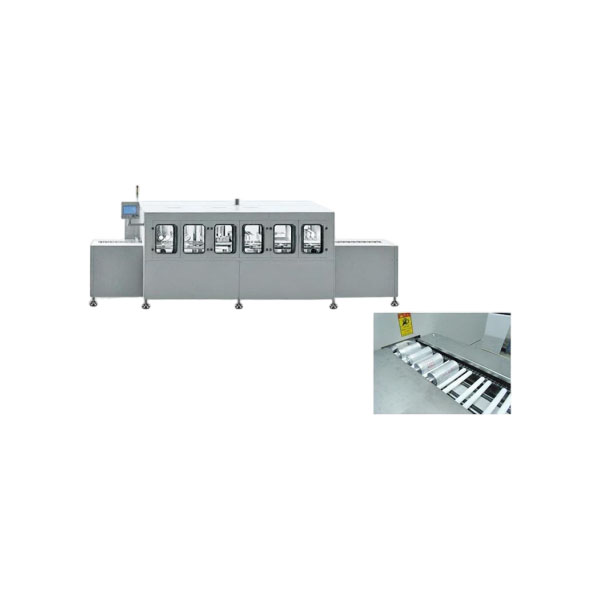

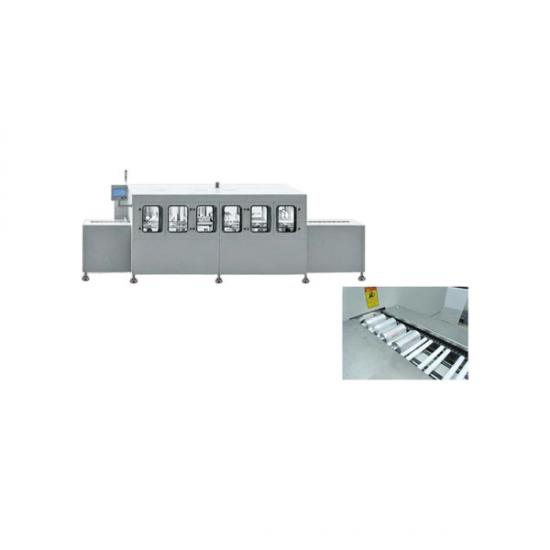

The Automatic Ultrasonic Cleaning Machine is a fully automated cleaning system engineered for dry-cell batteries and supercapacitors. It is perfectly suited for production lines demanding fast, thorough cleaning processes.

Key Features - Integrates in-line brush cleaning to effectively eliminate surface and end-face debris from cells. - Fitted with multiple high-pressure air nozzles that quickly expel water, boosting drying speed and efficiency. - Operates without cleaning agents—only regular water is required. - Controlled via PLC, with built-in fault alerts, energy-saving idle shutdown, and full safety safeguards for consistent, reliable performance. - Adaptable to clean batteries or capacitors ranging from 50–180 mm in length, offering flexible, user-friendly operation. - Built for high-volume, in-line cleaning and drying workflows. - Incorporates a low-power tubular hot-air heater to minimize energy use. - Uses a recirculating water system with overflow and filtration functions, enabling efficient resource recycling.

Technical Specifications

Parameter	Specification
Applicable Products	Cylindrical dry-cell batteries, supercapacitors (customizable)
Conveyor Speed	0.5–1 m/min (adjustable)
Output Capacity	> 6 pcs/min
Power Supply	380V ±10%, 50Hz, three-phase five-wire
Cleaning Diameter	Ø60 mm
Total Power Consumption	Approx. 55 kW
Compressed Air Pressure	0.4 MPa
Noise Level	≤ 85 dB (at 1.5 m from machine)
Machine Weight	Approx. 2 t
Machine Dimensions (L×W×H)	Approx. 5000 × 1700 × 2000 mm (subject to design)
Environmental Requirements	Temp: 5–35 °C; Relative Humidity: ≤ 80%
